Represents a Features::VehicleDesign::VehicleCoordinateSystem builder
To create a new instance of this class, use Features::VehicleDesignCollection::CreateVehicleCoordinateSystemBuilder

Created in NX7.0.0. More...

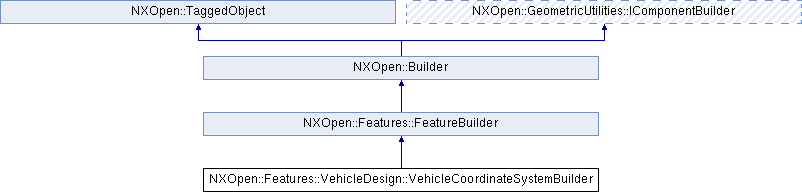

Inheritance diagram for NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder:

Public Types
enum	Types { TypesLengthWidthHeight, TypesWidthLengthHeight, TypesUserDefined }
	Vehicle Coordinate System type. More...

Public Member Functions
NXOpen::Point *	OriginPoint ()
	Returns the origin point.

void	SetOriginPoint (NXOpen::Point *originPoint)
	Sets the origin point.

void	SetType (NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::Types type)
	Sets the vehicle coordinate system type Created in NX7.0.0.

void	SetXAxis (NXOpen::Direction *xAxis)
	Sets the front to rear vector.

void	SetZAxis (NXOpen::Direction *zAxis)
	Sets the ground to roof vector.

NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::Types	Type ()
	Returns the vehicle coordinate system type Created in NX7.0.0.

NXOpen::Direction *	XAxis ()
	Returns the front to rear vector.

NXOpen::Direction *	ZAxis ()
	Returns the ground to roof vector.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::VehicleCoordinateSystem builder
To create a new instance of this class, use Features::VehicleDesignCollection::CreateVehicleCoordinateSystemBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::Types

Vehicle Coordinate System type.

Enumerator:

TypesLengthWidthHeight	General-GM.
TypesWidthLengthHeight	Nissan.
TypesUserDefined	User Defined.

Member Function Documentation

NXOpen::Point* NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::OriginPoint ( )

Returns the origin point.

It is only used when the type is set to Features::VehicleDesign::VehicleCoordinateSystemBuilder::TypesUserDefined .
Created in NX7.0.0.

License requirements : None

void NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::SetOriginPoint ( NXOpen::Point * originPoint )

Sets the origin point.

It is only used when the type is set to Features::VehicleDesign::VehicleCoordinateSystemBuilder::TypesUserDefined .
Created in NX7.0.0.

License requirements : nx_general_packaging ("NX General Packaging") OR ug_body_design ("Body Design") OR nx_posture ("NX Jack Posture Prediction")

Parameters

originPoint originpoint

void NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::SetType ( NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::Types type )

Sets the vehicle coordinate system type
Created in NX7.0.0.

License requirements : nx_general_packaging ("NX General Packaging") OR ug_body_design ("Body Design") OR nx_posture ("NX Jack Posture Prediction")

Parameters

type type

void NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::SetXAxis ( NXOpen::Direction * xAxis )

Sets the front to rear vector.

It is only used when the type is set to Features::VehicleDesign::VehicleCoordinateSystemBuilder::TypesUserDefined .
Created in NX7.0.0.

License requirements : nx_general_packaging ("NX General Packaging") OR ug_body_design ("Body Design") OR nx_posture ("NX Jack Posture Prediction")

Parameters

xAxis xaxis

void NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::SetZAxis ( NXOpen::Direction * zAxis )

Sets the ground to roof vector.

It is only used when the type is set to Features::VehicleDesign::VehicleCoordinateSystemBuilder::TypesUserDefined .
Created in NX7.0.0.

License requirements : nx_general_packaging ("NX General Packaging") OR ug_body_design ("Body Design") OR nx_posture ("NX Jack Posture Prediction")

Parameters

zAxis zaxis

NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::Types NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::Type ( )

Returns the vehicle coordinate system type
Created in NX7.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::XAxis ( )

Returns the front to rear vector.

It is only used when the type is set to Features::VehicleDesign::VehicleCoordinateSystemBuilder::TypesUserDefined .
Created in NX7.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::VehicleDesign::VehicleCoordinateSystemBuilder::ZAxis ( )

Returns the ground to roof vector.

It is only used when the type is set to Features::VehicleDesign::VehicleCoordinateSystemBuilder::TypesUserDefined .
Created in NX7.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_VehicleCoordinateSystemBuilder.hxx
