    Represents a @link Features::VehicleDesign::BumperPendulum Features::VehicleDesign::BumperPendulum@endlink  builder
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateBumperPendulumBuilder  Features::VehicleDesignCollection::CreateBumperPendulumBuilder @endlink  <br>

Default values. More...

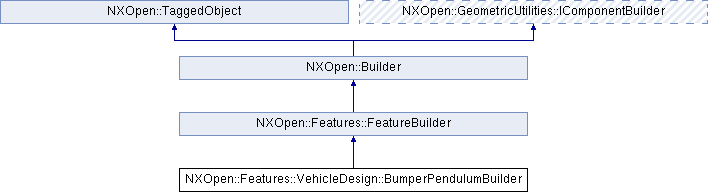

Inheritance diagram for NXOpen::Features::VehicleDesign::BumperPendulumBuilder:

Public Types
enum	RequirementsControlType { RequirementsControlTypeStandardDriven, RequirementsControlTypeUserDefined }
	Represents the requirements control types to define the bumper pendulum. More...

enum	VisualizationType { VisualizationTypeCurve, VisualizationTypeSurface, VisualizationTypeCurveandSurface }
	Represents the visualization types of the output. More...

Public Member Functions
NXOpen::ScCollector *	FrontCollector ()
	Returns the selected front body.

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder *	GetPendulum (int index)
	Get the selected pendulum.

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder *	GetPendulum (const NXString &description)
	Get the selected pendulum.

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder *	GetPendulum (const char *description)
	Get the selected pendulum.

NXOpen::ScCollector *	RearCollector ()
	Returns the selected rear body.

NXOpen::Features::VehicleDesign::BumperPendulumBuilder::RequirementsControlType	RequirementsControl ()
	Returns the requirements control for standard driven or user defined.

void	SetRequirementsControl (NXOpen::Features::VehicleDesign::BumperPendulumBuilder::RequirementsControlType requirement)
	Sets the requirements control for standard driven or user defined.

void	SetStandard (const NXString &standard)
	Sets the standard used to define the bumper pendulum.

void	SetStandard (const char *standard)
	Sets the standard used to define the bumper pendulum.

void	SetVisualization (NXOpen::Features::VehicleDesign::BumperPendulumBuilder::VisualizationType visualization)
	Sets the visualization type of the bumper pendulum output.

NXString	Standard ()
	Returns the standard used to define the bumper pendulum.

NXOpen::Features::VehicleDesign::BumperPendulumBuilder::VisualizationType	Visualization ()
	Returns the visualization type of the bumper pendulum output.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link Features::VehicleDesign::BumperPendulum Features::VehicleDesign::BumperPendulum@endlink  builder
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateBumperPendulumBuilder  Features::VehicleDesignCollection::CreateBumperPendulumBuilder @endlink  <br>

Default values.

Property

Value

RequirementsControl

StandardDriven

Visualization

Surface

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::BumperPendulumBuilder::RequirementsControlType

Represents the requirements control types to define the bumper pendulum.

Enumerator:

RequirementsControlTypeStandardDriven	standard driven
RequirementsControlTypeUserDefined	user defined

enum NXOpen::Features::VehicleDesign::BumperPendulumBuilder::VisualizationType

Represents the visualization types of the output.

Enumerator:

VisualizationTypeCurve	curve
VisualizationTypeSurface	surface
VisualizationTypeCurveandSurface	curveand surface

Member Function Documentation

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::BumperPendulumBuilder::FrontCollector ( )

Returns the selected front body.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder* NXOpen::Features::VehicleDesign::BumperPendulumBuilder::GetPendulum ( int index )

Get the selected pendulum.

Returns: Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

index index

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder* NXOpen::Features::VehicleDesign::BumperPendulumBuilder::GetPendulum ( const NXString & description )

Get the selected pendulum.

Returns: Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

description NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder* NXOpen::Features::VehicleDesign::BumperPendulumBuilder::GetPendulum ( const char * description )

Get the selected pendulum.

Returns: Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

description NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::BumperPendulumBuilder::RearCollector ( )

Returns the selected rear body.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BumperPendulumBuilder::RequirementsControlType NXOpen::Features::VehicleDesign::BumperPendulumBuilder::RequirementsControl ( )

Returns the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BumperPendulumBuilder::SetRequirementsControl ( NXOpen::Features::VehicleDesign::BumperPendulumBuilder::RequirementsControlType requirement )

Sets the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

requirement requirement

void NXOpen::Features::VehicleDesign::BumperPendulumBuilder::SetStandard ( const NXString & standard )

Sets the standard used to define the bumper pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::BumperPendulumBuilder::SetStandard ( const char * standard )

Sets the standard used to define the bumper pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::BumperPendulumBuilder::SetVisualization ( NXOpen::Features::VehicleDesign::BumperPendulumBuilder::VisualizationType visualization )

Sets the visualization type of the bumper pendulum output.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

visualization visualization

NXString NXOpen::Features::VehicleDesign::BumperPendulumBuilder::Standard ( )

Returns the standard used to define the bumper pendulum.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BumperPendulumBuilder::VisualizationType NXOpen::Features::VehicleDesign::BumperPendulumBuilder::Visualization ( )

Returns the visualization type of the bumper pendulum output.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_BumperPendulumBuilder.hxx
