Represents a Features::VehicleDesign::BaseDataImportExportBuilder builder used to import and export expressions from and to a spreadsheet. More...

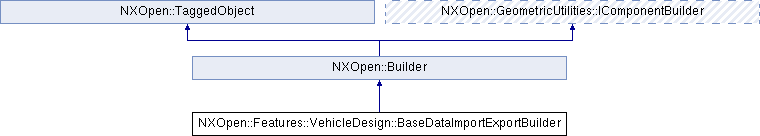

Inheritance diagram for NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder:

Public Types
enum	ExportOptions { ExportOptionsNewItem, ExportOptionsExistingItem }
	This enum represents the option to indicate if the expressions are to be exported to a new item or an existing item in Teamcenter. More...

enum	OperateOptions { OperateOptionsImport, OperateOptionsExport }
	This enum represents the import or export operate options. More...

Public Member Functions
void	AssignItemNumber (NXString itemId, NXString itemName, NXString itemRevision, bool idSensitivity, bool *revSensitivity)
	Used to assign Item number and revision in Teamcenter .

void	AssignItemRevision (const NXString &itemId, NXString itemRevision, bool revSensitivity)
	Used to assign Item revision in Teamcenter.

void	AssignItemRevision (const char itemId, NXString itemRevision, bool *revSensitivity)
	Used to assign Item revision in Teamcenter.

NXString	DatasetName ()
	Returns the name of the Teamcenter dataset from which the spreadsheet is to be imported from or exported to.

NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::ExportOptions	ExportOption ()
	Returns the option which indicates if the expressions are to be exported a new create item or an existing item in Teamcenter.

NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::OperateOptions	OperateOption ()
	Returns the option which indicates if the spreadsheet is to be imported or exported.

bool	OverrideExistingExpressions ()
	Returns the value which indicates whether to override existing expressions in the work part when importing.

void	SetDatasetName (const NXString &datasetName)
	Sets the name of the Teamcenter dataset from which the spreadsheet is to be imported from or exported to.

void	SetDatasetName (const char *datasetName)
	Sets the name of the Teamcenter dataset from which the spreadsheet is to be imported from or exported to.

void	SetExportOption (NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::ExportOptions exportOption)
	Sets the option which indicates if the expressions are to be exported a new create item or an existing item in Teamcenter.

void	SetOperateOption (NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::OperateOptions operateOptions)
	Sets the option which indicates if the spreadsheet is to be imported or exported.

void	SetOverrideExistingExpressions (bool overrideExistingExpressions)
	Sets the value which indicates whether to override existing expressions in the work part when importing.

void	SetSpreadSheetFileName (const NXString &spreadSheetFileName)
	Sets the spreadsheet name which indicates the spreadsheet to be imported or exported.

void	SetSpreadSheetFileName (const char *spreadSheetFileName)
	Sets the spreadsheet name which indicates the spreadsheet to be imported or exported.

void	SetSpreadsheetItemID (const NXString &spreadsheetItemID)
	Sets the item ID number which indicates the item that the spreadsheet is to be imported from or exported to.

void	SetSpreadsheetItemID (const char *spreadsheetItemID)
	Sets the item ID number which indicates the item that the spreadsheet is to be imported from or exported to.

void	SetSpreadsheetItemName (const NXString &spreadsheetItemName)
	Sets the item name of the spreadsheet in Teamcenter.

void	SetSpreadsheetItemName (const char *spreadsheetItemName)
	Sets the item name of the spreadsheet in Teamcenter.

void	SetSpreadsheetItemRevision (const NXString &spreadsheetItemRevision)
	Sets the item revision of the spreadsheet that is to be imported from or exported to.

void	SetSpreadsheetItemRevision (const char *spreadsheetItemRevision)
	Sets the item revision of the spreadsheet that is to be imported from or exported to.

NXString	SpreadSheetFileName ()
	Returns the spreadsheet name which indicates the spreadsheet to be imported or exported.

NXString	SpreadsheetItemID ()
	Returns the item ID number which indicates the item that the spreadsheet is to be imported from or exported to.

NXString	SpreadsheetItemName ()
	Returns the item name of the spreadsheet in Teamcenter.

NXString	SpreadsheetItemRevision ()
	Returns the item revision of the spreadsheet that is to be imported from or exported to.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::BaseDataImportExportBuilder builder used to import and export expressions from and to a spreadsheet.

To create a new instance of this class, use Features::VehicleDesignCollection::CreateBaseDataImportExportBuilder
Default values.

Property

Value

ExportOption

NewItem

OperateOption

Import

OverrideExistingExpressions

0

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::ExportOptions

This enum represents the option to indicate if the expressions are to be exported to a new item or an existing item in Teamcenter.

Enumerator:

ExportOptionsNewItem	new item
ExportOptionsExistingItem	existing item

enum NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::OperateOptions

This enum represents the import or export operate options.

Enumerator:

OperateOptionsImport	import
OperateOptionsExport	export

Member Function Documentation

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::AssignItemNumber	(	NXString *	itemId,
		NXString *	itemName,
		NXString *	itemRevision,
		bool *	idSensitivity,
		bool *	revSensitivity
	)

Used to assign Item number and revision in Teamcenter .

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

itemId	itemid
itemName	itemname
itemRevision	itemrevision
idSensitivity	idsensitivity
revSensitivity	revsensitivity

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::AssignItemRevision	(	const NXString &	itemId,
		NXString *	itemRevision,
		bool *	revSensitivity
	)

Used to assign Item revision in Teamcenter.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

itemId	NOTE: The full Unicode character set is not supported for this parameter.
itemRevision	itemrevision
revSensitivity	revsensitivity

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::AssignItemRevision	(	const char *	itemId,
		NXString *	itemRevision,
		bool *	revSensitivity
	)

Used to assign Item revision in Teamcenter.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

itemId	NOTE: The full Unicode character set is not supported for this parameter.
itemRevision	itemrevision
revSensitivity	revsensitivity

NXString NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::DatasetName ( )

Returns the name of the Teamcenter dataset from which the spreadsheet is to be imported from or exported to.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::ExportOptions NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::ExportOption ( )

Returns the option which indicates if the expressions are to be exported a new create item or an existing item in Teamcenter.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::OperateOptions NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::OperateOption ( )

Returns the option which indicates if the spreadsheet is to be imported or exported.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::OverrideExistingExpressions ( )

Returns the value which indicates whether to override existing expressions in the work part when importing.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetDatasetName ( const NXString & datasetName )

Sets the name of the Teamcenter dataset from which the spreadsheet is to be imported from or exported to.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

datasetName datasetname

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetDatasetName ( const char * datasetName )

Sets the name of the Teamcenter dataset from which the spreadsheet is to be imported from or exported to.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

datasetName datasetname

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetExportOption ( NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::ExportOptions exportOption )

Sets the option which indicates if the expressions are to be exported a new create item or an existing item in Teamcenter.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

exportOption exportoption

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetOperateOption ( NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::OperateOptions operateOptions )

Sets the option which indicates if the spreadsheet is to be imported or exported.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

operateOptions operateoptions

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetOverrideExistingExpressions ( bool overrideExistingExpressions )

Sets the value which indicates whether to override existing expressions in the work part when importing.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

overrideExistingExpressions overrideexistingexpressions

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetSpreadSheetFileName ( const NXString & spreadSheetFileName )

Sets the spreadsheet name which indicates the spreadsheet to be imported or exported.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

spreadSheetFileName spreadsheetfilename

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetSpreadSheetFileName ( const char * spreadSheetFileName )

Sets the spreadsheet name which indicates the spreadsheet to be imported or exported.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

spreadSheetFileName spreadsheetfilename

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetSpreadsheetItemID ( const NXString & spreadsheetItemID )

Sets the item ID number which indicates the item that the spreadsheet is to be imported from or exported to.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

spreadsheetItemID spreadsheetitemid

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetSpreadsheetItemID ( const char * spreadsheetItemID )

Sets the item ID number which indicates the item that the spreadsheet is to be imported from or exported to.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

spreadsheetItemID spreadsheetitemid

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetSpreadsheetItemName ( const NXString & spreadsheetItemName )

Sets the item name of the spreadsheet in Teamcenter.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

spreadsheetItemName spreadsheetitemname

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetSpreadsheetItemName ( const char * spreadsheetItemName )

Sets the item name of the spreadsheet in Teamcenter.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

spreadsheetItemName spreadsheetitemname

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetSpreadsheetItemRevision ( const NXString & spreadsheetItemRevision )

Sets the item revision of the spreadsheet that is to be imported from or exported to.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

spreadsheetItemRevision spreadsheetitemrevision

void NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SetSpreadsheetItemRevision ( const char * spreadsheetItemRevision )

Sets the item revision of the spreadsheet that is to be imported from or exported to.

Created in NX8.5.0.

License requirements : gateway ("UG GATEWAY")

Parameters

spreadsheetItemRevision spreadsheetitemrevision

NXString NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SpreadSheetFileName ( )

Returns the spreadsheet name which indicates the spreadsheet to be imported or exported.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SpreadsheetItemID ( )

Returns the item ID number which indicates the item that the spreadsheet is to be imported from or exported to.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SpreadsheetItemName ( )

Returns the item name of the spreadsheet in Teamcenter.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::BaseDataImportExportBuilder::SpreadsheetItemRevision ( )

Returns the item revision of the spreadsheet that is to be imported from or exported to.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_BaseDataImportExportBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
