Represents a Features::Subdivision::SubdivisionSetWeightBuilder builder. More...
Public Member Functions | |
| void | SetWeightPercent (int weightPercent) |
| Sets the value indicating percentage weight. | |
| NXOpen::Features::Subdivision::SelectCageObjectData * | TargetObject () |
| Returns the target object. | |
| int | WeightPercent () |
| Returns the value indicating percentage weight. | |

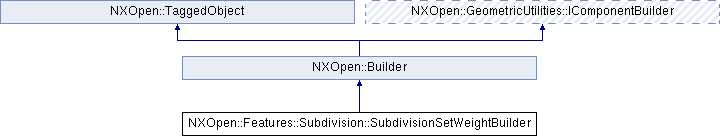

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Features::Subdivision::SubdivisionSetWeightBuilder builder.
To create a new instance of this class, use Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionSetWeightBuilder
Default values.
| Property | Value |
|---|---|
|
WeightPercent |
0 |
Created in NX9.0.0.
Member Function Documentation
| void NXOpen::Features::Subdivision::SubdivisionSetWeightBuilder::SetWeightPercent | ( | int | weightPercent | ) |
Sets the value indicating percentage weight.
Weight defines attraction of the limit surface towards cage topology.
Created in NX9.0.0.
License requirements : nx_subdivision (" NX SUBDIVISION")
- Parameters
-
weightPercent weightpercent
| NXOpen::Features::Subdivision::SelectCageObjectData* NXOpen::Features::Subdivision::SubdivisionSetWeightBuilder::TargetObject | ( | ) |
Returns the target object.
Created in NX9.0.0.
License requirements : None
| int NXOpen::Features::Subdivision::SubdivisionSetWeightBuilder::WeightPercent | ( | ) |
Returns the value indicating percentage weight.
Weight defines attraction of the limit surface towards cage topology.
Created in NX9.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_Subdivision_SubdivisionSetWeightBuilder.hxx
