NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder Class Reference

Represents a @link Features::Subdivision::SubdivisionProjectCageBuilder Features::Subdivision::SubdivisionProjectCageBuilder@endlink  builder  <br> To create a new instance of this class, use @link Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionProjectCageBuilder  Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionProjectCageBuilder @endlink  <br>

Default values. More...

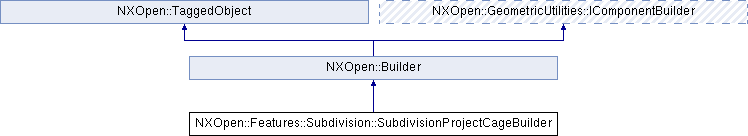

Inheritance diagram for NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder:

Public Types
enum	ModeOptions { ModeOptionsLinear, ModeOptionsPlanar }
	Best fit mode. More...
enum	TargetTypes {   TargetTypesInferredPlane, TargetTypesInferredAxis, TargetTypesYcZcPlane, TargetTypesXcZcPlane,   TargetTypesXcYcPlane, TargetTypesXcAxis, TargetTypesYcAxis, TargetTypesZcAxis,   TargetTypesObject }
	Target types. More...
enum	Types { TypesToTarget, TypesToAverage }
	The type of projection. More...

Public Member Functions
NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::ModeOptions	Mode ()
	Returns the mode Created in NX9.0.0.
NXOpen::Features::Subdivision::SelectCageObjectData *	ObjectsToProject ()
	Returns the objects to project Created in NX9.0.0.
void	SetMode (NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::ModeOptions mode)
	Sets the mode Created in NX9.0.0.
void	SetTargetType (NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::TargetTypes targetType)
	Sets the target type Created in NX9.0.0.
void	SetType (NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::Types type)
	Sets the type Created in NX9.0.0.
NXOpen::SelectDisplayableObject *	Target ()
	Returns the target Created in NX9.0.0.
NXOpen::Features::Subdivision::SelectCageObjectData *	TargetCageObjects ()
	Returns the target cage objects to infer a plane or axis from Created in NX9.0.0.
NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::TargetTypes	TargetType ()
	Returns the target type Created in NX9.0.0.
NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::Types	Type ()
	Returns the type Created in NX9.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::Subdivision::SubdivisionProjectCageBuilder Features::Subdivision::SubdivisionProjectCageBuilder@endlink  builder  <br> To create a new instance of this class, use @link Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionProjectCageBuilder  Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionProjectCageBuilder @endlink  <br>

Default values.

Property	Value
Mode	Planar
TargetType	InferredPlane

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::ModeOptions

Best fit mode.

Enumerator:

ModeOptionsLinear	Fit a line.
ModeOptionsPlanar	Fit a plane.

enum NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::TargetTypes

Target types.

Enumerator:

TargetTypesInferredPlane	inferred plane
TargetTypesInferredAxis	inferred axis
TargetTypesYcZcPlane	yc zc plane
TargetTypesXcZcPlane	xc zc plane
TargetTypesXcYcPlane	xc yc plane
TargetTypesXcAxis	xc axis
TargetTypesYcAxis	yc axis
TargetTypesZcAxis	zc axis
TargetTypesObject	object

enum NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::Types

The type of projection.

Enumerator:

TypesToTarget	Project on target.
TypesToAverage	Project using best fit plane or axis.

Member Function Documentation

NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::ModeOptions NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::Mode

(

)

Returns the mode
Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::SelectCageObjectData* NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::ObjectsToProject

(

)

Returns the objects to project
Created in NX9.0.0.

License requirements : None

void NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::SetMode

(

NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::ModeOptions

mode

)

Sets the mode
Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

mode

mode

void NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::SetTargetType

(

NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::TargetTypes

targetType

)

Sets the target type
Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

targetType

targettype

void NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::SetType

(

NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::Types

type

)

Sets the type
Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

type

type

NXOpen::SelectDisplayableObject* NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::Target

(

)

Returns the target
Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::SelectCageObjectData* NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::TargetCageObjects

(

)

Returns the target cage objects to infer a plane or axis from
Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::TargetTypes NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::TargetType

(

)

Returns the target type
Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::Types NXOpen::Features::Subdivision::SubdivisionProjectCageBuilder::Type

(

)

Returns the type
Created in NX9.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_Subdivision_SubdivisionProjectCageBuilder.hxx
