Represents a Features::Subdivision::SubdivisionExtrudeCageBuilder builder. More...

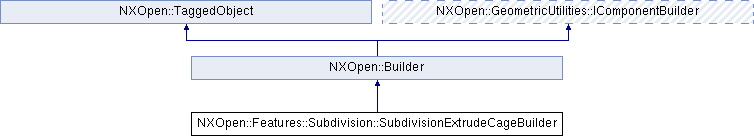

Inheritance diagram for NXOpen::Features::Subdivision::SubdivisionExtrudeCageBuilder:
Public Member Functions | |
| NXOpen::Expression * | Distance () |
| Returns the distance. | |
| void | Extrude () |
| Perform extrude operation. | |
| NXOpen::Features::Subdivision::SelectCageObjectData * | SelectionObject () |
| Returns the selection object. | |
 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Features::Subdivision::SubdivisionExtrudeCageBuilder builder.
To create a new instance of this class, use Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionExtrudeCageBuilder
Created in NX9.0.0.
Member Function Documentation
| NXOpen::Expression* NXOpen::Features::Subdivision::SubdivisionExtrudeCageBuilder::Distance | ( | ) |
Returns the distance.
Created in NX9.0.0.
License requirements : None
| void NXOpen::Features::Subdivision::SubdivisionExtrudeCageBuilder::Extrude | ( | ) |
Perform extrude operation.
Created in NX9.0.0.
License requirements : nx_subdivision (" NX SUBDIVISION")
| NXOpen::Features::Subdivision::SelectCageObjectData* NXOpen::Features::Subdivision::SubdivisionExtrudeCageBuilder::SelectionObject | ( | ) |
Returns the selection object.
Created in NX9.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_Subdivision_SubdivisionExtrudeCageBuilder.hxx
