Represents a Features::Subdivision::StartSymmetricModelingBuilder builder
To create a new instance of this class, use Features::Subdivision::SubdivisionBodyCollection::CreateStartSymmetricModelingBuilder

Created in NX9.0.0. More...

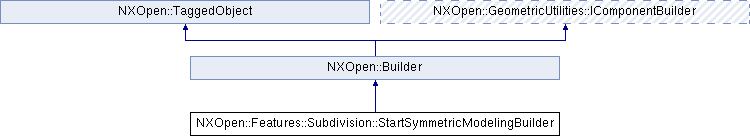

Inheritance diagram for NXOpen::Features::Subdivision::StartSymmetricModelingBuilder:

Public Types
enum	MirrorProcedureOption { MirrorProcedureOptionCutBody, MirrorProcedureOptionProjectEdge }
	The options used to establish symmetric model. More...

Public Member Functions
NXOpen::Features::Subdivision::SelectCageObjectData *	EdgesToProject ()
	Returns the edges to project Created in NX9.0.0.

NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::MirrorProcedureOption	MirrorProcedureOptions ()
	Returns the mirror procedure options Created in NX9.0.0.

NXOpen::Plane *	Plane ()
	Returns the plane Created in NX9.0.0.

void	SetMirrorProcedureOptions (NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::MirrorProcedureOption mirrorProcedureOptions)
	Sets the mirror procedure options Created in NX9.0.0.

void	SetPlane (NXOpen::Plane *plane)
	Sets the plane Created in NX9.0.0.

void	SetSwitchSide (bool switchSide)
	Sets the flag indicating if the mirror side should be switched Created in NX9.0.0.

bool	SwitchSide ()
	Returns the flag indicating if the mirror side should be switched Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::Subdivision::StartSymmetricModelingBuilder builder
To create a new instance of this class, use Features::Subdivision::SubdivisionBodyCollection::CreateStartSymmetricModelingBuilder

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::MirrorProcedureOption

The options used to establish symmetric model.

Enumerator:

MirrorProcedureOptionCutBody	Cuts the mesh.
MirrorProcedureOptionProjectEdge	Projects the edges.

Member Function Documentation

NXOpen::Features::Subdivision::SelectCageObjectData* NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::EdgesToProject ( )

Returns the edges to project
Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::MirrorProcedureOption NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::MirrorProcedureOptions ( )

Returns the mirror procedure options
Created in NX9.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::Plane ( )

Returns the plane
Created in NX9.0.0.

License requirements : None

void NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::SetMirrorProcedureOptions ( NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::MirrorProcedureOption mirrorProcedureOptions )

Sets the mirror procedure options
Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

mirrorProcedureOptions mirrorprocedureoptions

void NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::SetPlane ( NXOpen::Plane * plane )

Sets the plane
Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

plane plane

void NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::SetSwitchSide ( bool switchSide )

Sets the flag indicating if the mirror side should be switched
Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

switchSide switchside

bool NXOpen::Features::Subdivision::StartSymmetricModelingBuilder::SwitchSide ( )

Returns the flag indicating if the mirror side should be switched
Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_Subdivision_StartSymmetricModelingBuilder.hxx
