Studio Spline builder class. More...

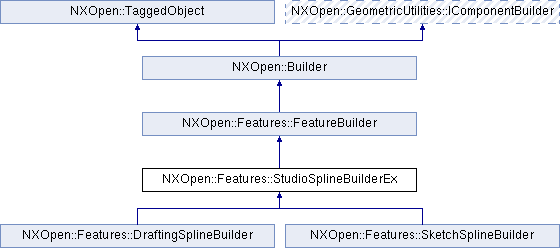

Inheritance diagram for NXOpen::Features::StudioSplineBuilderEx:

Public Types
enum	DrawingPlaneOptions { DrawingPlaneOptionsView, DrawingPlaneOptionsXY, DrawingPlaneOptionsYZ, DrawingPlaneOptionsXZ, DrawingPlaneOptionsGeneral }
	Drawing plane options. More...

enum	InputCurveOptions { InputCurveOptionsKeep, InputCurveOptionsHide, InputCurveOptionsDelete }
	Options of the actions to be taken on an input non-parametric spline after its editing is done. More...

enum	MatchKnotsTypes { MatchKnotsTypesNone, MatchKnotsTypesCubic, MatchKnotsTypesGeneral }
	Options for creating knots at the defining points in case of through point spline. More...

enum	MovementMethodType { MovementMethodTypeWCS, MovementMethodTypeView, MovementMethodTypeVector, MovementMethodTypePlane, MovementMethodTypeNormal, MovementMethodTypePolygon }
	Points movement types. More...

enum	Types { TypesThroughPoints, TypesByPoles }
	Spline methods. More...

enum	WCSOptionType { WCSOptionTypeX, WCSOptionTypeY, WCSOptionTypeZ, WCSOptionTypeYZ, WCSOptionTypeXZ, WCSOptionTypeXY }
	WCS principal axis or plane types. More...

Public Member Functions
bool	CanUseOrientationTool ()
	Returns the flag indicating if WCS like tool should be deployed when a point or pole handle is selected Created in NX8.5.1.

NXOpen::Features::GeometricConstraintDataManager *	ConstraintManager ()
	Returns the constraint manager Created in NX8.0.0.

NXOpen::CoordinateSystem *	ConstraintPlane ()
	Returns the coordinate system defining plane constraint Created in NX8.0.0.

NXOpen::Spline *	Curve ()
	Returns the spline curve Created in NX8.0.0.

int	Degree ()
	Returns the degree Created in NX8.0.0.

NXOpen::Plane *	DrawingPlane ()
	Returns the drawing plane Created in NX8.0.0.

NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions	DrawingPlaneOption ()
	Returns a drawing plane option Created in NX8.0.0.

void	EditSpline (NXOpen::NXObject *spline)
	Sets a non-parametric spline for editing Created in NX8.0.0.

void	Evaluate ()
	Evaluates the spline Created in NX8.0.0.

NXOpen::GeometricUtilities::SplineExtensionBuilder *	Extender ()
	Returns the extension option Created in NX8.0.0.

std::vector< double >	GetKnots ()
	Queries the knot sequence for by pole spline.

std::vector< double >	GetParameters ()
	Queries the parameters at defining points for a through point spline.

bool	HasPlaneConstraint ()
	Returns the flag indicating if spline has plane constraint Created in NX8.0.0.

bool	HasProportionalUpdate ()
	Returns the flag indicating if free or non attached defining points or poles should be moved proportionally during update of the spline feature Created in NX8.0.0.

NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions	InputCurveOption ()
	Returns the input curve option Created in NX8.0.0.

void	InsertKnot (const NXOpen::Point3d &point)
	Inserts knot at a closest point on the spline Created in NX8.0.0.

void	InsertPole (int afterIndex)
	Inserts a pole in the middle of a control polygon segment Created in NX8.0.0.

bool	IsAssociative ()
	Returns the flag indicating if a feature should be created Created in NX8.0.0.

bool	IsPeriodic ()
	Returns the periodicity Created in NX8.0.0.

bool	IsSingleSegment ()
	Returns a flag indicating if single segment by pole spline is to be created Created in NX8.0.0.

NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes	MatchKnotsType ()
	Returns a constraint to match knots at the defining points for a through point spline Created in NX8.0.0.

NXOpen::Features::StudioSplineBuilderEx::MovementMethodType	MovementMethod ()
	Returns the movement method Created in NX8.0.0.

NXOpen::Plane *	MovementPlane ()
	Returns the movement plane Created in NX8.0.0.

NXOpen::Direction *	MovementVector ()
	Returns the movement vector Created in NX8.0.0.

NXOpen::GeometricUtilities::OrientXpressBuilder *	OrientExpress ()
	Returns the orient express object Created in NX8.0.0.

void	SetAssociative (bool associative)
	Sets the flag indicating if a feature should be created Created in NX8.0.0.

void	SetCanUseOrientationTool (bool useOrientationTool)
	Sets the flag indicating if WCS like tool should be deployed when a point or pole handle is selected Created in NX8.5.1.

void	SetConstraintPlane (NXOpen::CoordinateSystem *coordinateSystem)
	Sets the coordinate system defining plane constraint Created in NX8.0.0.

void	SetDegree (int degree)
	Sets the degree Created in NX8.0.0.

void	SetDrawingPlane (NXOpen::Plane *drawingPlane)
	Sets the drawing plane Created in NX8.0.0.

void	SetDrawingPlaneOption (NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions planeOption)
	Sets a drawing plane option Created in NX8.0.0.

void	SetHasPlaneConstraint (bool hasConstraint)
	Sets the flag indicating if spline has plane constraint Created in NX8.0.0.

void	SetHasProportionalUpdate (bool hasProportionalUpdate)
	Sets the flag indicating if free or non attached defining points or poles should be moved proportionally during update of the spline feature Created in NX8.0.0.

void	SetInputCurveOption (NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions option)
	Sets the input curve option Created in NX8.0.0.

void	SetKnots (const std::vector< double > &knots)
	Sets the optional knot sequence for by pole spline Created in NX8.0.0.

void	SetMatchKnotsType (NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes matchKnotsType)
	Sets a constraint to match knots at the defining points for a through point spline Created in NX8.0.0.

void	SetMovementMethod (NXOpen::Features::StudioSplineBuilderEx::MovementMethodType movementMethod)
	Sets the movement method Created in NX8.0.0.

void	SetMovementPlane (NXOpen::Plane *movementPlane)
	Sets the movement plane Created in NX8.0.0.

void	SetMovementVector (NXOpen::Direction *movementVector)
	Sets the movement vector Created in NX8.0.0.

void	SetParameters (const std::vector< double > &parameters)
	Sets the optional parameters at defining points for a through point spline Created in NX8.0.0.

void	SetPeriodic (bool periodicity)
	Sets the periodicity Created in NX8.0.0.

void	SetSingleSegment (bool isSingleSegment)
	Sets a flag indicating if single segment by pole spline is to be created Created in NX8.0.0.

void	SetType (NXOpen::Features::StudioSplineBuilderEx::Types type)
	Sets the spline method Created in NX8.0.0.

void	SetWCSOption (NXOpen::Features::StudioSplineBuilderEx::WCSOptionType wcsOption)
	Sets the WCS option Created in NX8.0.0.

NXOpen::Features::StudioSplineBuilderEx::Types	Type ()
	Returns the spline method Created in NX8.0.0.

void	UpdateOnConstraintPlane ()
	Updates spline based on constraint plane Created in NX8.0.0.

NXOpen::Features::StudioSplineBuilderEx::WCSOptionType	WCSOption ()
	Returns the WCS option Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Studio Spline builder class.

To create a new instance of this class, use Features::FeatureCollection::CreateStudioSplineBuilderEx
Default values.

Property

Value

DrawingPlaneOption

View

Extender.EndExtensionOption

None

Extender.EndValue.Value

0 (millimeters part), 0 (inches part)

Extender.StartExtensionOption

None

Extender.StartValue.Value

0 (millimeters part), 0 (inches part)

InputCurveOption

Hide

MatchKnotsType

None

MovementMethod

View

Type

ThroughPoints

WCSOption

X

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions

Drawing plane options.

Enumerator:

DrawingPlaneOptionsView	View plane.
DrawingPlaneOptionsXY	XY plane.
DrawingPlaneOptionsYZ	YZ plane.
DrawingPlaneOptionsXZ	XZ plane.
DrawingPlaneOptionsGeneral	General plane.

enum NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions

Options of the actions to be taken on an input non-parametric spline after its editing is done.

These options are used only while trying to make non-parametric spline a feature.

Enumerator:

InputCurveOptionsKeep	Keep original curve.
InputCurveOptionsHide	Hide original curve.
InputCurveOptionsDelete	Delete original curve.

enum NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes

Options for creating knots at the defining points in case of through point spline.

Enumerator:

MatchKnotsTypesNone	No knot matching.
MatchKnotsTypesCubic	Match knots for cubic non-periodic spline.
MatchKnotsTypesGeneral	Match knots for general spline.

enum NXOpen::Features::StudioSplineBuilderEx::MovementMethodType

Points movement types.

Enumerator:

MovementMethodTypeWCS	Movement along WCS principal axis or plane.
MovementMethodTypeView	Movement in view plane.
MovementMethodTypeVector	Movement along arbitrary direction.
MovementMethodTypePlane	Movement in arbitrary plane.
MovementMethodTypeNormal	Movement along a face normal.
MovementMethodTypePolygon	Movement along a relevant control polygon segment.

enum NXOpen::Features::StudioSplineBuilderEx::Types

Spline methods.

Enumerator:

TypesThroughPoints	Spline through points.
TypesByPoles	Spline by poles.

enum NXOpen::Features::StudioSplineBuilderEx::WCSOptionType

WCS principal axis or plane types.

Enumerator:

WCSOptionTypeX	Along X axis.
WCSOptionTypeY	Along Y axis.
WCSOptionTypeZ	Along Z axis.
WCSOptionTypeYZ	In YZ plane.
WCSOptionTypeXZ	In XZ plane.
WCSOptionTypeXY	In XY plane.

Member Function Documentation

bool NXOpen::Features::StudioSplineBuilderEx::CanUseOrientationTool ( )

Returns the flag indicating if WCS like tool should be deployed when a point or pole handle is selected
Created in NX8.5.1.

License requirements : None

NXOpen::Features::GeometricConstraintDataManager* NXOpen::Features::StudioSplineBuilderEx::ConstraintManager ( )

Returns the constraint manager
Created in NX8.0.0.

License requirements : None

NXOpen::CoordinateSystem* NXOpen::Features::StudioSplineBuilderEx::ConstraintPlane ( )

Returns the coordinate system defining plane constraint
Created in NX8.0.0.

License requirements : None

NXOpen::Spline* NXOpen::Features::StudioSplineBuilderEx::Curve ( )

Returns the spline curve
Created in NX8.0.0.

License requirements : None

int NXOpen::Features::StudioSplineBuilderEx::Degree ( )

Returns the degree
Created in NX8.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::StudioSplineBuilderEx::DrawingPlane ( )

Returns the drawing plane
Created in NX8.0.0.

License requirements : None

NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOption ( )

Returns a drawing plane option
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::StudioSplineBuilderEx::EditSpline ( NXOpen::NXObject * spline )

Sets a non-parametric spline for editing
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

spline spline

void NXOpen::Features::StudioSplineBuilderEx::Evaluate ( )

Evaluates the spline
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

NXOpen::GeometricUtilities::SplineExtensionBuilder* NXOpen::Features::StudioSplineBuilderEx::Extender ( )

Returns the extension option
Created in NX8.0.0.

License requirements : None

std::vector<double> NXOpen::Features::StudioSplineBuilderEx::GetKnots ( )

Queries the knot sequence for by pole spline.

Returns: The knot sequence
Created in NX8.0.0.

License requirements : None

std::vector<double> NXOpen::Features::StudioSplineBuilderEx::GetParameters ( )

Queries the parameters at defining points for a through point spline.

Returns: The parameters
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::StudioSplineBuilderEx::HasPlaneConstraint ( )

Returns the flag indicating if spline has plane constraint
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::StudioSplineBuilderEx::HasProportionalUpdate ( )

Returns the flag indicating if free or non attached defining points or poles should be moved proportionally during update of the spline feature
Created in NX8.0.0.

License requirements : None

NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions NXOpen::Features::StudioSplineBuilderEx::InputCurveOption ( )

Returns the input curve option
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::StudioSplineBuilderEx::InsertKnot ( const NXOpen::Point3d & point )

Inserts knot at a closest point on the spline
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

point Point at which knot to be inserted

void NXOpen::Features::StudioSplineBuilderEx::InsertPole ( int afterIndex )

Inserts a pole in the middle of a control polygon segment
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

afterIndex Index of a pole after which to insert new pole

bool NXOpen::Features::StudioSplineBuilderEx::IsAssociative ( )

Returns the flag indicating if a feature should be created
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::StudioSplineBuilderEx::IsPeriodic ( )

Returns the periodicity
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::StudioSplineBuilderEx::IsSingleSegment ( )

Returns a flag indicating if single segment by pole spline is to be created
Created in NX8.0.0.

License requirements : None

NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes NXOpen::Features::StudioSplineBuilderEx::MatchKnotsType ( )

Returns a constraint to match knots at the defining points for a through point spline
Created in NX8.0.0.

License requirements : None

NXOpen::Features::StudioSplineBuilderEx::MovementMethodType NXOpen::Features::StudioSplineBuilderEx::MovementMethod ( )

Returns the movement method
Created in NX8.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::StudioSplineBuilderEx::MovementPlane ( )

Returns the movement plane
Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::StudioSplineBuilderEx::MovementVector ( )

Returns the movement vector
Created in NX8.0.0.

License requirements : None

NXOpen::GeometricUtilities::OrientXpressBuilder* NXOpen::Features::StudioSplineBuilderEx::OrientExpress ( )

Returns the orient express object
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::StudioSplineBuilderEx::SetAssociative ( bool associative )

Sets the flag indicating if a feature should be created
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

associative associative

void NXOpen::Features::StudioSplineBuilderEx::SetCanUseOrientationTool ( bool useOrientationTool )

Sets the flag indicating if WCS like tool should be deployed when a point or pole handle is selected
Created in NX8.5.1.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

useOrientationTool useorientationtool

void NXOpen::Features::StudioSplineBuilderEx::SetConstraintPlane ( NXOpen::CoordinateSystem * coordinateSystem )

Sets the coordinate system defining plane constraint
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

coordinateSystem coordinatesystem

void NXOpen::Features::StudioSplineBuilderEx::SetDegree ( int degree )

Sets the degree
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

degree degree

void NXOpen::Features::StudioSplineBuilderEx::SetDrawingPlane ( NXOpen::Plane * drawingPlane )

Sets the drawing plane
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

drawingPlane drawingplane

void NXOpen::Features::StudioSplineBuilderEx::SetDrawingPlaneOption ( NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions planeOption )

Sets a drawing plane option
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

planeOption planeoption

void NXOpen::Features::StudioSplineBuilderEx::SetHasPlaneConstraint ( bool hasConstraint )

Sets the flag indicating if spline has plane constraint
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

hasConstraint hasconstraint

void NXOpen::Features::StudioSplineBuilderEx::SetHasProportionalUpdate ( bool hasProportionalUpdate )

Sets the flag indicating if free or non attached defining points or poles should be moved proportionally during update of the spline feature
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

hasProportionalUpdate hasproportionalupdate

void NXOpen::Features::StudioSplineBuilderEx::SetInputCurveOption ( NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions option )

Sets the input curve option
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

option option

void NXOpen::Features::StudioSplineBuilderEx::SetKnots ( const std::vector< double > & knots )

Sets the optional knot sequence for by pole spline
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

knots The knot sequence

void NXOpen::Features::StudioSplineBuilderEx::SetMatchKnotsType ( NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes matchKnotsType )

Sets a constraint to match knots at the defining points for a through point spline
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

matchKnotsType matchknotstype

void NXOpen::Features::StudioSplineBuilderEx::SetMovementMethod ( NXOpen::Features::StudioSplineBuilderEx::MovementMethodType movementMethod )

Sets the movement method
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

movementMethod movementmethod

void NXOpen::Features::StudioSplineBuilderEx::SetMovementPlane ( NXOpen::Plane * movementPlane )

Sets the movement plane
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

movementPlane movementplane

void NXOpen::Features::StudioSplineBuilderEx::SetMovementVector ( NXOpen::Direction * movementVector )

Sets the movement vector
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

movementVector movementvector

void NXOpen::Features::StudioSplineBuilderEx::SetParameters ( const std::vector< double > & parameters )

Sets the optional parameters at defining points for a through point spline
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

parameters The parameters

void NXOpen::Features::StudioSplineBuilderEx::SetPeriodic ( bool periodicity )

Sets the periodicity
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

periodicity periodicity

void NXOpen::Features::StudioSplineBuilderEx::SetSingleSegment ( bool isSingleSegment )

Sets a flag indicating if single segment by pole spline is to be created
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

isSingleSegment issinglesegment

void NXOpen::Features::StudioSplineBuilderEx::SetType ( NXOpen::Features::StudioSplineBuilderEx::Types type )

Sets the spline method
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

type type

void NXOpen::Features::StudioSplineBuilderEx::SetWCSOption ( NXOpen::Features::StudioSplineBuilderEx::WCSOptionType wcsOption )

Sets the WCS option
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

Parameters

wcsOption wcsoption

NXOpen::Features::StudioSplineBuilderEx::Types NXOpen::Features::StudioSplineBuilderEx::Type ( )

Returns the spline method
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::StudioSplineBuilderEx::UpdateOnConstraintPlane ( )

Updates spline based on constraint plane
Created in NX8.0.0.

License requirements : features_modeling ("FEATURES MODELING") OR cam_base ("CAM BASE")

NXOpen::Features::StudioSplineBuilderEx::WCSOptionType NXOpen::Features::StudioSplineBuilderEx::WCSOption ( )

Returns the WCS option
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_StudioSplineBuilderEx.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
