NXOpen::Features::ShipDesign::VentilationHoles2Builder Class Reference

Represents a @link Features::ShipDesign::VentilationHoles2 Features::ShipDesign::VentilationHoles2@endlink  builder
 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateVentilationHoles2Builder  Features::ShipCollection::CreateVentilationHoles2Builder @endlink  <br>

Default values. More...

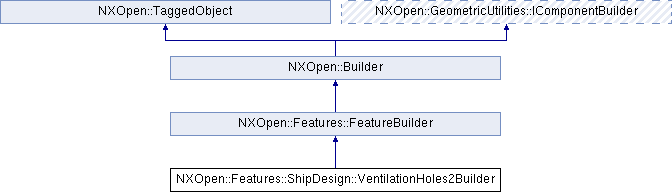

Inheritance diagram for NXOpen::Features::ShipDesign::VentilationHoles2Builder:

Public Types
enum	ArraySpacing { ArraySpacingEvenDistribution, ArraySpacingCustomDefined }
	available methods used to define the spacing between the holes More...

Public Member Functions
NXOpen::Expression *	AngularDimOffset ()
	Returns the angular dim offset Created in NX8.0.0.
NXOpen::Features::ShipDesign::VentilationHoles2Builder::ArraySpacing	EnumSpacing ()
	Returns the enum spacing Created in NX8.0.0.
NXOpen::Expression *	GuideOffset ()
	Returns the guide offset Created in NX8.0.0.
int	IntNumVents ()
	Returns the int num vents Created in NX8.0.0.
NXOpen::GeometricUtilities::OnPathDimensionBuilder *	OnPathEndOffset ()
	Returns the on path end offset Created in NX8.0.0.
NXOpen::GeometricUtilities::OnPathDimensionBuilder *	OnPathStartOffset ()
	Returns the on path start offset Created in NX8.0.0.
NXOpen::Section *	SectionGuide ()
	Returns the section guide Created in NX8.0.0.
NXOpen::SelectTaggedObject *	SelectEndTrim ()
	Returns the select end trim Created in NX8.0.0.
NXOpen::SelectTaggedObject *	SelectStartTrim ()
	Returns the select start trim Created in NX8.0.0.
NXOpen::SelectTaggedObjectList *	SelectTargetFace ()
	Returns the select target face Created in NX8.0.0.
void	SetEnumSpacing (NXOpen::Features::ShipDesign::VentilationHoles2Builder::ArraySpacing enumSpacing)
	Sets the enum spacing Created in NX8.0.0.
void	SetIntNumVents (int intNumVents)
	Sets the int num vents Created in NX8.0.0.
void	SetToggleSymmetricOffsets (bool toggleSymmetricOffsets)
	Sets the toggle symmetric offsets Created in NX8.0.0.
NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder *	SketchBlock ()
	Returns the sketch block.
bool	ToggleSymmetricOffsets ()
	Returns the toggle symmetric offsets Created in NX8.0.0.
NXOpen::Expression *	VentSpacing ()
	Returns the vent spacing Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::ShipDesign::VentilationHoles2 Features::ShipDesign::VentilationHoles2@endlink  builder
 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateVentilationHoles2Builder  Features::ShipCollection::CreateVentilationHoles2Builder @endlink  <br>

Default values.

Property	Value
AngularDimOffset.Value	0
EnumSpacing	EvenDistribution
GuideOffset.Value	0 (millimeters part), 0 (inches part)
IntNumVents	0
ToggleSymmetricOffsets	0
VentSpacing.Value	0 (millimeters part), 0 (inches part)

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::VentilationHoles2Builder::ArraySpacing

available methods used to define the spacing between the holes

Enumerator:

ArraySpacingEvenDistribution	Holes will automatically be spaced evenly along the length of the guide.
ArraySpacingCustomDefined	The user can specify a custom amount of space between the holes.

Member Function Documentation

NXOpen::Expression* NXOpen::Features::ShipDesign::VentilationHoles2Builder::AngularDimOffset

(

)

Returns the angular dim offset
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::VentilationHoles2Builder::ArraySpacing NXOpen::Features::ShipDesign::VentilationHoles2Builder::EnumSpacing

(

)

Returns the enum spacing
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::VentilationHoles2Builder::GuideOffset

(

)

Returns the guide offset
Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::VentilationHoles2Builder::IntNumVents

(

)

Returns the int num vents
Created in NX8.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::Features::ShipDesign::VentilationHoles2Builder::OnPathEndOffset

(

)

Returns the on path end offset
Created in NX8.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::Features::ShipDesign::VentilationHoles2Builder::OnPathStartOffset

(

)

Returns the on path start offset
Created in NX8.0.0.

License requirements : None

NXOpen::Section* NXOpen::Features::ShipDesign::VentilationHoles2Builder::SectionGuide

(

)

Returns the section guide
Created in NX8.0.0.

License requirements : None

NXOpen::SelectTaggedObject* NXOpen::Features::ShipDesign::VentilationHoles2Builder::SelectEndTrim

(

)

Returns the select end trim
Created in NX8.0.0.

License requirements : None

NXOpen::SelectTaggedObject* NXOpen::Features::ShipDesign::VentilationHoles2Builder::SelectStartTrim

(

)

Returns the select start trim
Created in NX8.0.0.

License requirements : None

NXOpen::SelectTaggedObjectList* NXOpen::Features::ShipDesign::VentilationHoles2Builder::SelectTargetFace

(

)

Returns the select target face
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::VentilationHoles2Builder::SetEnumSpacing

(

NXOpen::Features::ShipDesign::VentilationHoles2Builder::ArraySpacing

enumSpacing

)

Sets the enum spacing
Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

enumSpacing

enumspacing

void NXOpen::Features::ShipDesign::VentilationHoles2Builder::SetIntNumVents

(

int

intNumVents

)

Sets the int num vents
Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

intNumVents

intnumvents

void NXOpen::Features::ShipDesign::VentilationHoles2Builder::SetToggleSymmetricOffsets

(

bool

toggleSymmetricOffsets

)

Sets the toggle symmetric offsets
Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

toggleSymmetricOffsets

togglesymmetricoffsets

NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder* NXOpen::Features::ShipDesign::VentilationHoles2Builder::SketchBlock

(

)

Returns the sketch block.

        <br>
       Users can specify the hole shape using a single sketch. The sketch type and its parameters
       are controlled by the @link Features::ShipDesign::SteelFeatureSpreadsheetBuilder Features::ShipDesign::SteelFeatureSpreadsheetBuilder@endlink .
        <br>

Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::VentilationHoles2Builder::ToggleSymmetricOffsets

(

)

Returns the toggle symmetric offsets
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::VentilationHoles2Builder::VentSpacing

(

)

Returns the vent spacing
Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_VentilationHoles2Builder.hxx
