    Represents a @link Features::ShipDesign::UpdateShipLibrary Features::ShipDesign::UpdateShipLibrary@endlink  builder
     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateUpdateShipLibraryBuilder  Features::ShipCollection::CreateUpdateShipLibraryBuilder @endlink  <br>

Default values. More...

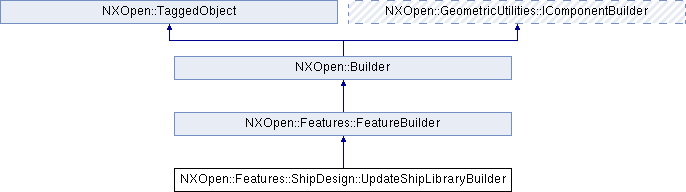

Inheritance diagram for NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder:

Public Types
enum	ShipLibAssemblyOption { ShipLibAssemblyOptionWorkPart, ShipLibAssemblyOptionWorkPartandComponents, ShipLibAssemblyOptionWorkPartandComponentswithLibraries }
	Assembly update library options. More...

enum	ShipLibOptionType { ShipLibOptionTypeProfile, ShipLibOptionTypeBelt, ShipLibOptionTypeCutout, ShipLibOptionTypeEndcut, ShipLibOptionTypeSupport, ShipLibOptionTypeSupportCap, ShipLibOptionTypeWeldOnEdge, ShipLibOptionTypeBracket, ShipLibOptionTypeWeldAlongEdge }
	Ship Library Types Note the weld along edge option is no longer used in NX7.5, and will be removed in NX8. More...

Public Member Functions
NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibAssemblyOption	AssemblyOptions ()
	Returns the assembly scope options.

NXString	FileBrowser ()
	Returns the file browser Created in NX5.3.0.

void	SetAssemblyOptions (NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibAssemblyOption assemblyOptions)
	Sets the assembly scope options.

void	SetFileBrowser (const NXString &filename)
	Sets the file browser Created in NX5.3.0.

void	SetFileBrowser (const char *filename)
	Sets the file browser Created in NX5.3.0.

void	SetShipLibType (NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibOptionType shipLibType)
	Sets the ship lib type Created in NX5.3.0.

NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibOptionType	ShipLibType ()
	Returns the ship lib type Created in NX5.3.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link Features::ShipDesign::UpdateShipLibrary Features::ShipDesign::UpdateShipLibrary@endlink  builder
     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateUpdateShipLibraryBuilder  Features::ShipCollection::CreateUpdateShipLibraryBuilder @endlink  <br>

Default values.

Property

Value

AssemblyOptions

WorkPart

ShipLibType

Profile

Created in NX5.3.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibAssemblyOption

Assembly update library options.

Enumerator:

ShipLibAssemblyOptionWorkPart	update the library in the current work part only
ShipLibAssemblyOptionWorkPartandComponents	update the library in the current work part and all of its components
ShipLibAssemblyOptionWorkPartandComponentswithLibraries	update any parts with existing libraries starting in the current work part and all of its components

enum NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibOptionType

Ship Library Types Note the weld along edge option is no longer used in NX7.5, and will be removed in NX8.

Enumerator:

ShipLibOptionTypeProfile	profile
ShipLibOptionTypeBelt	belt
ShipLibOptionTypeCutout	cutout
ShipLibOptionTypeEndcut	endcut
ShipLibOptionTypeSupport	support
ShipLibOptionTypeSupportCap	support cap
ShipLibOptionTypeWeldOnEdge	weld on edge
ShipLibOptionTypeBracket	bracket
ShipLibOptionTypeWeldAlongEdge	obsolete in NX7.5

Member Function Documentation

NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibAssemblyOption NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::AssemblyOptions ( )

Returns the assembly scope options.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::FileBrowser ( )

Returns the file browser
Created in NX5.3.0.

License requirements : None

void NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::SetAssemblyOptions ( NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibAssemblyOption assemblyOptions )

Sets the assembly scope options.

Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

assemblyOptions assemblyoptions

void NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::SetFileBrowser ( const NXString & filename )

Sets the file browser
Created in NX5.3.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

filename filename

void NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::SetFileBrowser ( const char * filename )

Sets the file browser
Created in NX5.3.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

filename filename

void NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::SetShipLibType ( NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibOptionType shipLibType )

Sets the ship lib type
Created in NX5.3.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

shipLibType shiplibtype

NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibOptionType NXOpen::Features::ShipDesign::UpdateShipLibraryBuilder::ShipLibType ( )

Returns the ship lib type
Created in NX5.3.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_UpdateShipLibraryBuilder.hxx
