This class is used to synchronize body features from design view to manufacturing view. More...

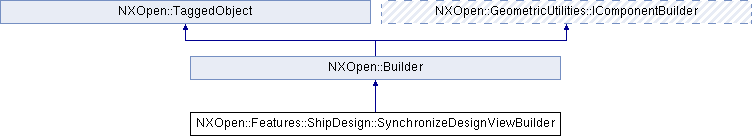

Inheritance diagram for NXOpen::Features::ShipDesign::SynchronizeDesignViewBuilder:
Public Member Functions | |
| NXOpen::SelectNXObjectList * | DesignElementToSynchronizeDesignView () |
| Returns the design element selection object to be processed in the change of mode processing. | |
| int | SynchronizeDesignView () |
| Loops through all selected parts and synchronizes body features from design view to manufacturing view. | |
 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This class is used to synchronize body features from design view to manufacturing view.
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateSynchronizeDesignViewBuilder Features::ShipCollection::CreateSynchronizeDesignViewBuilder @endlink <br>
Created in NX8.5.0.
Member Function Documentation
| NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SynchronizeDesignViewBuilder::DesignElementToSynchronizeDesignView | ( | ) |
Returns the design element selection object to be processed in the change of mode processing.
Created in NX8.5.0.
License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")
| int NXOpen::Features::ShipDesign::SynchronizeDesignViewBuilder::SynchronizeDesignView | ( | ) |
Loops through all selected parts and synchronizes body features from design view to manufacturing view.
@return
Created in NX8.5.0.
License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")
The documentation for this class was generated from the following file:
- Features_ShipDesign_SynchronizeDesignViewBuilder.hxx
