This class is used to edit a Features::ShipDesign::SubSystems feature. More...

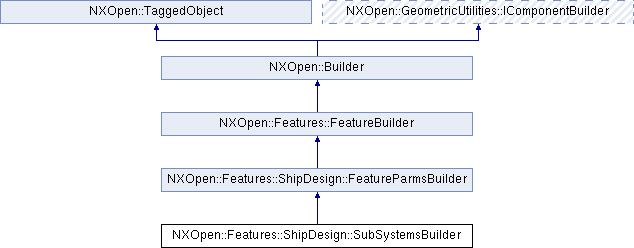

Inheritance diagram for NXOpen::Features::ShipDesign::SubSystemsBuilder:
Public Types | |
| enum | Types { TypesPlate, TypesProfile, TypesPillar } |
| Used to indicate the type of sub system definition that is being edited. More... | |
 Public Types inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder | |
| enum | OrientationAngleRuleTypes { OrientationAngleRuleTypesRightHand, OrientationAngleRuleTypesShipOrientation } |
| Settings to indicate how angles are to be measured. More... | |
Public Member Functions | |
| NXOpen::SelectNXObjectList * | Seams () |
| Returns the seams that you want to actually split the plate system or profile system. | |
| NXOpen::Features::ShipDesign::SubSystemBuilderList * | SubPillarDefinitionList () |
| Returns the list of Sub Pillar System Definitions. | |
| NXOpen::Features::ShipDesign::SubSystemBuilderList * | SubPlateDefinitionList () |
| Returns the list of Sub Plate System Definitions. | |
| NXOpen::Features::ShipDesign::SubSystemBuilderList * | SubProfileDefinitionList () |
| Returns the list of Sub Profile System Definitions. | |
| Public Member Functions inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder | |
| double | AngleTolerance () |
| Returns the tolerance, in degrees, used to determine when angles are zero. | |
| NXOpen::Features::ShipDesign::PlaneListBuilder * | CreatePlaneForList () |
| Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list. | |
| double | DistanceTolerance () |
| Returns the tolerance used to determine when distances are considered zero. | |
| NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes | OrientationAngleRule () |
| Returns the angle rule to use when measuring angles. | |
| void | SetAngleTolerance (double angleTolerance) |
| Sets the tolerance, in degrees, used to determine when angles are zero. | |
| void | SetDistanceTolerance (double distanceTolerance) |
| Sets the tolerance used to determine when distances are considered zero. | |
| void | SetOrientationAngleRule (NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule) |
| Sets the angle rule to use when measuring angles. | |
| Public Member Functions inherited from NXOpen::Features::FeatureBuilder | |
| NXOpen::Features::Feature * | CommitFeature () |
| Commits the feature parameters and creates the feature. | |
| NXOpen::Features::Feature * | GetFeature () |
| Returns the feature currently being edited by this builder. | |
| void | HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature) |
| Re-suppress an internal parent feature (a slave feature) after it has been edited. | |
| bool | ParentFeatureInternal () |
| Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| bool | PatchSolutionFlag () |
| Returns the patch solution flag Created in NX8.0.1. | |
| NXString | PatchSurfaceFilename () |
| Returns the patch surface filename Created in NX8.0.1. | |
| void | SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0. | |
| void | SetParentFeatureInternal (bool isInternal) |
| Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| void | SetPatchSolutionFlag (bool optionValue) |
| Sets the patch solution flag Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const NXString &surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const char *surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature) |
| Unsuppress an internal parent feature (a slave feature) so it can be edited. | |
| NXString | SurroundingPatchSurfaceFilename () |
| Returns the surrounding patch surface filename Created in NX8.0.1. | |
| void | UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the internal parent feature of the feature being edited to external Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This class is used to edit a Features::ShipDesign::SubSystems feature.
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateSubSystemsBuilder Features::ShipCollection::CreateSubSystemsBuilder @endlink <br>
Created in NX8.0.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SubSystemsBuilder::Seams | ( | ) |
Returns the seams that you want to actually split the plate system or profile system.
Straking seams will be ignored if added to this selection.
Created in NX8.0.0.
License requirements : None
| NXOpen::Features::ShipDesign::SubSystemBuilderList* NXOpen::Features::ShipDesign::SubSystemsBuilder::SubPillarDefinitionList | ( | ) |
Returns the list of Sub Pillar System Definitions.
Created in NX8.0.0.
License requirements : None
| NXOpen::Features::ShipDesign::SubSystemBuilderList* NXOpen::Features::ShipDesign::SubSystemsBuilder::SubPlateDefinitionList | ( | ) |
Returns the list of Sub Plate System Definitions.
Created in NX8.0.0.
License requirements : None
| NXOpen::Features::ShipDesign::SubSystemBuilderList* NXOpen::Features::ShipDesign::SubSystemsBuilder::SubProfileDefinitionList | ( | ) |
Returns the list of Sub Profile System Definitions.
Created in NX8.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_ShipDesign_SubSystemsBuilder.hxx
