Represents a Features::ShipDesign::ProfileCutout builder for editing legacy(NX75) profile cutout feature. More...

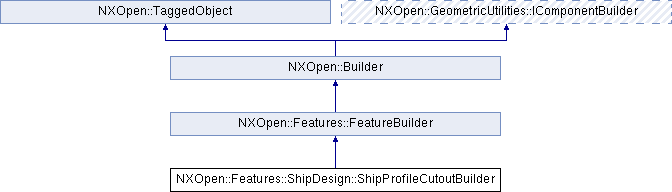

Inheritance diagram for NXOpen::Features::ShipDesign::ShipProfileCutoutBuilder:
Public Member Functions | |
| NXOpen::SelectFaceList * | PierceFaces () |
| Returns the pierce faces Created in NX5.0.0. | |
| NXOpen::SelectBodyList * | ProfileBodies () |
| Returns the profile bodies Created in NX5.0.0. | |
| void | SetSize (const NXString &size) |
| Sets the profile size Created in NX5.0.0. | |
| void | SetSize (const char *size) |
| Sets the profile size Created in NX5.0.0. | |
| NXString | Size () |
| Returns the profile size Created in NX5.0.0. | |
 Public Member Functions inherited from NXOpen::Features::FeatureBuilder | |
| NXOpen::Features::Feature * | CommitFeature () |
| Commits the feature parameters and creates the feature. | |
| NXOpen::Features::Feature * | GetFeature () |
| Returns the feature currently being edited by this builder. | |
| void | HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature) |
| Re-suppress an internal parent feature (a slave feature) after it has been edited. | |
| bool | ParentFeatureInternal () |
| Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| bool | PatchSolutionFlag () |
| Returns the patch solution flag Created in NX8.0.1. | |
| NXString | PatchSurfaceFilename () |
| Returns the patch surface filename Created in NX8.0.1. | |
| void | SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0. | |
| void | SetParentFeatureInternal (bool isInternal) |
| Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| void | SetPatchSolutionFlag (bool optionValue) |
| Sets the patch solution flag Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const NXString &surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const char *surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature) |
| Unsuppress an internal parent feature (a slave feature) so it can be edited. | |
| NXString | SurroundingPatchSurfaceFilename () |
| Returns the surrounding patch surface filename Created in NX8.0.1. | |
| void | UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the internal parent feature of the feature being edited to external Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Features::ShipDesign::ProfileCutout builder for editing legacy(NX75) profile cutout feature.
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateShipProfileCutoutBuilder Features::ShipCollection::CreateShipProfileCutoutBuilder @endlink <br>
Created in NX5.0.0.
Member Function Documentation
| NXOpen::SelectFaceList* NXOpen::Features::ShipDesign::ShipProfileCutoutBuilder::PierceFaces | ( | ) |
Returns the pierce faces
Created in NX5.0.0.
License requirements : None
| NXOpen::SelectBodyList* NXOpen::Features::ShipDesign::ShipProfileCutoutBuilder::ProfileBodies | ( | ) |
Returns the profile bodies
Created in NX5.0.0.
License requirements : None
| void NXOpen::Features::ShipDesign::ShipProfileCutoutBuilder::SetSize | ( | const NXString & | size | ) |
Sets the profile size
Created in NX5.0.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
size size
| void NXOpen::Features::ShipDesign::ShipProfileCutoutBuilder::SetSize | ( | const char * | size | ) |
Sets the profile size
Created in NX5.0.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
size size
| NXString NXOpen::Features::ShipDesign::ShipProfileCutoutBuilder::Size | ( | ) |
Returns the profile size
Created in NX5.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_ShipDesign_ShipProfileCutoutBuilder.hxx
