Represents a @link Features::ShipDesign::ShipFlatPattern Features::ShipDesign::ShipFlatPattern@endlink builder
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateShipFlatPatternBuilder Features::ShipCollection::CreateShipFlatPatternBuilder @endlink <br>

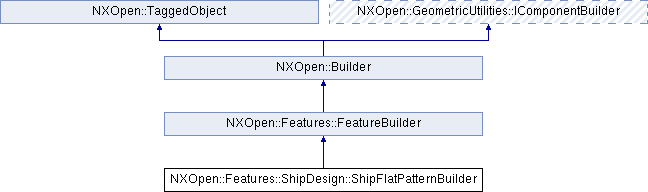

Inheritance diagram for NXOpen::Features::ShipDesign::ShipFlatPatternBuilder:
Public Member Functions | |
| void | AddPart (const NXString &partName) |
| TODO: fill in a description for this | |
| void | AddPart (const char *partName) |
| TODO: fill in a description for this | |
| NXOpen::Expression * | Length () |
| Returns the length | |
| void | RemovePart (const NXString &partName) |
| TODO: fill in a description for this | |
| void | RemovePart (const char *partName) |
| TODO: fill in a description for this | |
| NXOpen::Expression * | Width () |
| Returns the width | |
 Public Member Functions inherited from NXOpen::Features::FeatureBuilder | |
| NXOpen::Features::Feature * | CommitFeature () |
| Commits the feature parameters and creates the feature. | |
| NXOpen::Features::Feature * | GetFeature () |
| Returns the feature currently being edited by this builder. | |
| void | HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature) |
| Re-suppress an internal parent feature (a slave feature) after it has been edited. | |
| bool | ParentFeatureInternal () |
| Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| bool | PatchSolutionFlag () |
| Returns the patch solution flag Created in NX8.0.1. | |
| NXString | PatchSurfaceFilename () |
| Returns the patch surface filename Created in NX8.0.1. | |
| void | SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0. | |
| void | SetParentFeatureInternal (bool isInternal) |
| Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| void | SetPatchSolutionFlag (bool optionValue) |
| Sets the patch solution flag Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const NXString &surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const char *surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature) |
| Unsuppress an internal parent feature (a slave feature) so it can be edited. | |
| NXString | SurroundingPatchSurfaceFilename () |
| Returns the surrounding patch surface filename Created in NX8.0.1. | |
| void | UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the internal parent feature of the feature being edited to external Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a @link Features::ShipDesign::ShipFlatPattern Features::ShipDesign::ShipFlatPattern@endlink builder
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateShipFlatPatternBuilder Features::ShipCollection::CreateShipFlatPatternBuilder @endlink <br>
- Deprecated:
- Deprecated in NX8.0.0.
Use Features::ShipDesign::PlatePreparationBuilder instead.
Created in NX5.0.0.
Member Function Documentation
| void NXOpen::Features::ShipDesign::ShipFlatPatternBuilder::AddPart | ( | const NXString & | partName | ) |
TODO: fill in a description for this
- Deprecated:
- Deprecated in NX8.0.0.
Use Features::ShipDesign::PlatePreparationBuilder instead.
Created in NX5.0.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
partName
NOTE: The full Unicode character set is not supported for this parameter.
| void NXOpen::Features::ShipDesign::ShipFlatPatternBuilder::AddPart | ( | const char * | partName | ) |
TODO: fill in a description for this
- Deprecated:
- Deprecated in NX8.0.0.
Use Features::ShipDesign::PlatePreparationBuilder instead.
Created in NX5.0.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
partName
NOTE: The full Unicode character set is not supported for this parameter.
| NXOpen::Expression* NXOpen::Features::ShipDesign::ShipFlatPatternBuilder::Length | ( | ) |
Returns the length
- Deprecated:
- Deprecated in NX8.0.0.
Use Features::ShipDesign::PlatePreparationBuilder instead.
Created in NX5.0.0.
License requirements : None
| void NXOpen::Features::ShipDesign::ShipFlatPatternBuilder::RemovePart | ( | const NXString & | partName | ) |
TODO: fill in a description for this
- Deprecated:
- Deprecated in NX8.0.0.
Use Features::ShipDesign::PlatePreparationBuilder instead.
Created in NX5.0.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
partName
NOTE: The full Unicode character set is not supported for this parameter.
| void NXOpen::Features::ShipDesign::ShipFlatPatternBuilder::RemovePart | ( | const char * | partName | ) |
TODO: fill in a description for this
- Deprecated:
- Deprecated in NX8.0.0.
Use Features::ShipDesign::PlatePreparationBuilder instead.
Created in NX5.0.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
partName
NOTE: The full Unicode character set is not supported for this parameter.
| NXOpen::Expression* NXOpen::Features::ShipDesign::ShipFlatPatternBuilder::Width | ( | ) |
Returns the width
- Deprecated:
- Deprecated in NX8.0.0.
Use Features::ShipDesign::PlatePreparationBuilder instead.
Created in NX5.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_ShipDesign_ShipFlatPatternBuilder.hxx
