This class is used to convert/upgrade legacy Ship Design features. More...

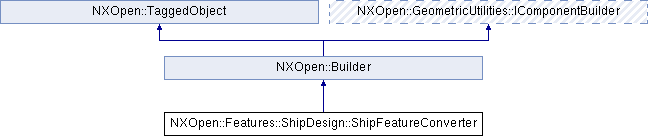

Inheritance diagram for NXOpen::Features::ShipDesign::ShipFeatureConverter:

Public Types
enum	PartScope { PartScopeWorkPart, PartScopeWorkPartandComponents }
	Settings for the conversion scope. More...

Public Member Functions
int	NumCandidateFeatures ()
	Returns the number of candidate features.

int	NumConvertedFeatures ()
	Returns the number of converted features.

NXOpen::Features::ShipDesign::ShipFeatureConverter::PartScope	Scope ()
	Returns the conversion scope Created in NX7.5.0.

void	SetScope (NXOpen::Features::ShipDesign::ShipFeatureConverter::PartScope scope)
	Sets the conversion scope Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This class is used to convert/upgrade legacy Ship Design features.

It currently supports the conversion of KF Steel Features into non-KF Steel features.
To create a new instance of this class, use Features::ShipCollection::CreateShipFeatureConverter
Default values.

Property

Value

Scope

WorkPart

Created in NX7.5.0.

Member Enumeration Documentation

Settings for the conversion scope.

Enumerator:

PartScopeWorkPart	convert features in the work part only
PartScopeWorkPartandComponents	convert features in wort part and sub-component parts

int NXOpen::Features::ShipDesign::ShipFeatureConverter::NumCandidateFeatures ( )

Returns the number of candidate features.

This is only set after committing the converter.
Created in NX7.5.0.

License requirements : None

int NXOpen::Features::ShipDesign::ShipFeatureConverter::NumConvertedFeatures ( )

Returns the number of converted features.

This is only set after committing the converter.
Created in NX7.5.0.

License requirements : None

NXOpen::Features::ShipDesign::ShipFeatureConverter::PartScope NXOpen::Features::ShipDesign::ShipFeatureConverter::Scope ( )

Returns the conversion scope
Created in NX7.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::ShipFeatureConverter::SetScope ( NXOpen::Features::ShipDesign::ShipFeatureConverter::PartScope scope )

Sets the conversion scope
Created in NX7.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

scope scope
