Represents a Features::ShipDesign::QualifySketchBuilder builder. More...

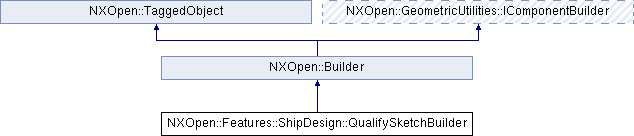

Inheritance diagram for NXOpen::Features::ShipDesign::QualifySketchBuilder:

Public Member Functions
int	ActiveRowIndex ()
	Returns the active row index.

void	AssignAttribute (NXOpen::TaggedObject *entity, const NXString &category, const NXString &title, const NXString &value, int attrType, const NXString &objName)
	Assigns attributes to the anchor point.

void	AssignAttribute (NXOpen::TaggedObject entity, const char category, const char title, const char value, int attrType, const char *objName)
	Assigns attributes to the anchor point.

NXOpen::SelectCurve *	BaseLine ()
	Returns the selected base line.

int	ContextAttribute ()
	Returns the context attribute.

NXOpen::Features::ShipDesign::AnchorPoint *	CreateNewAnchorPoint ()
	Creates the anchor point.

int	Feature ()
	Returns the steel feture type.

NXString	ModelFile ()
	Returns the model file name.

NXOpen::Features::ShipDesign::AnchorPointList *	ModelList ()
	Returns the model list.

NXString	ModelPath ()
	Returns the model file path.

NXOpen::SelectCurve *	MoldLine ()
	Returns the selected mold line.

void	OpenParameterSpreadSheetToEdit ()
	Opens parameter spreadsheet to edit.

void	OpenPartFile ()
	Opens the template part file.

void	OpenRegistrationSpreadSheetToEdit ()
	Opens registration spreadsheet to edit.

NXOpen::SelectCurve *	OpposingMoldLine ()
	Returns the selected opposing mold line.

void	PreviewLeftImage ()
	Previews left image.

void	PreviewRightImage ()
	Previews right image.

void	ReloadParameterSpreadSheet ()
	Reloads parameter spreadsheet.

void	ReloadRegisterSpreadSheet ()
	Reloads registration spreadsheet.

void	ReloadTable ()
	Reloads expression table.

void	RemoveAttribute (NXOpen::TaggedObject *entity, const NXString &category, const NXString &title, int attrType)
	Removes attributes from the entity.

void	RemoveAttribute (NXOpen::TaggedObject entity, const char category, const char *title, int attrType)
	Removes attributes from the entity.

int	SectionType ()
	Returns the section type.

void	SetActiveRowIndex (int activeRowIndex)
	Sets the active row index.

void	SetContextAttribute (int contextAttribute)
	Sets the context attribute.

void	SetFeature (int feature)
	Sets the steel feture type.

void	SetModelFile (const NXString &modelFile)
	Sets the model file name.

void	SetModelFile (const char *modelFile)
	Sets the model file name.

void	SetModelPath (const NXString &modelPath)
	Sets the model file path.

void	SetModelPath (const char *modelPath)
	Sets the model file path.

void	SetSectionType (int sectionType)
	Sets the section type.

void	SetShipNo (int shipNo)
	Sets the ship no.

void	SetSpreadSheetFile (const NXString &spreadSheetFile)
	Sets the parameter spreadsheet file.

void	SetSpreadSheetFile (const char *spreadSheetFile)
	Sets the parameter spreadsheet file.

void	SetSpreadSheetPath (const NXString &spreadSheetPath)
	Sets the parameter spreadsheet path.

void	SetSpreadSheetPath (const char *spreadSheetPath)
	Sets the parameter spreadsheet path.

NXOpen::SelectCurve *	ShearLine ()
	Returns the selected shear line.

int	ShipNo ()
	Returns the ship no.

NXString	SpreadSheetFile ()
	Returns the parameter spreadsheet file.

NXString	SpreadSheetPath ()
	Returns the parameter spreadsheet path.

NXOpen::SelectCurve *	TaperLine ()
	Returns the selected taper line.

NXOpen::SelectCurve *	TopLine ()
	Returns the selected top line.

void	UpdateSketch ()
	Updates sketch.

void	ValidateCurves ()
	Validates Curves.

void	ValidateParameterSpreadSheet ()
	Validates parameter spreadsheet.

void	ValidatePartAttributes ()
	Validates the part attributes.

void	ValidateSketchCurves ()
	Validates the sketch curves.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::QualifySketchBuilder builder.

<br> To create a new instance of this class, use @link Features::ShipCollection::CreateQualifySketchBuilder  Features::ShipCollection::CreateQualifySketchBuilder @endlink  <br>

Created in NX8.0.0.

Member Function Documentation

int NXOpen::Features::ShipDesign::QualifySketchBuilder::ActiveRowIndex ( )

Returns the active row index.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::QualifySketchBuilder::AssignAttribute	(	NXOpen::TaggedObject *	entity,
		const NXString &	category,
		const NXString &	title,
		const NXString &	value,
		int	attrType,
		const NXString &	objName
	)

Assigns attributes to the anchor point.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

entity	entity
category	category
title	title
value	value
attrType	attr type
objName	objname

void NXOpen::Features::ShipDesign::QualifySketchBuilder::AssignAttribute	(	NXOpen::TaggedObject *	entity,
		const char *	category,
		const char *	title,
		const char *	value,
		int	attrType,
		const char *	objName
	)

Assigns attributes to the anchor point.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

entity	entity
category	category
title	title
value	value
attrType	attr type
objName	objname

NXOpen::SelectCurve* NXOpen::Features::ShipDesign::QualifySketchBuilder::BaseLine ( )

Returns the selected base line.

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::QualifySketchBuilder::ContextAttribute ( )

Returns the context attribute.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::AnchorPoint* NXOpen::Features::ShipDesign::QualifySketchBuilder::CreateNewAnchorPoint ( )

Creates the anchor point.

Returns: Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

int NXOpen::Features::ShipDesign::QualifySketchBuilder::Feature ( )

Returns the steel feture type.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::QualifySketchBuilder::ModelFile ( )

Returns the model file name.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::AnchorPointList* NXOpen::Features::ShipDesign::QualifySketchBuilder::ModelList ( )

Returns the model list.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::QualifySketchBuilder::ModelPath ( )

Returns the model file path.

Created in NX8.0.0.

License requirements : None

NXOpen::SelectCurve* NXOpen::Features::ShipDesign::QualifySketchBuilder::MoldLine ( )

Returns the selected mold line.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::QualifySketchBuilder::OpenParameterSpreadSheetToEdit ( )

Opens parameter spreadsheet to edit.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::OpenPartFile ( )

Opens the template part file.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::OpenRegistrationSpreadSheetToEdit ( )

Opens registration spreadsheet to edit.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

NXOpen::SelectCurve* NXOpen::Features::ShipDesign::QualifySketchBuilder::OpposingMoldLine ( )

Returns the selected opposing mold line.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::QualifySketchBuilder::PreviewLeftImage ( )

Previews left image.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::PreviewRightImage ( )

Previews right image.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::ReloadParameterSpreadSheet ( )

Reloads parameter spreadsheet.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::ReloadRegisterSpreadSheet ( )

Reloads registration spreadsheet.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::ReloadTable ( )

Reloads expression table.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::RemoveAttribute	(	NXOpen::TaggedObject *	entity,
		const NXString &	category,
		const NXString &	title,
		int	attrType
	)

Removes attributes from the entity.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

entity	entity
category	category
title	title
attrType	attr type

void NXOpen::Features::ShipDesign::QualifySketchBuilder::RemoveAttribute	(	NXOpen::TaggedObject *	entity,
		const char *	category,
		const char *	title,
		int	attrType
	)

Removes attributes from the entity.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

entity	entity
category	category
title	title
attrType	attr type

int NXOpen::Features::ShipDesign::QualifySketchBuilder::SectionType ( )

Returns the section type.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetActiveRowIndex ( int activeRowIndex )

Sets the active row index.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

activeRowIndex activerowindex

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetContextAttribute ( int contextAttribute )

Sets the context attribute.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

contextAttribute contextattribute

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetFeature ( int feature )

Sets the steel feture type.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

feature feature

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetModelFile ( const NXString & modelFile )

Sets the model file name.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

modelFile modelfile

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetModelFile ( const char * modelFile )

Sets the model file name.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

modelFile modelfile

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetModelPath ( const NXString & modelPath )

Sets the model file path.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

modelPath modelpath

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetModelPath ( const char * modelPath )

Sets the model file path.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

modelPath modelpath

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetSectionType ( int sectionType )

Sets the section type.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

sectionType sectiontype

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetShipNo ( int shipNo )

Sets the ship no.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

shipNo shipno

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetSpreadSheetFile ( const NXString & spreadSheetFile )

Sets the parameter spreadsheet file.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

spreadSheetFile spreadsheetfile

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetSpreadSheetFile ( const char * spreadSheetFile )

Sets the parameter spreadsheet file.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

spreadSheetFile spreadsheetfile

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetSpreadSheetPath ( const NXString & spreadSheetPath )

Sets the parameter spreadsheet path.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

spreadSheetPath spreadsheetpath

void NXOpen::Features::ShipDesign::QualifySketchBuilder::SetSpreadSheetPath ( const char * spreadSheetPath )

Sets the parameter spreadsheet path.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

spreadSheetPath spreadsheetpath

NXOpen::SelectCurve* NXOpen::Features::ShipDesign::QualifySketchBuilder::ShearLine ( )

Returns the selected shear line.

Created in NX8.0.0.

License requirements : None

int NXOpen::Features::ShipDesign::QualifySketchBuilder::ShipNo ( )

Returns the ship no.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::QualifySketchBuilder::SpreadSheetFile ( )

Returns the parameter spreadsheet file.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::QualifySketchBuilder::SpreadSheetPath ( )

Returns the parameter spreadsheet path.

Created in NX8.0.0.

License requirements : None

NXOpen::SelectCurve* NXOpen::Features::ShipDesign::QualifySketchBuilder::TaperLine ( )

Returns the selected taper line.

Created in NX8.0.0.

License requirements : None

NXOpen::SelectCurve* NXOpen::Features::ShipDesign::QualifySketchBuilder::TopLine ( )

Returns the selected top line.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::QualifySketchBuilder::UpdateSketch ( )

Updates sketch.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::ValidateCurves ( )

Validates Curves.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::ValidateParameterSpreadSheet ( )

Validates parameter spreadsheet.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::ValidatePartAttributes ( )

Validates the part attributes.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::QualifySketchBuilder::ValidateSketchCurves ( )

Validates the sketch curves.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

The documentation for this class was generated from the following file:

Features_ShipDesign_QualifySketchBuilder.hxx

Public Member Functions

Detailed Description

Member Function Documentation
