   Represents a @link Features::ShipDesign::ProfileList Features::ShipDesign::ProfileList@endlink  builder
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateProfileListBuilder  Features::ShipCollection::CreateProfileListBuilder @endlink  <br>

Created in NX5.0.0. More...

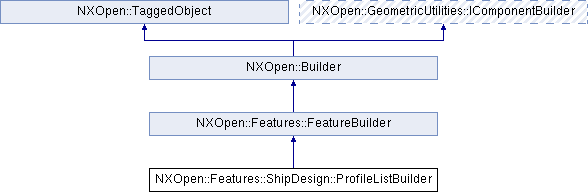

Inheritance diagram for NXOpen::Features::ShipDesign::ProfileListBuilder:

Public Member Functions
bool	InverseBending ()
	Returns the inverse bending Created in NX5.0.0.

bool	KnuckledProfile ()
	Returns the knuckled profile Created in NX5.0.0.

NXString	ListFile ()
	Returns the assembly part Created in NX5.0.0.

void	SetInverseBending (bool inverseBending)
	Sets the inverse bending Created in NX5.0.0.

void	SetKnuckledProfile (bool knuckledProfile)
	Sets the knuckled profile Created in NX5.0.0.

void	SetListFile (const NXString &listFile)
	Sets the assembly part Created in NX5.0.0.

void	SetListFile (const char *listFile)
	Sets the assembly part Created in NX5.0.0.

void	SetVentilationHoles (bool ventilationHoles)
	Sets the ventilation holes Created in NX5.0.0.

bool	VentilationHoles ()
	Returns the ventilation holes Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

   Represents a @link Features::ShipDesign::ProfileList Features::ShipDesign::ProfileList@endlink  builder
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateProfileListBuilder  Features::ShipCollection::CreateProfileListBuilder @endlink  <br>

Created in NX5.0.0.

Member Function Documentation

bool NXOpen::Features::ShipDesign::ProfileListBuilder::InverseBending ( )

Returns the inverse bending
Created in NX5.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::ProfileListBuilder::KnuckledProfile ( )

Returns the knuckled profile
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::ProfileListBuilder::ListFile ( )

Returns the assembly part
Created in NX5.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::ProfileListBuilder::SetInverseBending ( bool inverseBending )

Sets the inverse bending
Created in NX5.0.0.
