NXOpen::Features::ShipDesign::PillarSystemBuilder Class Reference

Represents a Features::ShipDesign::PillarSystem builder which is used to create or edit a pillar system feature. More...

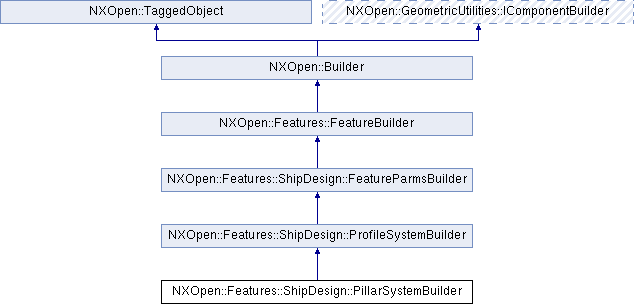

Inheritance diagram for NXOpen::Features::ShipDesign::PillarSystemBuilder:

Public Types
enum	StockSectionType { StockSectionTypeProfile, StockSectionTypeBuiltUp }
	SpreadSheet Type Profile or BuiltUp. More...
enum	Types { TypesShipStructure, TypesPoints }
	Used to specify how the pillar system is defined. More...

Public Member Functions
NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder *	BuiltUpStock ()
	Returns the stock used to build the builtUp from.
NXOpen::Features::ShipDesign::PointPairBuilder *	CreatePointPairBuilder ()
	Creates a Features::ShipDesign::PointPairBuilder .
NXOpen::Direction *	Direction ()
	Returns the direction of the pillar.
NXOpen::SelectNXObjectList *	IntersectingShipStructure ()
	Returns the ship structure to intersect with each other that defines the start of a pillar.
NXOpen::SelectNXObjectList *	LimitingShipStructure ()
	Returns the ship sructure that defines the end of the pillar.
NXOpen::Expression *	OrientationAngle ()
	Returns the angle at which to orient the stock shape.
NXOpen::SelectTaggedObject *	OrientationLine ()
	Returns the orientation line, used only if the creation method is "Specify Line".
NXOpen::NXObjectList *	PointPairList ()
	Returns the list of pairs of points that define the ends of the pillars.
NXOpen::Features::ShipDesign::PillarSystemBuilder::StockSectionType	SectionType ()
	Returns the section type (profile or plate) Created in NX9.0.0.
void	SetDirection (NXOpen::Direction *direction)
	Sets the direction of the pillar.
void	SetSectionType (NXOpen::Features::ShipDesign::PillarSystemBuilder::StockSectionType sectionType)
	Sets the section type (profile or plate) Created in NX9.0.0.
void	SetType (NXOpen::Features::ShipDesign::PillarSystemBuilder::Types type)
	Sets the type of input used to define the pillar location.
NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder *	StockData ()
	Returns the stock data used to define the stock information of the stiffener.
NXOpen::Features::ShipDesign::PillarSystemBuilder::Types	Type ()
	Returns the type of input used to define the pillar location.
Public Member Functions inherited from NXOpen::Features::ShipDesign::ProfileSystemBuilder
NXOpen::SelectNXObjectList *	Boundary1 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the first end of the generated profile system.
NXOpen::Plane *	Boundary1Plane ()
	Returns the defined plane that will be used to trim the first end of the generated profile system.
NXOpen::SelectNXObjectList *	Boundary2 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the second end of the generated profile system.
NXOpen::Plane *	Boundary2Plane ()
	Returns the defined plane that will be used to trim the second end of the generated profile system.
bool	BoundaryReverse ()
	Returns the indication if the side of a single boundary should be changed to the other side or not.
void	CreatePathCurves (std::vector< NXOpen::NXObject * > &curves)
	Creates path curves for all the paths of the profile system.
void	DeleteLastPathCurves ()
	Deletes the path curves returned from a call to GetLastPathCurves .
void	DeletePathCurves ()
	Deletes the path curves created from a call to CreatePathCurves .
NXOpen::SelectPointList *	FirstIntersectionPoints ()
	Returns the selected intersection points between the curves and the first boundary.
void	GetLastPathCurves (std::vector< NXOpen::NXObject * > &curves)
	Gets the path curves used by OrientationDefinitionBuilder .
NXOpen::SelectPointList *	SecondIntersectionPoints ()
	Returns the selected intersection points between the curves and the second boundary.
void	SetBoundary1Plane (NXOpen::Plane *boundary1Plane)
	Sets the defined plane that will be used to trim the first end of the generated profile system.
void	SetBoundary2Plane (NXOpen::Plane *boundary2Plane)
	Sets the defined plane that will be used to trim the second end of the generated profile system.
void	SetBoundaryOnePoints (const std::vector< NXOpen::Point3d > &points)
	Sets the selected intersection points for the first boundary.
void	SetBoundaryReverse (bool boundaryReverse)
	Sets the indication if the side of a single boundary should be changed to the other side or not.
void	SetBoundaryTwoPoints (const std::vector< NXOpen::Point3d > &points)
	Set the selected intersection points for the second boundary.
Public Member Functions inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder
double	AngleTolerance ()
	Returns the tolerance, in degrees, used to determine when angles are zero.
NXOpen::Features::ShipDesign::PlaneListBuilder *	CreatePlaneForList ()
	Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list.
double	DistanceTolerance ()
	Returns the tolerance used to determine when distances are considered zero.
NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes	OrientationAngleRule ()
	Returns the angle rule to use when measuring angles.
void	SetAngleTolerance (double angleTolerance)
	Sets the tolerance, in degrees, used to determine when angles are zero.
void	SetDistanceTolerance (double distanceTolerance)
	Sets the tolerance used to determine when distances are considered zero.
void	SetOrientationAngleRule (NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule)
	Sets the angle rule to use when measuring angles.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::PillarSystem builder which is used to create or edit a pillar system feature.

 <br> To create a new instance of this class, use @link Features::ShipCollection::CreatePillarSystemBuilder  Features::ShipCollection::CreatePillarSystemBuilder @endlink  <br>

Default values.

Property	Value
OrientationAngle.Value	0
SectionType	Profile

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::PillarSystemBuilder::StockSectionType

SpreadSheet Type Profile or BuiltUp.

Enumerator:

StockSectionTypeProfile	Profile Stock.
StockSectionTypeBuiltUp	Built Up Stock.

enum NXOpen::Features::ShipDesign::PillarSystemBuilder::Types

Used to specify how the pillar system is defined.

Enumerator:

TypesShipStructure	ship structure
TypesPoints	points

Member Function Documentation

NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder* NXOpen::Features::ShipDesign::PillarSystemBuilder::BuiltUpStock

(

)

Returns the stock used to build the builtUp from.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PointPairBuilder* NXOpen::Features::ShipDesign::PillarSystemBuilder::CreatePointPairBuilder

(

)

Creates a Features::ShipDesign::PointPairBuilder .

Returns

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

NXOpen::Direction* NXOpen::Features::ShipDesign::PillarSystemBuilder::Direction

(

)

Returns the direction of the pillar.

Only used when Type is Features.ShipDesign.PillarSystemBuilder.Types.ShipStructure.
Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::PillarSystemBuilder::IntersectingShipStructure

(

)

Returns the ship structure to intersect with each other that defines the start of a pillar.

Only used when Type is Features.ShipDesign.PillarSystemBuilder.Types.ShipStructure.
Created in NX8.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::PillarSystemBuilder::LimitingShipStructure

(

)

Returns the ship sructure that defines the end of the pillar.

Only used when Type is Features.ShipDesign.PillarSystemBuilder.Types.ShipStructure.
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PillarSystemBuilder::OrientationAngle

(

)

Returns the angle at which to orient the stock shape.

Created in NX8.0.0.

License requirements : None

NXOpen::SelectTaggedObject* NXOpen::Features::ShipDesign::PillarSystemBuilder::OrientationLine

(

)

Returns the orientation line, used only if the creation method is "Specify Line".

Created in NX8.5.0.

License requirements : None

NXOpen::NXObjectList* NXOpen::Features::ShipDesign::PillarSystemBuilder::PointPairList

(

)

Returns the list of pairs of points that define the ends of the pillars.

Only used when Type is Features.ShipDesign.PillarSystemBuilder.Types.Points.
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PillarSystemBuilder::StockSectionType NXOpen::Features::ShipDesign::PillarSystemBuilder::SectionType

(

)

Returns the section type (profile or plate)
Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::PillarSystemBuilder::SetDirection

(

NXOpen::Direction *

direction

)

Sets the direction of the pillar.

Only used when Type is Features.ShipDesign.PillarSystemBuilder.Types.ShipStructure.
Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

direction

direction

void NXOpen::Features::ShipDesign::PillarSystemBuilder::SetSectionType

(

NXOpen::Features::ShipDesign::PillarSystemBuilder::StockSectionType

sectionType

)

Sets the section type (profile or plate)
Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

sectionType

sectiontype

void NXOpen::Features::ShipDesign::PillarSystemBuilder::SetType

(

NXOpen::Features::ShipDesign::PillarSystemBuilder::Types

type

)

Sets the type of input used to define the pillar location.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

type

type

NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder* NXOpen::Features::ShipDesign::PillarSystemBuilder::StockData

(

)

Returns the stock data used to define the stock information of the stiffener.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PillarSystemBuilder::Types NXOpen::Features::ShipDesign::PillarSystemBuilder::Type

(

)

Returns the type of input used to define the pillar location.

Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_PillarSystemBuilder.hxx
