Represents the Penetration Request object. More...

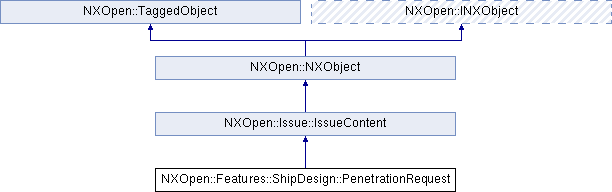

Inheritance diagram for NXOpen::Features::ShipDesign::PenetrationRequest:
Public Types | |
| enum | CompensationType { CompensationTypeNotRequired, CompensationTypeStandard, CompensationTypeNonStandard } |
| Represents the Compensation type. More... | |
| enum | CoutoutType { CoutoutTypeCircular, CoutoutTypeRectangular, CoutoutTypeFlatOval, CoutoutTypeUserDefined, CoutoutTypeExistingSketch, CoutoutTypeNewSketch, CoutoutTypeNone } |
| Represents the Coutout type. More... | |
| enum | DirectionType { DirectionTypePerpendiculartoStructure, DirectionTypeParalleltoRoute, DirectionTypeUserDefined } |
| Represents the Direction type. More... | |
| enum | PenetrationType { PenetrationTypePenetratingObject, PenetrationTypePenetratingPoint } |
| Represents the penetration type. More... | |
| enum | RequestType { RequestTypeSingle, RequestTypeMultiple } |
| Represents the request type. More... | |
Additional Inherited Members | |
 Public Member Functions inherited from NXOpen::Issue::IssueContent | |
| void | AddAttachment (NXOpen::Issue::IssueAttachment *attachment) |
| Adds an Issue::IssueAttachment Created in NX8.5.0. | |
| NXString | AssignedUser () |
| Returns the assigned user Created in NX8.5.0. | |
| void | Close (const NXString &coseNote) |
| Closes the issue Created in NX8.5.0. | |
| void | Close (const char *coseNote) |
| Closes the issue Created in NX8.5.0. | |
| NXString | Comment () |
| Returns the issue comment Created in NX8.5.0. | |
| void | DiscardIssue () |
| Discards the newly created issue which has not saved in external db yet Created in NX8.5.0. | |
| NXString | DueDate () |
| Returns the due date Created in NX8.5.0. | |
| std::vector < NXOpen::Issue::IssueAttachment * > | GetAllAttachments () |
| Returns all the Issue::IssueAttachment s. | |
| NXOpen::Issue::IssueAttachment * | GetAttachment (const NXString &attachmentName) |
| Returns the Issue::IssueAttachment with this attachment name. | |
| NXOpen::Issue::IssueAttachment * | GetAttachment (const char *attachmentName) |
| Returns the Issue::IssueAttachment with this attachment name. | |
| std::vector < NXOpen::Issue::IssueAttachment * > | GetChildAttachments () |
| Returns the child Issue::IssueAttachment s. | |
| std::vector < NXOpen::Issue::IssueFolder * > | GetFolders () |
| Returns all the child Issue::IssueFolder s. | |
| NXOpen::Issue::IssueAttachment * | GetPartAttachment () |
| Returns the Issue::IssueAttachment with part type. | |
| NXOpen::Issue::IssueProperty * | GetProperty (const NXString &propertyName) |
| Returns the Issue::IssueProperty with this property name. | |
| NXOpen::Issue::IssueProperty * | GetProperty (const char *propertyName) |
| Returns the Issue::IssueProperty with this property name. | |
| NXString | GetPropertyValue (const NXString &propertyName) |
| Returns the value of Issue::IssueProperty. | |
| NXString | GetPropertyValue (const char *propertyName) |
| Returns the value of Issue::IssueProperty. | |
| std::vector < NXOpen::Issue::IssueProperty * > | GetUserProperties () |
| Returns the user definded Issue::IssueProperty s. | |
| bool | IsCheckedOut (NXString *user) |
| Returns whether the issue is checked out. | |
| bool | IsClosed () |
| Returns whether the issue is closed. | |
| bool | IsLocked () |
| Returns the lock state Created in NX8.5.0. | |
| bool | IsReadOnly () |
| Returns whether the issue is read only. | |
| NXString | IssueId () |
| Returns the issue id Created in NX8.5.0. | |
| void | LoadAttachments () |
| Loads the Issue::IssueAttachment s Created in NX8.5.0. | |
| NXOpen::Issue::IssueAttachment * | PreviewImage () |
| Returns the preview image Created in NX8.5.0. | |
| NXString | Priority () |
| Returns the issue priority Created in NX8.5.0. | |
| void | ReloadProperties () |
| Reloads all the Issue::IssueProperty s Created in NX8.5.0. | |
| void | RemoveAttachment (NXOpen::Issue::IssueAttachment *attachment) |
| Removes an Issue::IssueAttachment Created in NX8.5.0. | |
| void | Review (const NXString &reviewDecision, const NXString &comment) |
| Signs off the current workflow task with decision Created in NX8.5.0. | |
| void | Review (const char *reviewDecision, const char *comment) |
| Signs off the current workflow task with decision Created in NX8.5.0. | |
| void | SaveChanges () |
| Saves the changes to issue server Created in NX8.5.0. | |
| void | SendToWorkflow (const NXString &workflowTemplate) |
| Sends the issue to workflow process Created in NX8.5.0. | |
| void | SendToWorkflow (const char *workflowTemplate) |
| Sends the issue to workflow process Created in NX8.5.0. | |
| void | SetAssignedUser (const NXString &assignedUser) |
| Sets the assigned user Created in NX8.5.0. | |
| void | SetAssignedUser (const char *assignedUser) |
| Sets the assigned user Created in NX8.5.0. | |
| void | SetComment (const NXString &comment) |
| Sets the issue comment Created in NX8.5.0. | |
| void | SetComment (const char *comment) |
| Sets the issue comment Created in NX8.5.0. | |
| void | SetDueDate (const NXString &dueDate) |
| Sets the due date Created in NX8.5.0. | |
| void | SetDueDate (const char *dueDate) |
| Sets the due date Created in NX8.5.0. | |
| void | SetPreviewImage (NXOpen::Issue::IssueAttachment *previewImage) |
| Sets the preview image Created in NX8.5.0. | |
| void | SetPriority (const NXString &priority) |
| Sets the issue priority Created in NX8.5.0. | |
| void | SetPriority (const char *priority) |
| Sets the issue priority Created in NX8.5.0. | |
| void | SetPropertyValue (const NXString &propertyName, const NXString &propertyValue) |
| Sets the value of Issue::IssueProperty Created in NX8.5.0. | |
| void | SetPropertyValue (const char *propertyName, const char *propertyValue) |
| Sets the value of Issue::IssueProperty Created in NX8.5.0. | |
| void | SetStatus (const NXString &status) |
| Sets the issue status Created in NX8.5.0. | |
| void | SetStatus (const char *status) |
| Sets the issue status Created in NX8.5.0. | |
| void | SetTitle (const NXString &title) |
| Sets the issue title Created in NX8.5.0. | |
| void | SetTitle (const char *title) |
| Sets the issue title Created in NX8.5.0. | |
| NXString | Status () |
| Returns the issue status Created in NX8.5.0. | |
| NXString | Title () |
| Returns the issue title Created in NX8.5.0. | |
Detailed Description
Represents the Penetration Request object.
Not support KF.
Created in NX8.0.0.
Member Enumeration Documentation
Represents the Direction type.
The documentation for this class was generated from the following file:
- Features_ShipDesign_PenetrationRequest.hxx
