Represents a Features::ShipDesign::ManufacturingStockBuilder builder. More...

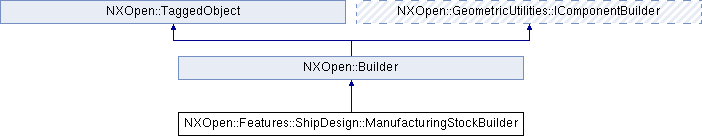

Inheritance diagram for NXOpen::Features::ShipDesign::ManufacturingStockBuilder:

Public Types
enum	CheckBoxStatus { CheckBoxStatusUnchecked, CheckBoxStatusChecked, CheckBoxStatusRequired }
	the check box status. More...

enum	LockedStatus { LockedStatusUnlocked, LockedStatusLocked }
	the NX attribute locked status. More...

enum	ObjectType { ObjectTypeNone, ObjectTypeEdge, ObjectTypeFace, ObjectTypeBody, ObjectTypeFeature, ObjectTypePart, ObjectTypeNum }
	the object to which the manufacturing attributes will be written. More...

enum	StockDataSourceType { StockDataSourceTypeNone, StockDataSourceTypeCustomerDefault }
	the data source from which the intial manufacturing data will be read. More...

Public Member Functions
NXString	DataSource ()
	Returns the data source from which the intial data is read.

NXOpen::Features::ShipDesign::ManufacturingStockBuilder::StockDataSourceType	DataSourceType ()
	Returns the data source from which the initial data is read.

void	EditDataItem (const NXString &name, NXOpen::Features::ShipDesign::ManufacturingStockBuilder::CheckBoxStatus eCheckBoxStatus, const NXString &valueNew)
	Edits data item.

void	EditDataItem (const char name, NXOpen::Features::ShipDesign::ManufacturingStockBuilder::CheckBoxStatus eCheckBoxStatus, const char valueNew)
	Edits data item.

void	InitializeDataFromDataSource (NXOpen::Features::ShipDesign::ManufacturingStockBuilder::StockDataSourceType eDataSourceType, const NXString &dataSource)
	Resets the builder data from the data source.

void	InitializeDataFromDataSource (NXOpen::Features::ShipDesign::ManufacturingStockBuilder::StockDataSourceType eDataSourceType, const char *dataSource)
	Resets the builder data from the data source.

void	SetDataSource (const NXString &dataSource)
	Sets the data source from which the intial data is read.

void	SetDataSource (const char *dataSource)
	Sets the data source from which the intial data is read.

void	SetDataSourceType (NXOpen::Features::ShipDesign::ManufacturingStockBuilder::StockDataSourceType dataSourceType)
	Sets the data source from which the initial data is read.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::ManufacturingStockBuilder builder.

   It is used to manage the data contained in the ship manufacturing stock.
    <br> This class is sub-object of another builder, and cannot be directly instantiated.  <br>

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::ManufacturingStockBuilder::CheckBoxStatus

the check box status.

Enumerator:

CheckBoxStatusUnchecked	Unchecked.
CheckBoxStatusChecked	Checked.
CheckBoxStatusRequired	Checked and Cannot be modified.

enum NXOpen::Features::ShipDesign::ManufacturingStockBuilder::LockedStatus

the NX attribute locked status.

Enumerator:

LockedStatusUnlocked	The NX attribute is set with unlocked status.
LockedStatusLocked	The NX attribute is set with locked status.

enum NXOpen::Features::ShipDesign::ManufacturingStockBuilder::ObjectType

the object to which the manufacturing attributes will be written.

Enumerator:

ObjectTypeNone	None.
ObjectTypeEdge	Edge.
ObjectTypeFace	Face.
ObjectTypeBody	Body.
ObjectTypeFeature	Feature.
ObjectTypePart	Part.
ObjectTypeNum	Total Object Num.

enum NXOpen::Features::ShipDesign::ManufacturingStockBuilder::StockDataSourceType

the data source from which the intial manufacturing data will be read.

Enumerator:

StockDataSourceTypeNone	Set to None if we edit this feature.
StockDataSourceTypeCustomerDefault	Initial data will be read from the customer default.

Member Function Documentation

NXString NXOpen::Features::ShipDesign::ManufacturingStockBuilder::DataSource ( )

Returns the data source from which the intial data is read.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::ManufacturingStockBuilder::StockDataSourceType NXOpen::Features::ShipDesign::ManufacturingStockBuilder::DataSourceType ( )

Returns the data source from which the initial data is read.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::ManufacturingStockBuilder::EditDataItem	(	const NXString &	name,
		NXOpen::Features::ShipDesign::ManufacturingStockBuilder::CheckBoxStatus	eCheckBoxStatus,
		const NXString &	valueNew
	)

Edits data item.
