Represents a Features::ShipDesign::EdgeReinforcement builder which is used to create or edit a edge reinforcement system feature. More...

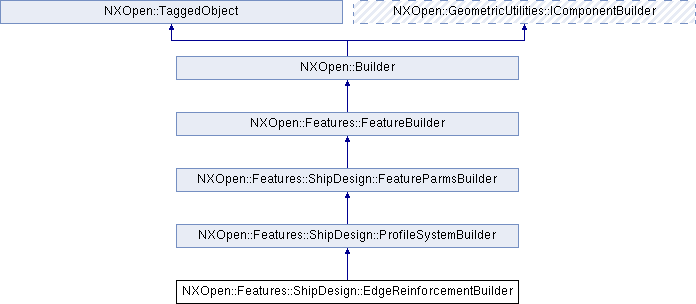

Inheritance diagram for NXOpen::Features::ShipDesign::EdgeReinforcementBuilder:

Public Types
enum	EndCutTypes { EndCutTypesConnected, EndCutTypesFlangeFree, EndCutTypesSniped }
	Used to specify the type of end cut to be used at the extreme ends of the edge reinforcement system. More...

enum	OrientationMethods { OrientationMethodsFaceNormal, OrientationMethodsVector }
	Used to specify the type of reference to use for specifying the orientation of the edge reinforcement system. More...

enum	Types { TypesOnEdge, TypesOnFace }
	Used to specify how the edge reinforcement system is defined. More...

Public Member Functions
NXOpen::Section *	Edges ()
	Returns the edges to reinforce.

NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes	EndCutEnd ()
	Returns the end cut to use at the end of the edge reinforcement system.

NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes	EndCutStart ()
	Returns the end cut to use at the start of the edge reinforcement system.

NXOpen::Expression *	Offset ()
	Returns the offset used for the offset distance from anchor point.

NXOpen::Expression *	OrientationAngle ()
	Returns the angle to use for the edge reinforcement orientation.

NXOpen::Features::ShipDesign::OrientationDefinitionBuilder *	OrientationDefinitionBuilder ()
	Returns the builder used to define the orientation for the edge reinforcement system.

NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethods	OrientationMethod ()
	Returns the method used to orient the edge reinforcement.

NXOpen::Direction *	OrientationVector ()
	Returns the orientation vector when the orientation method is Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethodsVector .

bool	Reverse ()
	Returns the indication if the default direction of the flange is reverse or not.

void	SetEndCutEnd (NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes endCutEnd)
	Sets the end cut to use at the end of the edge reinforcement system.

void	SetEndCutStart (NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes endCutStart)
	Sets the end cut to use at the start of the edge reinforcement system.

void	SetOrientationMethod (NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethods orientationMethod)
	Sets the method used to orient the edge reinforcement.

void	SetOrientationVector (NXOpen::Direction *orientationVector)
	Sets the orientation vector when the orientation method is Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethodsVector .

void	SetReverse (bool reverse)
	Sets the indication if the default direction of the flange is reverse or not.

void	SetType (NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Types type)
	Sets the type of placement being used in the edge reinforcement definition.

NXOpen::Features::ShipDesign::StiffenerStockBuilder *	StockData ()
	Returns the stock data used to define the stock information of the edge reinforcement.

NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Types	Type ()
	Returns the type of placement being used in the edge reinforcement definition.

NXOpen::Weld::CharacteristicsBuilder *	Weld ()
	Returns the builder used to specify the welding characteristics for the edge reinforcement.

Public Member Functions inherited from NXOpen::Features::ShipDesign::ProfileSystemBuilder
NXOpen::SelectNXObjectList *	Boundary1 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the first end of the generated profile system.

NXOpen::Plane *	Boundary1Plane ()
	Returns the defined plane that will be used to trim the first end of the generated profile system.

NXOpen::SelectNXObjectList *	Boundary2 ()
	Returns the collector containing the plate system, profile system, or datum plane that will be used to trim the second end of the generated profile system.

NXOpen::Plane *	Boundary2Plane ()
	Returns the defined plane that will be used to trim the second end of the generated profile system.

bool	BoundaryReverse ()
	Returns the indication if the side of a single boundary should be changed to the other side or not.

void	CreatePathCurves (std::vector< NXOpen::NXObject * > &curves)
	Creates path curves for all the paths of the profile system.

void	DeleteLastPathCurves ()
	Deletes the path curves returned from a call to GetLastPathCurves .

void	DeletePathCurves ()
	Deletes the path curves created from a call to CreatePathCurves .

NXOpen::SelectPointList *	FirstIntersectionPoints ()
	Returns the selected intersection points between the curves and the first boundary.

void	GetLastPathCurves (std::vector< NXOpen::NXObject * > &curves)
	Gets the path curves used by OrientationDefinitionBuilder .

NXOpen::SelectPointList *	SecondIntersectionPoints ()
	Returns the selected intersection points between the curves and the second boundary.

void	SetBoundary1Plane (NXOpen::Plane *boundary1Plane)
	Sets the defined plane that will be used to trim the first end of the generated profile system.

void	SetBoundary2Plane (NXOpen::Plane *boundary2Plane)
	Sets the defined plane that will be used to trim the second end of the generated profile system.

void	SetBoundaryOnePoints (const std::vector< NXOpen::Point3d > &points)
	Sets the selected intersection points for the first boundary.

void	SetBoundaryReverse (bool boundaryReverse)
	Sets the indication if the side of a single boundary should be changed to the other side or not.

void	SetBoundaryTwoPoints (const std::vector< NXOpen::Point3d > &points)
	Set the selected intersection points for the second boundary.

Public Member Functions inherited from NXOpen::Features::ShipDesign::FeatureParmsBuilder
double	AngleTolerance ()
	Returns the tolerance, in degrees, used to determine when angles are zero.

NXOpen::Features::ShipDesign::PlaneListBuilder *	CreatePlaneForList ()
	Create a Features::ShipDesign::PlaneListBuilder to add a defined plane to a list.

double	DistanceTolerance ()
	Returns the tolerance used to determine when distances are considered zero.

NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes	OrientationAngleRule ()
	Returns the angle rule to use when measuring angles.

void	SetAngleTolerance (double angleTolerance)
	Sets the tolerance, in degrees, used to determine when angles are zero.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the tolerance used to determine when distances are considered zero.

void	SetOrientationAngleRule (NXOpen::Features::ShipDesign::FeatureParmsBuilder::OrientationAngleRuleTypes angleRule)
	Sets the angle rule to use when measuring angles.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::EdgeReinforcement builder which is used to create or edit a edge reinforcement system feature.

      <br> To create a new instance of this class, use @link Features::ShipCollection::CreateEdgeReinforcementBuilder  Features::ShipCollection::CreateEdgeReinforcementBuilder @endlink  <br>

Default values.

Property

Value

EndCutEnd

Connected

EndCutStart

Connected

OrientationAngle.Value

0

OrientationDefinitionBuilder.MeasureAngles

NormaltoCurve

OrientationDefinitionBuilder.ShowSurfaceAngles

0

OrientationDefinitionBuilder.ShowTwistRate

0

OrientationDefinitionBuilder.ShowWebAngles

0

OrientationMethod

FaceNormal

StockData.AnchorPoint

0

StockData.PlateHeight.Value

50 (millimeters part), 2 (inches part)

StockData.PlateStockData.KnuckleRatio

3.0

StockData.PlateStockData.KnuckleSmoothAngle

3.0

StockData.PlateStockData.MaterialOption

0

StockData.PlateStockData.OppositeThickness.Value

0 (millimeters part), 0 (inches part)

StockData.PlateStockData.RestrictThicknessToMaterial

true

StockData.PlateStockData.ThickenOption

SingleSided

StockData.PlateStockData.Thickness.Value

10 (millimeters part), 0.5 (inches part)

StockData.PlateStockData.ThicknessSourceOption

List

StockData.SectionType

Profile

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes

Used to specify the type of end cut to be used at the extreme ends of the edge reinforcement system.

Enumerator:

EndCutTypesConnected	connected
EndCutTypesFlangeFree	flange free
EndCutTypesSniped	sniped

enum NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethods

Used to specify the type of reference to use for specifying the orientation of the edge reinforcement system.

Enumerator:

OrientationMethodsFaceNormal	face normal
OrientationMethodsVector	vector

enum NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Types

Used to specify how the edge reinforcement system is defined.

Enumerator:

TypesOnEdge	on edge
TypesOnFace	on face

Member Function Documentation

NXOpen::Section* NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Edges ( )

Returns the edges to reinforce.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutEnd ( )

Returns the end cut to use at the end of the edge reinforcement system.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutStart ( )

Returns the end cut to use at the start of the edge reinforcement system.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Offset ( )

Returns the offset used for the offset distance from anchor point.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationAngle ( )

Returns the angle to use for the edge reinforcement orientation.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::OrientationDefinitionBuilder* NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationDefinitionBuilder ( )

Returns the builder used to define the orientation for the edge reinforcement system.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethods NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethod ( )

Returns the method used to orient the edge reinforcement.

Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationVector ( )

Returns the orientation vector when the orientation method is Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethodsVector .

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Reverse ( )

Returns the indication if the default direction of the flange is reverse or not.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::SetEndCutEnd ( NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes endCutEnd )

Sets the end cut to use at the end of the edge reinforcement system.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

endCutEnd endcutend

void NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::SetEndCutStart ( NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::EndCutTypes endCutStart )

Sets the end cut to use at the start of the edge reinforcement system.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

endCutStart endcutstart

void NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::SetOrientationMethod ( NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethods orientationMethod )

Sets the method used to orient the edge reinforcement.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

orientationMethod orientationmethod

void NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::SetOrientationVector ( NXOpen::Direction * orientationVector )

Sets the orientation vector when the orientation method is Features::ShipDesign::EdgeReinforcementBuilder::OrientationMethodsVector .

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

orientationVector orientationvector

void NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::SetReverse ( bool reverse )

Sets the indication if the default direction of the flange is reverse or not.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

reverse reverse

void NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::SetType ( NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Types type )

Sets the type of placement being used in the edge reinforcement definition.

Created in NX8.0.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

type type

NXOpen::Features::ShipDesign::StiffenerStockBuilder* NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::StockData ( )

Returns the stock data used to define the stock information of the edge reinforcement.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Types NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Type ( )

Returns the type of placement being used in the edge reinforcement definition.

Created in NX8.0.0.

License requirements : None

NXOpen::Weld::CharacteristicsBuilder* NXOpen::Features::ShipDesign::EdgeReinforcementBuilder::Weld ( )

Returns the builder used to specify the welding characteristics for the edge reinforcement.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_EdgeReinforcementBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
