Used to supply the list of corner cut locations and seam curves to the @link Features::ShipDesign::CornerCutBuilder Features::ShipDesign::CornerCutBuilder@endlink
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateCornerCutListitemBuilder Features::ShipCollection::CreateCornerCutListitemBuilder @endlink <br>
Created in NX8.5.0.
More...

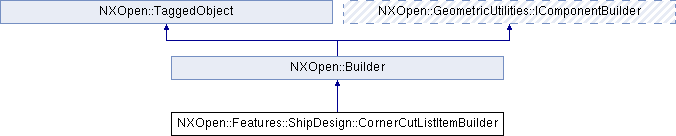

Inheritance diagram for NXOpen::Features::ShipDesign::CornerCutListItemBuilder:
Public Member Functions | |
| NXOpen::Point * | CornerPoint () |
| Returns the corner point as the cut location. | |
| NXOpen::SelectTaggedObject * | SeamCurve () |
| Returns the seam curve to resize the corner cut. | |
| void | SetCornerPoint (NXOpen::Point *weldLocation) |
| Sets the corner point as the cut location. | |
 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Used to supply the list of corner cut locations and seam curves to the @link Features::ShipDesign::CornerCutBuilder Features::ShipDesign::CornerCutBuilder@endlink
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateCornerCutListitemBuilder Features::ShipCollection::CreateCornerCutListitemBuilder @endlink <br>
Created in NX8.5.0.
Member Function Documentation
| NXOpen::Point* NXOpen::Features::ShipDesign::CornerCutListItemBuilder::CornerPoint | ( | ) |
Returns the corner point as the cut location.
The corner point is used only when the placement type is using corner.
Created in NX8.5.0.
License requirements : None
| NXOpen::SelectTaggedObject* NXOpen::Features::ShipDesign::CornerCutListItemBuilder::SeamCurve | ( | ) |
Returns the seam curve to resize the corner cut.
Created in NX8.5.0.
License requirements : None
| void NXOpen::Features::ShipDesign::CornerCutListItemBuilder::SetCornerPoint | ( | NXOpen::Point * | weldLocation | ) |
Sets the corner point as the cut location.
The corner point is used only when the placement type is using corner.
Created in NX8.5.0.
License requirements : nx_ship_detail ("Ship Detail Design")
- Parameters
-
weldLocation weldlocation
The documentation for this class was generated from the following file:
- Features_ShipDesign_CornerCutListItemBuilder.hxx
