NXOpen::Features::ShipDesign::CopyPasteNewBuilder Class Reference

Represents a Features::ShipDesign::CopyPasteNewBuilder It is used in Ship Building Application. More...

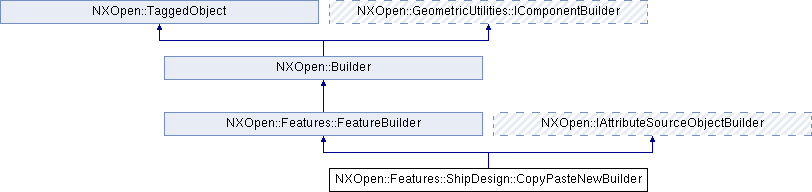

Inheritance diagram for NXOpen::Features::ShipDesign::CopyPasteNewBuilder:

Public Member Functions
virtual NXOpen::ErrorList *	AutoAssignAttributes (const std::vector< NXOpen::NXObject * > &objects)
	Auto assigns the attributes for a given array of objects and returns an array of objects that failed to auto assign.
NXOpen::SelectNXObjectList *	ComponentsToCopy ()
	Returns the components to copy Created in NX8.0.0.
void	CreateLogicalObjects (std::vector< NXOpen::PDM::LogicalObject * > &logicalObjects)
	Creates the pre-creation logical objects Created in NX8.5.0.
NXOpen::SelectNXObject *	SelectionFrom ()
	Returns the From geometry Created in NX8.0.0.
NXOpen::SelectNXObjectList *	SelectionTo ()
	Returns the To geometry Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::CopyPasteNewBuilder It is used in Ship Building Application.

The operation copies one or more components and pastes them as new parts while re-parenting and maintaining WAVE links
To create a new instance of this class, use Features::ShipCollection::CreateCopyPasteNewBuilder

Created in NX8.0.0.

Member Function Documentation

virtual NXOpen::ErrorList* NXOpen::Features::ShipDesign::CopyPasteNewBuilder::AutoAssignAttributes ( const std::vector< NXOpen::NXObject * > &  objects )

virtual

Auto assigns the attributes for a given array of objects and returns an array of objects that failed to auto assign.

Returns

Created in NX8.5.0.

License requirements : None

Parameters

objects

objects

Implements NXOpen::IAttributeSourceObjectBuilder.

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::CopyPasteNewBuilder::ComponentsToCopy

(

)

Returns the components to copy
Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

void NXOpen::Features::ShipDesign::CopyPasteNewBuilder::CreateLogicalObjects

(

std::vector< NXOpen::PDM::LogicalObject * > &

logicalObjects

)

Creates the pre-creation logical objects
Created in NX8.5.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

logicalObjects

logicalobjects

NXOpen::SelectNXObject* NXOpen::Features::ShipDesign::CopyPasteNewBuilder::SelectionFrom

(

)

Returns the From geometry
Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::CopyPasteNewBuilder::SelectionTo

(

)

Returns the To geometry
Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_CopyPasteNewBuilder.hxx
