NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder Class Reference

Represents a @link Features::ShipDesign::ConceptFromSpreadsheet Features::ShipDesign::ConceptFromSpreadsheet@endlink  builder
 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateConceptFromSpreadsheetBuilder  Features::ShipCollection::CreateConceptFromSpreadsheetBuilder @endlink  <br>

Default values. More...

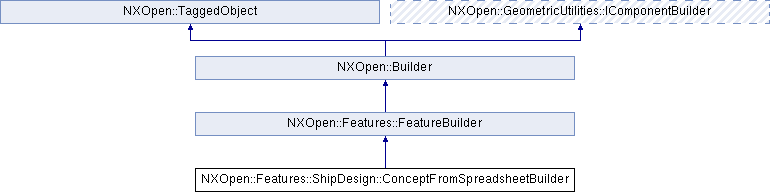

Inheritance diagram for NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder:

Public Member Functions
NXString	ConceptPart ()
	Returns the concept part file name Created in NX8.5.0.
bool	CreateConcept ()
	Returns the toggle to control creating concept part Created in NX8.5.0.
NXOpen::Features::ShipDesign::ReadDataSetBuilder *	ReadDataSet ()
	Returns the Data Set Builder for reading data sets from Team Center Created in NX8.5.0.
void	SetConceptPart (const NXString &filename)
	Sets the concept part file name Created in NX8.5.0.
void	SetConceptPart (const char *filename)
	Sets the concept part file name Created in NX8.5.0.
void	SetCreateConcept (bool createConcept)
	Sets the toggle to control creating concept part Created in NX8.5.0.
NXOpen::SelectBody *	ShipBody ()
	Returns the ship body.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::ShipDesign::ConceptFromSpreadsheet Features::ShipDesign::ConceptFromSpreadsheet@endlink  builder
 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateConceptFromSpreadsheetBuilder  Features::ShipCollection::CreateConceptFromSpreadsheetBuilder @endlink  <br>

Default values.

Property	Value
CreateConcept	0
ReadDataSet.CreateDataSetToggle	0
ReadDataSet.NativeToggle	0

Created in NX8.5.0.

Member Function Documentation

NXString NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder::ConceptPart

(

)

Returns the concept part file name
Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder::CreateConcept

(

)

Returns the toggle to control creating concept part
Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::ReadDataSetBuilder* NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder::ReadDataSet

(

)

Returns the Data Set Builder for reading data sets from Team Center
Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder::SetConceptPart

(

const NXString &

filename

)

Sets the concept part file name
Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

filename

filename

void NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder::SetConceptPart

(

const char *

filename

)

Sets the concept part file name
Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

filename

filename

void NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder::SetCreateConcept

(

bool

createConcept

)

Sets the toggle to control creating concept part
Created in NX8.5.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

createConcept

createconcept

NXOpen::SelectBody* NXOpen::Features::ShipDesign::ConceptFromSpreadsheetBuilder::ShipBody

(

)

Returns the ship body.

Created in NX8.5.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_ConceptFromSpreadsheetBuilder.hxx
