Represents a Bend Taper feature builder
 <br> To create a new instance of this class, use @link Features::SheetMetal::SheetmetalManager::CreateBendTaperBuilder  Features::SheetMetal::SheetmetalManager::CreateBendTaperBuilder @endlink  <br>

Default values. More...

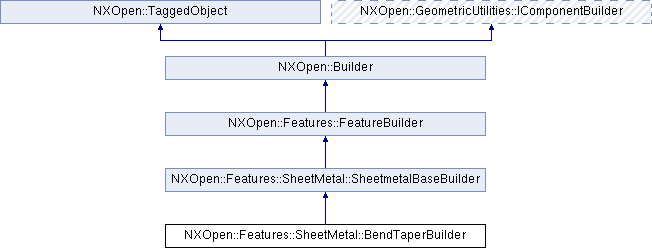

Inheritance diagram for NXOpen::Features::SheetMetal::BendTaperBuilder:

Public Types
enum	BendTaperInputMethod { BendTaperInputMethodAngle, BendTaperInputMethodDistance }
	This enum represents the input methods for the bend taper. More...

enum	BendTaperSides { BendTaperSidesBoth, BendTaperSidesSide1, BendTaperSidesSide2, BendTaperSidesSymmetric }
	This enum represents the taper sides options for the bend taper. More...

enum	BendTaperType { BendTaperTypeLinear, BendTaperTypeTangent, BendTaperTypeSquare }
	This enum represents the bend taper types for the bend taper. More...

enum	ChainingType { ChainingTypeBendOnly, ChainingTypeBendFace, ChainingTypeBendFaceChain }
	This enum represents the chaining options for the bend taper. More...

enum	WebTaperType { WebTaperTypeNone, WebTaperTypeFace, WebTaperTypeFaceChain }
	This enum represents the web taper types for the bend taper. More...

Public Member Functions
NXOpen::Expression *	BendTaperAngle1 ()
	Returns the bend taper angle1 Created in NX6.0.0.

NXOpen::Expression *	BendTaperAngle2 ()
	Returns the bend taper angle2 Created in NX6.0.0.

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod	BendTaperInputMethod1 ()
	Returns the input method for the Side 1 Created in NX8.5.0.

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod	BendTaperInputMethod2 ()
	Returns the input method for the Side 2 Created in NX8.5.0.

NXOpen::ScCollector *	BendTaperSelectBendFace ()
	Returns the bend taper select bend face.

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType	BendTaperType1 ()
	Returns the bend taper type for Side 1 Created in NX8.5.0.

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType	BendTaperType2 ()
	Returns the bend taper type for Side 2 Created in NX8.5.0.

NXOpen::Features::SheetMetal::BendTaperBuilder::ChainingType	Chaining ()
	Returns the chaining

NXOpen::Expression *	EndRadius1 ()
	Returns the end radius for the Side 1 Created in NX8.5.0.

NXOpen::Expression *	EndRadius2 ()
	Returns the end radius for the Side 2 Created in NX8.5.0.

bool	InferRadius1 ()
	Returns the infer radius flag for the Side 1 Created in NX8.5.0.

bool	InferRadius2 ()
	Returns the infer radius flag for the Side 2 Created in NX8.5.0.

bool	ReverseTaperDirection ()
	Returns the flag indication the reverse taper direction Created in NX6.0.0.

void	SetBendTaperInputMethod1 (NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod bendTaperInputMethod1)
	Sets the input method for the Side 1 Created in NX8.5.0.

void	SetBendTaperInputMethod2 (NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod bendTaperInputMethod2)
	Sets the input method for the Side 2 Created in NX8.5.0.

void	SetBendTaperType1 (NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType bendTaperType1)
	Sets the bend taper type for Side 1 Created in NX8.5.0.

void	SetBendTaperType2 (NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType bendTaperType2)
	Sets the bend taper type for Side 2 Created in NX8.5.0.

void	SetChaining (NXOpen::Features::SheetMetal::BendTaperBuilder::ChainingType chaining)
	Sets the chaining

void	SetInferRadius1 (bool inferRadius1)
	Sets the infer radius flag for the Side 1 Created in NX8.5.0.

void	SetInferRadius2 (bool inferRadius2)
	Sets the infer radius flag for the Side 2 Created in NX8.5.0.

void	SetReverseTaperDirection (bool reverseTaperDirection)
	Sets the flag indication the reverse taper direction Created in NX6.0.0.

void	SetTaperSides (NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperSides taperSides)
	Sets the taper sides Created in NX6.0.0.

void	SetWebTaperType1 (NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType webTaperType1)
	Sets the web taper type for the Side 1 Created in NX8.5.0.

void	SetWebTaperType2 (NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType webTaperType2)
	Sets the web taper type for the Side 2 Created in NX8.5.0.

NXOpen::Expression *	StartRadius1 ()
	Returns the start radius for the Side 1 Created in NX8.5.0.

NXOpen::Expression *	StartRadius2 ()
	Returns the start radius for the Side 2 Created in NX8.5.0.

NXOpen::NXObject *	StationaryEntity ()
	Returns the stationary entity, can be an edge or a face.

NXOpen::Expression *	TaperDistance1 ()
	Returns the taper distance for the Side 1 Created in NX8.5.0.

NXOpen::Expression *	TaperDistance2 ()
	Returns the taper distance for the Side 2 Created in NX8.5.0.

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperSides	TaperSides ()
	Returns the taper sides Created in NX6.0.0.

NXOpen::Expression *	WebTaperAngle1 ()
	Returns the web taper angle1 Created in NX6.0.0.

NXOpen::Expression *	WebTaperAngle2 ()
	Returns the web taper angle2 Created in NX6.0.0.

NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType	WebTaperType1 ()
	Returns the web taper type for the Side 1 Created in NX8.5.0.

NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType	WebTaperType2 ()
	Returns the web taper type for the Side 2 Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Features::SheetMetal::SheetmetalBaseBuilder
NXOpen::Features::SheetMetal::ApplicationContext	GetApplicationContext ()
	Get the application context.

void	SetApplicationContext (NXOpen::Features::SheetMetal::ApplicationContext appContext)
	Set the application context.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Bend Taper feature builder
 <br> To create a new instance of this class, use @link Features::SheetMetal::SheetmetalManager::CreateBendTaperBuilder  Features::SheetMetal::SheetmetalManager::CreateBendTaperBuilder @endlink  <br>

Default values.

Property

Value

BendTaperAngle1.Value

10

BendTaperAngle2.Value

10

BendTaperInputMethod1

Angle

BendTaperInputMethod2

Angle

BendTaperType1

Linear

BendTaperType2

Linear

Chaining (deprecated)

BendOnly

EndRadius1.Value

2 (millimeters part), 0.1 (inches part)

EndRadius2.Value

2 (millimeters part), 0.1 (inches part)

InferRadius1

1

InferRadius2

1

StartRadius1.Value

2 (millimeters part), 0.1 (inches part)

StartRadius2.Value

2 (millimeters part), 0.1 (inches part)

TaperDistance1.Value

5.0 (millimeters part), 0.3 (inches part)

TaperDistance2.Value

5.0 (millimeters part), 0.3 (inches part)

TaperSides

Both

WebTaperAngle1.Value

0

WebTaperAngle2.Value

0

WebTaperType1

None

WebTaperType2

None

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod

This enum represents the input methods for the bend taper.

Enumerator:

BendTaperInputMethodAngle	Angle.
BendTaperInputMethodDistance	Distance.

enum NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperSides

This enum represents the taper sides options for the bend taper.

Enumerator:

BendTaperSidesBoth	Both Sides.
BendTaperSidesSide1	Side 1 only.
BendTaperSidesSide2	Side 2 only.
BendTaperSidesSymmetric	Symmetric. Side 1 = Side 2

enum NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType

This enum represents the bend taper types for the bend taper.

Enumerator:

BendTaperTypeLinear	Linear.
BendTaperTypeTangent	Tangent.
BendTaperTypeSquare	Square.

enum NXOpen::Features::SheetMetal::BendTaperBuilder::ChainingType

This enum represents the chaining options for the bend taper.

Deprecated:: Deprecated in NX8.5.0. Use WebTaperType instead.

Enumerator:

ChainingTypeBendOnly	Bend Only.
ChainingTypeBendFace	Bend and Face.
ChainingTypeBendFaceChain	Bend and Face Chain.

enum NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType

This enum represents the web taper types for the bend taper.

Enumerator:

WebTaperTypeNone	None.
WebTaperTypeFace	Face.
WebTaperTypeFaceChain	Face Chain.

Member Function Documentation

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperAngle1 ( )

Returns the bend taper angle1
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperAngle2 ( )

Returns the bend taper angle2
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod1 ( )

Returns the input method for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod2 ( )

Returns the input method for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::ScCollector* NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperSelectBendFace ( )

Returns the bend taper select bend face.

Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType1 ( )

Returns the bend taper type for Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType2 ( )

Returns the bend taper type for Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::BendTaperBuilder::ChainingType NXOpen::Features::SheetMetal::BendTaperBuilder::Chaining ( )

Returns the chaining

Deprecated:: Deprecated in NX8.5.0.

Use WebTaperType1 and WebTaperType1 Set WebTaperType1 and WebTaperType2 and WebTaperType2 Set WebTaperType2 instead.

Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::EndRadius1 ( )

Returns the end radius for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::EndRadius2 ( )

Returns the end radius for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

bool NXOpen::Features::SheetMetal::BendTaperBuilder::InferRadius1 ( )

Returns the infer radius flag for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

bool NXOpen::Features::SheetMetal::BendTaperBuilder::InferRadius2 ( )

Returns the infer radius flag for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

bool NXOpen::Features::SheetMetal::BendTaperBuilder::ReverseTaperDirection ( )

Returns the flag indication the reverse taper direction
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetBendTaperInputMethod1 ( NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod bendTaperInputMethod1 )

Sets the input method for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

bendTaperInputMethod1 The input method can be Angle and Distance

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetBendTaperInputMethod2 ( NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperInputMethod bendTaperInputMethod2 )

Sets the input method for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

bendTaperInputMethod2 The input method can be Angle and Distance

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetBendTaperType1 ( NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType bendTaperType1 )

Sets the bend taper type for Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

bendTaperType1 The bend taper type can be Linear, Tangent and Square.

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetBendTaperType2 ( NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperType bendTaperType2 )

Sets the bend taper type for Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

bendTaperType2 The bend taper type can be Linear, Tangent and Square.

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetChaining ( NXOpen::Features::SheetMetal::BendTaperBuilder::ChainingType chaining )

Sets the chaining

Deprecated:: Deprecated in NX8.5.0.

Use WebTaperType1 and WebTaperType1 Set WebTaperType1 and WebTaperType2 and WebTaperType2 Set WebTaperType2 instead.

Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

chaining The chaining can be Bend Only, Bend and Face, and Bend and Face Chain.

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetInferRadius1 ( bool inferRadius1 )

Sets the infer radius flag for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

inferRadius1 inferradius1

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetInferRadius2 ( bool inferRadius2 )

Sets the infer radius flag for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

inferRadius2 inferradius2

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetReverseTaperDirection ( bool reverseTaperDirection )

Sets the flag indication the reverse taper direction
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

reverseTaperDirection reversetaperdirection

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetTaperSides ( NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperSides taperSides )

Sets the taper sides
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

taperSides The taperSides can be Both, Side 1, Side 2, and Symmetric.

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetWebTaperType1 ( NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType webTaperType1 )

Sets the web taper type for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

webTaperType1 the web taper type can be None, Face and Face Chain

void NXOpen::Features::SheetMetal::BendTaperBuilder::SetWebTaperType2 ( NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType webTaperType2 )

Sets the web taper type for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

webTaperType2 the web taper type can be None, Face and Face Chain

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::StartRadius1 ( )

Returns the start radius for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::StartRadius2 ( )

Returns the start radius for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::NXObject* NXOpen::Features::SheetMetal::BendTaperBuilder::StationaryEntity ( )

Returns the stationary entity, can be an edge or a face.

Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::TaperDistance1 ( )

Returns the taper distance for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::TaperDistance2 ( )

Returns the taper distance for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::BendTaperBuilder::BendTaperSides NXOpen::Features::SheetMetal::BendTaperBuilder::TaperSides ( )

Returns the taper sides
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperAngle1 ( )

Returns the web taper angle1
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Expression* NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperAngle2 ( )

Returns the web taper angle2
Created in NX6.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType1 ( )

Returns the web taper type for the Side 1
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType NXOpen::Features::SheetMetal::BendTaperBuilder::WebTaperType2 ( )

Returns the web taper type for the Side 2
Created in NX8.5.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

The documentation for this class was generated from the following file:

Features_SheetMetal_BendTaperBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
