NXOpen::Features::Hole Class Reference

Represents a Hole feature
To create or edit an instance of this class, use Features::HoleFeatureBuilder

Created in NX3.0.0. More...

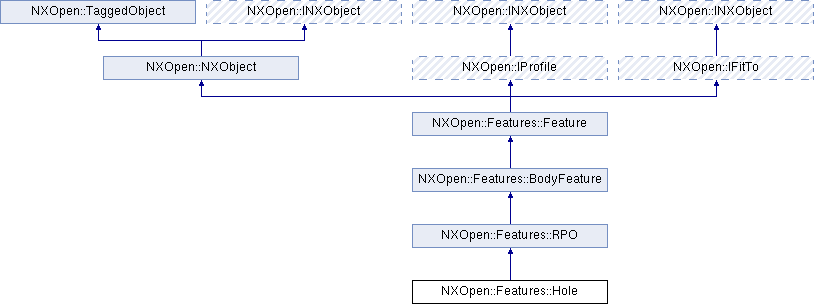

Inheritance diagram for NXOpen::Features::Hole:

Public Types
enum	Subtype { SubtypeSimple, SubtypeCounterbore, SubtypeCountersink }
	Represents the subtype of the hole. More...

Public Member Functions
NXOpen::Expression *	CounterboreDepth ()
	Returns the counterbore depth of the hole.
NXOpen::Expression *	CounterboreDiameter ()
	Returns the counterbore diameter of the hole.
NXOpen::Expression *	CountersinkAngle ()
	Returns the countersink angle of the hole.
NXOpen::Expression *	CountersinkDiameter ()
	Returns the countersink diameter of the hole.
NXOpen::Expression *	Depth ()
	Returns the depth of the hole.
NXOpen::Expression *	Diameter ()
	Returns the diameter of the hole.
void	GetCounterboreHole (NXOpen::Expression **diameter, NXOpen::Expression **depth, NXOpen::Expression **tipAngle, NXOpen::Expression **cboreDiameter, NXOpen::Expression **cboreDepth)
	Retrieves parameters of counterbore hole.
void	GetCountersinkHole (NXOpen::Expression **diameter, NXOpen::Expression **depth, NXOpen::Expression **tipAngle, NXOpen::Expression **csinkDiameter, NXOpen::Expression **csinkAngle)
	Retrieves parameters of countersink hole.
std::vector < NXOpen::PositioningDimension * >	GetPositioningDimensions ()
	Returns array of positioning dimensions attached to the hole.
void	GetSimpleHole (NXOpen::Expression **diameter, NXOpen::Expression **depth, NXOpen::Expression **tipAngle)
	Retrieves parameters of simple hole.
NXOpen::Features::Hole::Subtype	GetSubtype ()
	Returns the subtype of the hole.
NXOpen::ISurface *	PlacementFace ()
	Returns the placement face of the hole.
NXOpen::ISurface *	ThruFace ()
	Returns the thru face of the hole.
NXOpen::Expression *	TipAngle ()
	Returns the tip angle of the hole.

Detailed Description

Represents a Hole feature
To create or edit an instance of this class, use Features::HoleFeatureBuilder

Created in NX3.0.0.

Member Enumeration Documentation

enum NXOpen::Features::Hole::Subtype

Represents the subtype of the hole.

Enumerator:

SubtypeSimple	Simple hole.
SubtypeCounterbore	Counterbore hole.
SubtypeCountersink	Countersink hole.

Member Function Documentation

NXOpen::Expression* NXOpen::Features::Hole::CounterboreDepth

(

)

Returns the counterbore depth of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::Expression* NXOpen::Features::Hole::CounterboreDiameter

(

)

Returns the counterbore diameter of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::Expression* NXOpen::Features::Hole::CountersinkAngle

(

)

Returns the countersink angle of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::Expression* NXOpen::Features::Hole::CountersinkDiameter

(

)

Returns the countersink diameter of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::Expression* NXOpen::Features::Hole::Depth

(

)

Returns the depth of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::Expression* NXOpen::Features::Hole::Diameter

(

)

Returns the diameter of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

void NXOpen::Features::Hole::GetCounterboreHole	(	NXOpen::Expression **	diameter,
		NXOpen::Expression **	depth,
		NXOpen::Expression **	tipAngle,
		NXOpen::Expression **	cboreDiameter,
		NXOpen::Expression **	cboreDepth
	)

Retrieves parameters of counterbore hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

diameter	Expression for diameter
depth	Expression for depth
tipAngle	Expression for tip angle
cboreDiameter	Expression for counterbore diameter
cboreDepth	Expression for counterbore depth

void NXOpen::Features::Hole::GetCountersinkHole	(	NXOpen::Expression **	diameter,
		NXOpen::Expression **	depth,
		NXOpen::Expression **	tipAngle,
		NXOpen::Expression **	csinkDiameter,
		NXOpen::Expression **	csinkAngle
	)

Retrieves parameters of countersink hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

diameter	Expression for diameter
depth	Expression for depth
tipAngle	Expression for tip angle
csinkDiameter	Expression for countersink diameter
csinkAngle	Expression for countersink angle

std::vector<NXOpen::PositioningDimension *> NXOpen::Features::Hole::GetPositioningDimensions

(

)

Returns array of positioning dimensions attached to the hole.

@return

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

void NXOpen::Features::Hole::GetSimpleHole	(	NXOpen::Expression **	diameter,
		NXOpen::Expression **	depth,
		NXOpen::Expression **	tipAngle
	)

Retrieves parameters of simple hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

Parameters

diameter	Expression for diameter
depth	Expression for depth
tipAngle	Expression for tip angle

NXOpen::Features::Hole::Subtype NXOpen::Features::Hole::GetSubtype

(

)

Returns the subtype of the hole.

@return  Subype of the hole, simple, counterbore, or countersink

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::ISurface* NXOpen::Features::Hole::PlacementFace

(

)

Returns the placement face of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::ISurface* NXOpen::Features::Hole::ThruFace

(

)

Returns the thru face of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

NXOpen::Expression* NXOpen::Features::Hole::TipAngle

(

)

Returns the tip angle of the hole.

Created in NX3.0.0.

License requirements : features_modeling ("FEATURES MODELING"), solid_modeling ("SOLIDS MODELING")

---

The documentation for this class was generated from the following file:

• Features_Hole.hxx
