NXOpen::Drawings::SectionView Class Reference

Represents a Section View. More...

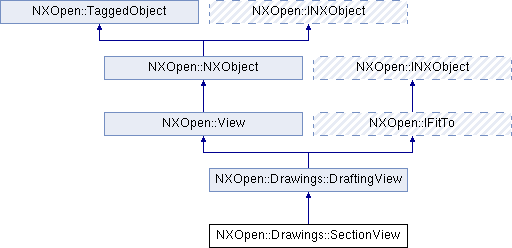

Inheritance diagram for NXOpen::Drawings::SectionView:

Additional Inherited Members
Public Types inherited from NXOpen::View
enum	Canned {   CannedTop, CannedFront, CannedRight, CannedBack,   CannedBottom, CannedLeft, CannedIsometric, CannedTrimetric }
	Describes a simplified indexing scheme for accessing canned views with interfaces that use this enum as a parameter. More...
enum	RenderingStyleType {   RenderingStyleTypeShadedWithEdges, RenderingStyleTypeShadedWithBodyColorEdges, RenderingStyleTypeShaded, RenderingStyleTypeWireframeWithDimEdges,   RenderingStyleTypeWireframeWithHiddenEdges, RenderingStyleTypeWireframeWithDashedEdges, RenderingStyleTypeStudio, RenderingStyleTypeFaceAnalysis,   RenderingStyleTypePartiallyShaded, RenderingStyleTypeStaticWireframe }
	Describes the rendering style for geometry displayed in the view. More...
enum	ScaleAdjustment { ScaleAdjustmentFit, ScaleAdjustmentCurrent, ScaleAdjustmentSaved }
	Describes simple, predefined adjustments that may be applied to a view's scale while another operation is performed, in conjunction, on the view. More...
enum	ScaleFactor { ScaleFactorHalfScale, ScaleFactorDoubleScale, ScaleFactorReduceScale, ScaleFactorIncreaseScale }
	Describes the relative scales to which a view can be set. More...
enum	ShowOrHideType { ShowOrHideTypeShowOnly, ShowOrHideTypeHideOnly, ShowOrHideTypeBothShowAndHide, ShowOrHideTypeInvertShownAndHidden }
	Specifies whether a show or hide operation, or both, has just been done. More...
Public Member Functions inherited from NXOpen::Drawings::DraftingView
void	ActivateForSketching ()
	Sets this drafting view as the active sketch view.
void	CheckForInvalidParentModelView ()
	Checks the view's validity by looking at the parent model view Created in NX8.0.3.
void	Commit ()
	Commits and applies all the settings like Drawings::ViewStyle to the View.This must be called on the view after creation or edit to reflect all the settings on it Created in NX5.0.0.
NXOpen::Drawings::DraftingBodyCollection *	DraftingBodies ()
	Returns the DraftingBodyCollection Created in NX8.5.0.
void	GetBrokenViewInternalViews (std::vector< NXOpen::Drawings::DraftingView * > &views)
	Returns an array of views representing the internal views of broken view.
NXOpen::Point3d	GetDrawingReferencePoint ()
	Returns the view origin(location).
void	GetToolMarkers (std::vector< NXOpen::Drawings::FlatPatternObject * > &markers)
	Returns an array of pointers to objects representing the tool markers in the view.
void	HideComponents (const std::vector< NXOpen::NXObject * > &components)
	Sets the view origin at the provided location.
void	HideViewBorder ()
	Hide the view border of the view.
bool	IsActiveForSketching ()
	Returns true if this view is the active sketch view.
bool	IsBroken ()
	Returns the status on whether this DraftingView is broken.
bool	IsOutOfDate ()
	Returns the status on whether this DraftingView is out of date.
void	MoveView (const NXOpen::Point3d &drawingReferencePoint)
	Sets the view origin at the provided location.
void	RestoreViewBorder ()
	Restores the view border from the dashed line to the normal line for cut operation Created in NX8.0.0.
void	SetDrawingReferencePoint (const NXOpen::Point3d &drawingReferencePoint)
	Sets the view origin at the provided location.
void	ShowComponents (const std::vector< NXOpen::NXObject * > &components)
	Sets the view origin at the provided location.
void	ShowViewBorder ()
	Show the view border of the view.
NXOpen::Drawings::ViewStyle *	Style ()
	Returns object to View Style Created in NX3.0.0.
void	Update ()
	Updates the drawing member view on a drawing.
NXOpen::Drawings::ViewBreakCollection *	ViewBreaks ()
	Returns the ViewBreakCollection instance belonging to this view Created in NX7.5.0.

Detailed Description

Represents a Section View.

To create or edit an instance of this class, use Drawings::SectionViewBuilder

Created in NX6.0.0.

---

The documentation for this class was generated from the following file:

• Drawings_SectionView.hxx
