NXOpen::Drawings::EditSectionLineSettingsBuilder Class Reference

Represents a Drawings::EditSectionLineSettingsBuilder builder. More...

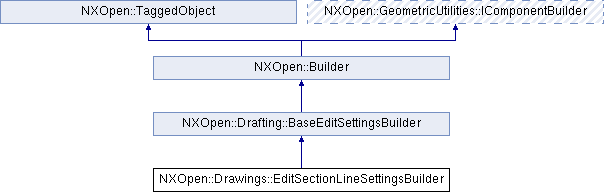

Inheritance diagram for NXOpen::Drawings::EditSectionLineSettingsBuilder:

Public Member Functions
void	InheritSettingsFromCustomerDefault ()
	Inherit Settings From Customer Default Created in NX9.0.0.
void	InheritSettingsFromPreferences ()
	Inherit Settings From Preference Created in NX9.0.0.
void	InheritSettingsFromSelectedObjects (NXOpen::Drawings::SectionLine *selectedObject)
	Inherit Settings From Selected Objects Created in NX9.0.0.
NXOpen::Drawings::ViewCommonViewLabelBuilder *	ViewCommonViewLabel ()
	Returns the view common label builder Created in NX9.0.0.
NXOpen::Drawings::ViewSectionLineBuilder *	ViewSectionLine ()
	Returns the view section line builder Created in NX9.0.0.

Detailed Description

Represents a Drawings::EditSectionLineSettingsBuilder builder.

   It provides an interface for editing section line style settings.
   This can be used to change one specific section line or all section lines.  <br> To create a new instance of this class, use @link Drafting::SettingsManager::CreateDrawingEditSectionLineSettingsBuilder  Drafting::SettingsManager::CreateDrawingEditSectionLineSettingsBuilder @endlink  <br>

Created in NX9.0.0.

Member Function Documentation

void NXOpen::Drawings::EditSectionLineSettingsBuilder::InheritSettingsFromCustomerDefault

(

)

Inherit Settings From Customer Default
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

void NXOpen::Drawings::EditSectionLineSettingsBuilder::InheritSettingsFromPreferences

(

)

Inherit Settings From Preference
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

void NXOpen::Drawings::EditSectionLineSettingsBuilder::InheritSettingsFromSelectedObjects

(

NXOpen::Drawings::SectionLine *

selectedObject

)

Inherit Settings From Selected Objects
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

selectedObject

The selected section line instance object. NULL is not allowed.

NXOpen::Drawings::ViewCommonViewLabelBuilder* NXOpen::Drawings::EditSectionLineSettingsBuilder::ViewCommonViewLabel

(

)

Returns the view common label builder
Created in NX9.0.0.

License requirements : None

NXOpen::Drawings::ViewSectionLineBuilder* NXOpen::Drawings::EditSectionLineSettingsBuilder::ViewSectionLine

(

)

Returns the view section line builder
Created in NX9.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Drawings_EditSectionLineSettingsBuilder.hxx
