Used to import a CGM file into the work part. More...

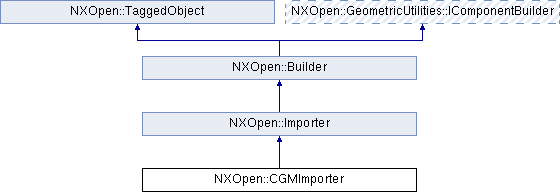

Inheritance diagram for NXOpen::CGMImporter:
Public Member Functions | |
| bool | Crosshatching () |
| Returns the crosshatching flag, true if crosshatching should be done. | |
| void | SetCrosshatching (bool crosshatching) |
| Sets the crosshatching flag, true if crosshatching should be done. | |
| void | SetUseExportSessionWidths (bool useCgmExportSessionWidths) |
| Sets Created in NX8.5.0. | |
| bool | UseExportSessionWidths () |
| Returns Created in NX8.5.0. | |
 Public Member Functions inherited from NXOpen::Importer | |
| NXString | FileName () |
| Returns the name of the file containing the data to import. | |
| void | SetFileName (const NXString &fileName) |
| Sets the name of the file containing the data to import. | |
| void | SetFileName (const char *fileName) |
| Sets the name of the file containing the data to import. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Used to import a CGM file into the work part.
To obtain an instance of this class use ImportManager::CreateCgmImporter .
Created in NX7.5.0.
Member Function Documentation
| bool NXOpen::CGMImporter::Crosshatching | ( | ) |
Returns the crosshatching flag, true if crosshatching should be done.
Created in NX7.5.0.
License requirements : None
| void NXOpen::CGMImporter::SetCrosshatching | ( | bool | crosshatching | ) |
Sets the crosshatching flag, true if crosshatching should be done.
Created in NX7.5.0.
License requirements : None
- Parameters
-
crosshatching crosshatching
| void NXOpen::CGMImporter::SetUseExportSessionWidths | ( | bool | useCgmExportSessionWidths | ) |
Sets
Created in NX8.5.0.
License requirements : None
- Parameters
-
useCgmExportSessionWidths use cgm export session widths
| bool NXOpen::CGMImporter::UseExportSessionWidths | ( | ) |
Returns
Created in NX8.5.0.
License requirements : None
The documentation for this class was generated from the following file:
- CGMImporter.hxx
