Represents a WedmOrientGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateWedmOrientGeomBuilder
Created in NX5.0.0.
More...

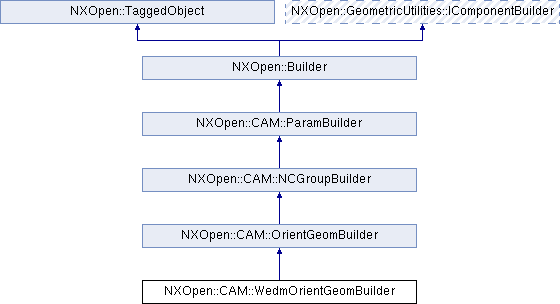

Inheritance diagram for NXOpen::CAM::WedmOrientGeomBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::CAM::OrientGeomBuilder | |
| enum | CsysPurposeModes { CsysPurposeModesLocal, CsysPurposeModesMain } |
| The CSYS purpose mode options Created in NX5.0.0. More... | |
| enum | SpecialOutputModes { SpecialOutputModesNone, SpecialOutputModesUseMainMcs, SpecialOutputModesFixtureOffset, SpecialOutputModesCsysRotation } |
| The special output mode options Created in NX5.0.0. More... | |
| enum | ToolAxisModes { ToolAxisModesPositiveZOfMcs, ToolAxisModesFixedAxis, ToolAxisModesAllAxes } |
| the tool axis mode options More... | |
| Public Member Functions inherited from NXOpen::CAM::OrientGeomBuilder | |
| NXOpen::CAM::InheritableIntBuilder * | FixtureOffsetBuilder () |
| Returns the Fixture Offset builder Created in NX5.0.0. | |
| NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes | GetCsysPurposeMode () |
| Returns the CSYS purpose. | |
| NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes | GetSpecialOutputMode () |
| Returns the Special Output. | |
| NXOpen::CAM::OrientGeomBuilder::ToolAxisModes | GetToolAxisMode () |
| Returns the tool axis mode. | |
| NXOpen::CAM::LayoutCiBuilder * | LayoutCiBuilder () |
| Returns the Save Layer/Layout builder Created in NX5.0.0. | |
| bool | LinkRcsToMcs () |
| Returns the link RCS to MCS Created in NX5.0.0. | |
| NXOpen::CartesianCoordinateSystem * | Mcs () |
| Returns the MCS Created in NX5.0.0. | |
| NXOpen::CartesianCoordinateSystem * | Rcs () |
| Returns the RCS Created in NX5.0.0. | |
| void | SetCsysPurposeMode (NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes csysPurposeMode) |
| Sets the CSYS purpose Created in NX5.0.0. | |
| void | SetLinkRcsToMcs (bool linkRcsToMcs) |
| Sets the link RCS to MCS Created in NX5.0.0. | |
| void | SetMcs (NXOpen::CartesianCoordinateSystem *mcs) |
| Sets the MCS Created in NX5.0.0. | |
| void | SetRcs (NXOpen::CartesianCoordinateSystem *rcs) |
| Sets the RCS Created in NX5.0.0. | |
| void | SetSpecialOutputMode (NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes specialOutputMode) |
| Sets the Special Output Created in NX5.0.0. | |
| void | SetToolAxisMode (NXOpen::CAM::OrientGeomBuilder::ToolAxisModes toolAxisMode) |
| Sets the tool axis mode Created in NX5.0.0. | |
| void | SetToolAxisVector (NXOpen::NXObject *toolAxisVector) |
| Sets the tool axis vector Created in NX5.0.0. | |
| NXOpen::NXObject * | ToolAxisVector () |
| Returns the tool axis vector Created in NX5.0.0. | |
Detailed Description
Represents a WedmOrientGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateWedmOrientGeomBuilder
Created in NX5.0.0.
The documentation for this class was generated from the following file:
- CAM_WedmOrientGeomBuilder.hxx
