Represents a T Tool Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateTToolBuilder
Created in NX5.0.0.
More...

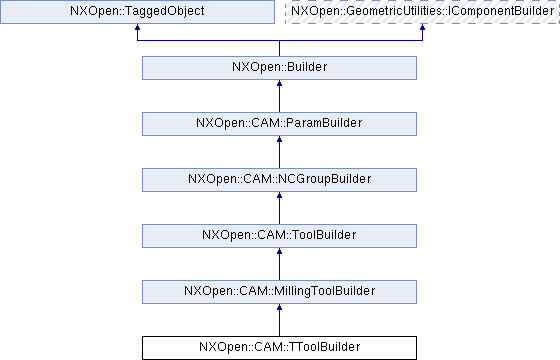

Inheritance diagram for NXOpen::CAM::TToolBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::CAM::MillingToolBuilder | |
| enum | ToolDirectionTypes { ToolDirectionTypesNone, ToolDirectionTypesClw, ToolDirectionTypesCclw } |
| Available types for tool direction milling tool. More... | |
| Public Member Functions inherited from NXOpen::CAM::MillingToolBuilder | |
| bool | CoolantThrough () |
| Returns the coolant through parameter Created in NX7.5.0. | |
| NXOpen::CAM::InheritableToolDepBuilder * | HelicalDiameter () |
| Returns the helical diameter Created in NX8.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | HelicalRampAngle () |
| Returns the ramp angle Created in NX8.0.0. | |
| NXOpen::CAM::HolderSectionBuilder * | HolderSectionBuilder () |
| Returns the holder sections builder Created in NX5.0.0. | |
| NXOpen::CAM::InheritableToolDepBuilder * | MaxCutWidth () |
| Returns the max cut width Created in NX8.0.0. | |
| NXOpen::CAM::MillingTrackpointBuilder * | MillingTrackpointBuilder () |
| Returns the mill trackpoint builder Created in NX6.0.0. | |
| NXOpen::CAM::InheritableToolDepBuilder * | MinRampLength () |
| Returns the min ramp length Created in NX8.0.0. | |
| void | SetCoolantThrough (bool coolantThrough) |
| Sets the coolant through parameter Created in NX7.5.0. | |
| void | SetTlCutcomReg (int tlCutcomRegValue) |
| Sets the Cutcom Register Created in NX5.0.0. | |
| void | SetTlDirection (NXOpen::CAM::MillingToolBuilder::ToolDirectionTypes tlDirection) |
| Sets the tool direction Created in NX5.0.0. | |
| void | SetTlHolderDescription (const NXString &tlHolderDescriptionValue) |
| Sets the Holder Description Created in NX5.0.0. | |
| void | SetTlHolderDescription (const char *tlHolderDescriptionValue) |
| Sets the Holder Description Created in NX5.0.0. | |
| void | SetTlHolderLibref (const NXString &tlHolderLibrefValue) |
| Sets the Holder Library Reference Created in NX5.0.0. | |
| void | SetTlHolderLibref (const char *tlHolderLibrefValue) |
| Sets the Holder Library Reference Created in NX5.0.0. | |
| void | SetUseTaperedShank (bool useTaperedShank) |
| Sets the use tapered shank Created in NX8.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TaperedShankDiameterBuilder () |
| Returns the tapered shank diameter Created in NX8.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TaperedShankLengthBuilder () |
| Returns the tapered shank length Created in NX8.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TaperedShankTaperLengthBuilder () |
| Returns the tapered shank taper length Created in NX8.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlAdjRegBuilder () |
| Returns the Adjust Register Created in NX5.0.0. | |
| int | TlCutcomReg () |
| Returns the Cutcom Register Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlCutcomRegBuilder () |
| Returns the Cutcom Register Builder Created in NX6.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlDiameterBuilder () |
| Returns the Tool Diameter builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::MillingToolBuilder::ToolDirectionTypes | TlDirection () |
| Returns the tool direction Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlFluteLnBuilder () |
| Returns the flute length Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlHeightBuilder () |
| Returns the length Created in NX5.0.0. | |
| NXString | TlHolderDescription () |
| Returns the Holder Description Created in NX5.0.0. | |
| NXString | TlHolderLibref () |
| Returns the Holder Library Reference Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlLowCorRadBuilder () |
| Returns the low corner radius Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlNumFlutesBuilder () |
| Returns the Number of Flutes builder (inheritable integer) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlShankDiaBuilder () |
| Returns the Shank Diameter builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlTaperAngBuilder () |
| Returns the Taper Angle builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlUpCorRadBuilder () |
| Returns the up corner radius Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlZMountBuilder () |
| Returns the Z Mount builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlZOffsetBuilder () |
| Returns the Z Offset builder (inheritable double) Created in NX5.0.0. | |
| bool | UseTaperedShank () |
| Returns the use tapered shank Created in NX8.0.0. | |
Detailed Description
Represents a T Tool Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateTToolBuilder
Created in NX5.0.0.
The documentation for this class was generated from the following file:
- CAM_TToolBuilder.hxx
