Represents a ThreadTurning Builder
To create a new instance of this class, use CAM::OperationCollection::CreateThreadTurningBuilder

Created in NX6.0.0. More...

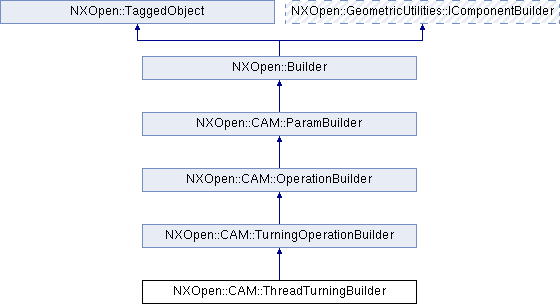

Inheritance diagram for NXOpen::CAM::ThreadTurningBuilder:

Public Types
enum	DepthOptionTypes { DepthOptionTypesRootLine, DepthOptionTypesDepthAndAngle }
	the Depth Option types More...

enum	InfeedLengthTypes { InfeedLengthTypesAuto, InfeedLengthTypesSpecify }
	the Infeed Length Types More...

enum	InfeedModes { InfeedModesNone, InfeedModesAuto, InfeedModesSpecify }
	the Infeed modes More...

Public Types inherited from NXOpen::CAM::TurningOperationBuilder
enum	MotionOutputOptions { MotionOutputOptionsLinearOnly, MotionOutputOptionsCircular, MotionOutputOptionsMachineCycle }
	The motion output options Created in NX6.0.0. More...

enum	TrackingPointType { TrackingPointTypeFixed, TrackingPointTypeRotate, TrackingPointTypeAuto }
	available types for tracking point More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
NXOpen::NXObject *	CrestLine ()
	Returns the Crest Line Created in NX6.0.0.

bool	CrestLineDirection ()
	Returns the Crest Line Direction(Start and End Points) Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	CrestOffset ()
	Returns the crest offset builder Created in NX6.0.0.

NXOpen::CAM::ThreadCutParameters *	CutParameters ()
	Returns the cut parameter object Created in NX6.0.0.

NXOpen::CAM::ThreadTurningBuilder::DepthOptionTypes	DepthOption ()
	Returns the depth option Created in NX6.0.0.

NXOpen::NXObject *	EndLine ()
	Returns the End Line Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	EndOffset ()
	Returns the End Offset Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	InfeedLength ()
	Returns the infeed length Created in NX8.5.0.

NXOpen::CAM::ThreadTurningBuilder::InfeedLengthTypes	InfeedLengthType ()
	Returns the infeed length type Created in NX8.5.0.

NXOpen::CAM::ThreadTurningBuilder::InfeedModes	InfeedMode ()
	Returns the infeed mode Created in NX8.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	InfeedMoveAngle ()
	Returns the infeed move angle Created in NX8.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	InfeedStartLineAngle ()
	Returns the infeed start line angle Created in NX8.5.0.

NXOpen::CAM::NcmTurnThreadBuilder *	NonCuttingBuilder ()
	Returns the non-cutting builder Created in NX6.0.0.

NXOpen::NXObject *	RootLine ()
	Returns the Root Line Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RootOffset ()
	Returns the root offset Created in NX6.0.0.

void	SetCrestLine (NXOpen::NXObject *crestLine)
	Sets the Crest Line Created in NX6.0.0.

void	SetCrestLineDirection (bool crestLineDirection)
	Sets the Crest Line Direction(Start and End Points) Created in NX6.0.0.

void	SetDepthOption (NXOpen::CAM::ThreadTurningBuilder::DepthOptionTypes depthOption)
	Sets the depth option Created in NX6.0.0.

void	SetEndLine (NXOpen::NXObject *endLine)
	Sets the End Line Created in NX6.0.0.

void	SetInfeedLengthType (NXOpen::CAM::ThreadTurningBuilder::InfeedLengthTypes infeedLengthType)
	Sets the infeed length type Created in NX8.5.0.

void	SetInfeedMode (NXOpen::CAM::ThreadTurningBuilder::InfeedModes infeedMode)
	Sets the infeed mode Created in NX8.5.0.

void	SetRootLine (NXOpen::NXObject *rootLine)
	Sets the Root Line Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	StartOffset ()
	Returns the Start Offset Created in NX6.0.0.

NXOpen::CAM::CutAngle *	ThreadAngleBuilder ()
	Returns the thread angle Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder *	TotalDepth ()
	Returns the Total Depth Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::TurningOperationBuilder
NXString	AdditionalCommands ()
	Returns the Additional Commands Created in NX6.0.0.

NXOpen::CAM::FeedsTurnBuilder *	FeedsBuilder ()
	Returns the feeds and speeds builder Created in NX6.0.0.

bool	FlipToolAroundHolder ()
	Returns the Flip Tool Around Holder toggle Created in NX6.0.0.

NXOpen::CAM::LayoutCiBuilder *	LayoutAndLayer ()
	Returns the Layer and Layout Created in NX6.0.0.

NXString	MachineCycleSubroutineName ()
	Returns the machine cycle subroutine name Created in NX8.0.0.

NXOpen::CAM::TurningOperationBuilder::MotionOutputOptions	MotionOutput ()
	Returns the motion output Created in NX6.0.0.

bool	ReorientToolHolder ()
	Returns the Reorient Tool Holder toggle Created in NX6.0.0.

bool	RotateTrackingPoint ()
	Returns the Rotate Tracking Point toggle

void	SetAdditionalCommands (const NXString &additionalCommands)
	Sets the Additional Commands Created in NX6.0.0.

void	SetAdditionalCommands (const char *additionalCommands)
	Sets the Additional Commands Created in NX6.0.0.

void	SetFlipToolAroundHolder (bool machAAxis)
	Sets the Flip Tool Around Holder toggle Created in NX6.0.0.

void	SetMachineCycleSubroutineName (const NXString &machineCycleSubroutineName)
	Sets the machine cycle subroutine name Created in NX8.0.0.

void	SetMachineCycleSubroutineName (const char *machineCycleSubroutineName)
	Sets the machine cycle subroutine name Created in NX8.0.0.

void	SetMotionOutput (NXOpen::CAM::TurningOperationBuilder::MotionOutputOptions motionOutput)
	Sets the motion output Created in NX6.0.0.

void	SetReorientToolHolder (bool reorient)
	Sets the Reorient Tool Holder toggle Created in NX6.0.0.

void	SetRotateTrackingPoint (bool rotate)
	Sets the Rotate Tracking Point toggle

void	SetTrackingPointStatus (NXOpen::CAM::TurningOperationBuilder::TrackingPointType status)
	Sets the tracking point status Created in NX8.5.0.

void	SetUpdateIpw (bool updateIpwMode)
	Sets the update IPW mode Created in NX6.0.0.

void	SetUseMachineCycle (bool machineCycle)
	Sets the Use Machine Cycle toggle Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	ToolHolderAngle ()
	Returns the Tool Holder Angle Created in NX6.0.0.

NXOpen::CAM::TurningOperationBuilder::TrackingPointType	TrackingPointStatus ()
	Returns the tracking point status Created in NX8.5.0.

bool	UpdateIpw ()
	Returns the update IPW mode Created in NX6.0.0.

bool	UseMachineCycle ()
	Returns the Use Machine Cycle toggle Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a ThreadTurning Builder
To create a new instance of this class, use CAM::OperationCollection::CreateThreadTurningBuilder

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::ThreadTurningBuilder::DepthOptionTypes

the Depth Option types

Enumerator:

DepthOptionTypesRootLine	Root Line.
DepthOptionTypesDepthAndAngle	Depth and Angle.

enum NXOpen::CAM::ThreadTurningBuilder::InfeedLengthTypes

the Infeed Length Types

Enumerator:

InfeedLengthTypesAuto	Auto.
InfeedLengthTypesSpecify	Specify.

enum NXOpen::CAM::ThreadTurningBuilder::InfeedModes

the Infeed modes

Enumerator:

InfeedModesNone	None.
InfeedModesAuto	Auto.
InfeedModesSpecify	Specify.

Member Function Documentation

NXOpen::NXObject* NXOpen::CAM::ThreadTurningBuilder::CrestLine ( )

Returns the Crest Line
Created in NX6.0.0.

License requirements : None

bool NXOpen::CAM::ThreadTurningBuilder::CrestLineDirection ( )

Returns the Crest Line Direction(Start and End Points)
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::ThreadTurningBuilder::CrestOffset ( )

Returns the crest offset builder
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::ThreadCutParameters* NXOpen::CAM::ThreadTurningBuilder::CutParameters ( )

Returns the cut parameter object
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::ThreadTurningBuilder::DepthOptionTypes NXOpen::CAM::ThreadTurningBuilder::DepthOption ( )

Returns the depth option
Created in NX6.0.0.

License requirements : None

NXOpen::NXObject* NXOpen::CAM::ThreadTurningBuilder::EndLine ( )

Returns the End Line
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::ThreadTurningBuilder::EndOffset ( )

Returns the End Offset
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::ThreadTurningBuilder::InfeedLength ( )

Returns the infeed length
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::ThreadTurningBuilder::InfeedLengthTypes NXOpen::CAM::ThreadTurningBuilder::InfeedLengthType ( )

Returns the infeed length type
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::ThreadTurningBuilder::InfeedModes NXOpen::CAM::ThreadTurningBuilder::InfeedMode ( )

Returns the infeed mode
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::ThreadTurningBuilder::InfeedMoveAngle ( )

Returns the infeed move angle
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::ThreadTurningBuilder::InfeedStartLineAngle ( )

Returns the infeed start line angle
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::NcmTurnThreadBuilder* NXOpen::CAM::ThreadTurningBuilder::NonCuttingBuilder ( )

Returns the non-cutting builder
Created in NX6.0.0.

License requirements : None

NXOpen::NXObject* NXOpen::CAM::ThreadTurningBuilder::RootLine ( )

Returns the Root Line
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::ThreadTurningBuilder::RootOffset ( )

Returns the root offset
Created in NX6.0.0.

License requirements : None

void NXOpen::CAM::ThreadTurningBuilder::SetCrestLine ( NXOpen::NXObject * crestLine )

Sets the Crest Line
Created in NX6.0.0.
