Represents a MillOrientGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateMillOrientGeomBuilder

Created in NX5.0.0. More...

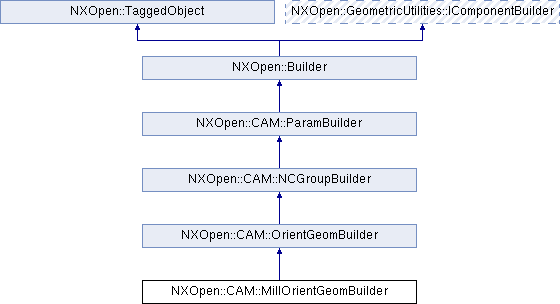

Inheritance diagram for NXOpen::CAM::MillOrientGeomBuilder:

Public Types
enum	LowerLimitModes { LowerLimitModesNone, LowerLimitModesPlane }
	The lower limit mode options Created in NX5.0.0. More...

Public Types inherited from NXOpen::CAM::OrientGeomBuilder
enum	CsysPurposeModes { CsysPurposeModesLocal, CsysPurposeModesMain }
	The CSYS purpose mode options Created in NX5.0.0. More...

enum	SpecialOutputModes { SpecialOutputModesNone, SpecialOutputModesUseMainMcs, SpecialOutputModesFixtureOffset, SpecialOutputModesCsysRotation }
	The special output mode options Created in NX5.0.0. More...

enum	ToolAxisModes { ToolAxisModesPositiveZOfMcs, ToolAxisModesFixedAxis, ToolAxisModesAllAxes }
	the tool axis mode options More...

Public Member Functions
NXOpen::CAM::MillOrientGeomBuilder::LowerLimitModes	GetLowerLimitMode ()
	Returns the lower limit mode.

NXOpen::NXObject *	LowerLimitPlane ()
	Returns the lower limit plane,plane entity type covers Xform and Plane Created in NX5.0.0.

void	SetLowerLimitMode (NXOpen::CAM::MillOrientGeomBuilder::LowerLimitModes lowerLimitMode)
	Sets the lower limit mode Created in NX5.0.0.

void	SetLowerLimitPlane (NXOpen::NXObject *lowerLimitPlane)
	Sets the lower limit plane,plane entity type covers Xform and Plane Created in NX5.0.0.

NXOpen::CAM::NcmAvoidancePointBuilder *	TransferAvoidanceFromBuilder ()
	Returns the from point builder Created in NX5.0.0.

NXOpen::CAM::NcmAvoidancePointBuilder *	TransferAvoidanceGohomeBuilder ()
	Returns the gohome point builder Created in NX5.0.0.

NXOpen::CAM::NcmAvoidancePointBuilder *	TransferAvoidanceReturnBuilder ()
	Returns the return point builder Created in NX5.0.0.

NXOpen::CAM::NcmAvoidancePointBuilder *	TransferAvoidanceStartBuilder ()
	Returns the start point builder Created in NX5.0.0.

NXOpen::CAM::NcmClearanceBuilder *	TransferClearanceBuilder ()
	Returns the clearance builder (inheritable tool dep) Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::OrientGeomBuilder
NXOpen::CAM::InheritableIntBuilder *	FixtureOffsetBuilder ()
	Returns the Fixture Offset builder Created in NX5.0.0.

NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes	GetCsysPurposeMode ()
	Returns the CSYS purpose.

NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes	GetSpecialOutputMode ()
	Returns the Special Output.

NXOpen::CAM::OrientGeomBuilder::ToolAxisModes	GetToolAxisMode ()
	Returns the tool axis mode.

NXOpen::CAM::LayoutCiBuilder *	LayoutCiBuilder ()
	Returns the Save Layer/Layout builder Created in NX5.0.0.

bool	LinkRcsToMcs ()
	Returns the link RCS to MCS Created in NX5.0.0.

NXOpen::CartesianCoordinateSystem *	Mcs ()
	Returns the MCS Created in NX5.0.0.

NXOpen::CartesianCoordinateSystem *	Rcs ()
	Returns the RCS Created in NX5.0.0.

void	SetCsysPurposeMode (NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes csysPurposeMode)
	Sets the CSYS purpose Created in NX5.0.0.

void	SetLinkRcsToMcs (bool linkRcsToMcs)
	Sets the link RCS to MCS Created in NX5.0.0.

void	SetMcs (NXOpen::CartesianCoordinateSystem *mcs)
	Sets the MCS Created in NX5.0.0.

void	SetRcs (NXOpen::CartesianCoordinateSystem *rcs)
	Sets the RCS Created in NX5.0.0.

void	SetSpecialOutputMode (NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes specialOutputMode)
	Sets the Special Output Created in NX5.0.0.

void	SetToolAxisMode (NXOpen::CAM::OrientGeomBuilder::ToolAxisModes toolAxisMode)
	Sets the tool axis mode Created in NX5.0.0.

void	SetToolAxisVector (NXOpen::NXObject *toolAxisVector)
	Sets the tool axis vector Created in NX5.0.0.

NXOpen::NXObject *	ToolAxisVector ()
	Returns the tool axis vector Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a MillOrientGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateMillOrientGeomBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::MillOrientGeomBuilder::LowerLimitModes

The lower limit mode options
Created in NX5.0.0.

Enumerator:

LowerLimitModesNone	lower limit mode: None
LowerLimitModesPlane	lower limit mode: Plane

Member Function Documentation

NXOpen::CAM::MillOrientGeomBuilder::LowerLimitModes NXOpen::CAM::MillOrientGeomBuilder::GetLowerLimitMode ( )

Returns the lower limit mode.

Returns: the lower limit mode
Created in NX5.0.0.

License requirements : None

NXOpen::NXObject* NXOpen::CAM::MillOrientGeomBuilder::LowerLimitPlane ( )

Returns the lower limit plane,plane entity type covers Xform and Plane
Created in NX5.0.0.

License requirements : None

void NXOpen::CAM::MillOrientGeomBuilder::SetLowerLimitMode ( NXOpen::CAM::MillOrientGeomBuilder::LowerLimitModes lowerLimitMode )

Sets the lower limit mode
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

lowerLimitMode the lower limit mode

void NXOpen::CAM::MillOrientGeomBuilder::SetLowerLimitPlane ( NXOpen::NXObject * lowerLimitPlane )

Sets the lower limit plane,plane entity type covers Xform and Plane
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

lowerLimitPlane the lower limit plane , entity type can be XFORM or PLANE

NXOpen::CAM::NcmAvoidancePointBuilder* NXOpen::CAM::MillOrientGeomBuilder::TransferAvoidanceFromBuilder ( )

Returns the from point builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::NcmAvoidancePointBuilder* NXOpen::CAM::MillOrientGeomBuilder::TransferAvoidanceGohomeBuilder ( )

Returns the gohome point builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::NcmAvoidancePointBuilder* NXOpen::CAM::MillOrientGeomBuilder::TransferAvoidanceReturnBuilder ( )

Returns the return point builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::NcmAvoidancePointBuilder* NXOpen::CAM::MillOrientGeomBuilder::TransferAvoidanceStartBuilder ( )

Returns the start point builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::NcmClearanceBuilder* NXOpen::CAM::MillOrientGeomBuilder::TransferClearanceBuilder ( )

Returns the clearance builder (inheritable tool dep)
Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_MillOrientGeomBuilder.hxx
