Represents a MachineTurretGroup Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateMachineTurretGroupBuilder

Created in NX5.0.0. More...

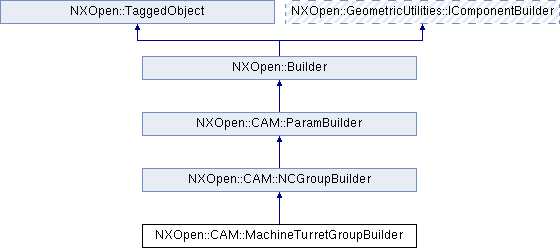

Inheritance diagram for NXOpen::CAM::MachineTurretGroupBuilder:

Public Types
enum	MctTurrentWplTypes { MctTurrentWplTypesXy, MctTurrentWplTypesXz }
	WorkPlane Type. More...

Public Member Functions
NXOpen::CAM::InheritableTextBuilder *	CarrierName ()
	Returns the Carrier Name object(inheritable text) Created in NX6.0.0.

NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	MctTurrentId ()
	Returns the Mct Turrent ID Created in NX5.0.0.

NXOpen::CartesianCoordinateSystem *	MctTurrentWpl ()
	Returns the mct turrent workplane

NXOpen::CAM::MachineTurretGroupBuilder::MctTurrentWplTypes	MctTurrentWplType ()
	Returns the workplane type

void	SetChannelName (const NXString &name)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *name)
	Sets the channel's name Created in NX7.5.0.

void	SetMctTurrentId (const NXString &mctTurrentID)
	Sets the Mct Turrent ID Created in NX5.0.0.

void	SetMctTurrentId (const char *mctTurrentID)
	Sets the Mct Turrent ID Created in NX5.0.0.

void	SetMctTurrentWpl (NXOpen::CartesianCoordinateSystem *mctTurrentWpl)
	Sets the mct turrent workplane

void	SetMctTurrentWplType (NXOpen::CAM::MachineTurretGroupBuilder::MctTurrentWplTypes mctTurrentWplType)
	Sets the workplane type

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a MachineTurretGroup Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateMachineTurretGroupBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::MachineTurretGroupBuilder::MctTurrentWplTypes

WorkPlane Type.

Enumerator:

MctTurrentWplTypesXy	XY.
MctTurrentWplTypesXz	XZ.

Member Function Documentation

NXOpen::CAM::InheritableTextBuilder* NXOpen::CAM::MachineTurretGroupBuilder::CarrierName ( )

Returns the Carrier Name object(inheritable text)
Created in NX6.0.0.

License requirements : None

NXString NXOpen::CAM::MachineTurretGroupBuilder::ChannelName ( )

Returns the channel's name
Created in NX7.5.0.

License requirements : None

NXString NXOpen::CAM::MachineTurretGroupBuilder::MctTurrentId ( )

Returns the Mct Turrent ID
Created in NX5.0.0.

License requirements : None

NXOpen::CartesianCoordinateSystem* NXOpen::CAM::MachineTurretGroupBuilder::MctTurrentWpl ( )

Returns the mct turrent workplane

Deprecated:: Deprecated in NX9.0.0.

None

Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::MachineTurretGroupBuilder::MctTurrentWplTypes NXOpen::CAM::MachineTurretGroupBuilder::MctTurrentWplType ( )

Returns the workplane type

Deprecated:: Deprecated in NX9.0.0.

None

Created in NX5.0.0.

License requirements : None

void NXOpen::CAM::MachineTurretGroupBuilder::SetChannelName ( const NXString & name )

Sets the channel's name
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

name	the channel's name

void NXOpen::CAM::MachineTurretGroupBuilder::SetChannelName ( const char * name )

Sets the channel's name
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

name	the channel's name

void NXOpen::CAM::MachineTurretGroupBuilder::SetMctTurrentId ( const NXString & mctTurrentID )

Sets the Mct Turrent ID
Created in NX5.0.0.

License requirements : None

Parameters

mctTurrentID the mct turrent id value

void NXOpen::CAM::MachineTurretGroupBuilder::SetMctTurrentId ( const char * mctTurrentID )

Sets the Mct Turrent ID
Created in NX5.0.0.

License requirements : None

Parameters

mctTurrentID the mct turrent id value

void NXOpen::CAM::MachineTurretGroupBuilder::SetMctTurrentWpl ( NXOpen::CartesianCoordinateSystem * mctTurrentWpl )

Sets the mct turrent workplane

Deprecated:: Deprecated in NX9.0.0.

None

Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

mctTurrentWpl the mct turrent wpl value

void NXOpen::CAM::MachineTurretGroupBuilder::SetMctTurrentWplType ( NXOpen::CAM::MachineTurretGroupBuilder::MctTurrentWplTypes mctTurrentWplType )

Sets the workplane type

Deprecated:: Deprecated in NX9.0.0.

None

Created in NX5.0.0.

License requirements : None

Parameters

mctTurrentWplType mctturrentwpltype

The documentation for this class was generated from the following file:

CAM_MachineTurretGroupBuilder.hxx
