Represents a Laser Tool
To create a new instance of this class, use CAM::NCGroupCollection::CreateLaserTool
Created in NX9.0.0.
More...

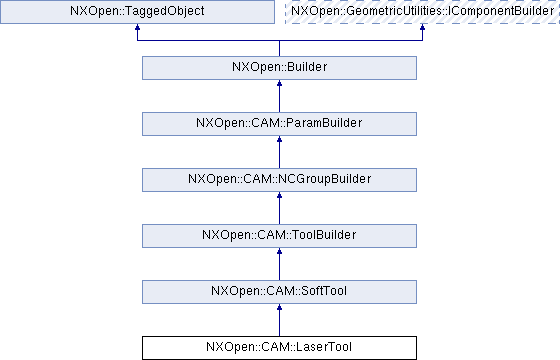

Inheritance diagram for NXOpen::CAM::LaserTool:
Public Member Functions | |
| NXOpen::CAM::InheritableDoubleBuilder * | Diameter () |
| Returns the Nozzle Diameter Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | FocalDiameter () |
| Returns the Focal Diameter Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | FocalDistance () |
| Returns the Focal Distance Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | Length () |
| Returns the Nozzle Length Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | MaxPower () |
| Returns the Maximum Power Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | MinPower () |
| Returns the Minimum Power Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TaperLength () |
| Returns the Nozzle Taper Length Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TipDiameter () |
| Returns the Nozzle Tip Diameter Created in NX9.0.0. | |
 Public Member Functions inherited from NXOpen::CAM::SoftTool | |
| NXOpen::CAM::HolderSectionBuilder * | HolderSection () |
| Returns the holder sections Created in NX9.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::ToolBuilder | |
| NXString | ChannelName () |
| Returns the channel's name Created in NX7.5.0. | |
| NXString | GetMaterial () |
| Get tool material. | |
| void | GetMaterialData (NXString *libRef, NXString *name, NXString *description, NXString *code) |
| Get material data Created in NX8.0.2. | |
| NXString | HolderDescription () |
| Returns the holder description Created in NX7.5.1. | |
| NXString | HolderLibraryReference () |
| Returns the holder libref Created in NX7.5.1. | |
| NXOpen::CAM::Ude * | LibraryParametersBuilder () |
| Returns the Library Data Object Created in NX9.0.0. | |
| void | SetChannelName (const NXString &name) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetChannelName (const char *name) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetHolderDescription (const NXString &holderDescriptionValue) |
| Sets the holder description Created in NX7.5.1. | |
| void | SetHolderDescription (const char *holderDescriptionValue) |
| Sets the holder description Created in NX7.5.1. | |
| void | SetHolderLibraryReference (const NXString &holderLibrefValue) |
| Sets the holder libref Created in NX7.5.1. | |
| void | SetHolderLibraryReference (const char *holderLibrefValue) |
| Sets the holder libref Created in NX7.5.1. | |
| void | SetMaterial (const NXString &libRef) |
| Set tool material Created in NX8.0.1. | |
| void | SetMaterial (const char *libRef) |
| Set tool material Created in NX8.0.1. | |
| void | SetTlCtlgNum (const NXString &tlCtlgNumValue) |
| Sets the Catalog Number Created in NX5.0.0. | |
| void | SetTlCtlgNum (const char *tlCtlgNumValue) |
| Sets the Catalog Number Created in NX5.0.0. | |
| void | SetTlDescription (const NXString &tlDescriptionValue) |
| Sets the Cutter Description Created in NX5.0.0. | |
| void | SetTlDescription (const char *tlDescriptionValue) |
| Sets the Cutter Description Created in NX5.0.0. | |
| void | SetTlLibref (const NXString &tlLibRef) |
| Sets the Cutter Libref Created in NX5.0.0. | |
| void | SetTlLibref (const char *tlLibRef) |
| Sets the Cutter Libref Created in NX5.0.0. | |
| void | SetTlManualToolChange (bool tlManualToolChangeValue) |
| Sets the Manual Tool Change Created in NX5.0.0. | |
| void | SetTlText (const NXString &tlText) |
| Sets the tool text Created in NX5.0.0. | |
| void | SetTlText (const char *tlText) |
| Sets the tool text Created in NX5.0.0. | |
| NXString | TlCtlgNum () |
| Returns the Catalog Number Created in NX5.0.0. | |
| NXString | TlDescription () |
| Returns the Cutter Description Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlHolderNumberBuilder () |
| Returns the Holder Number Created in NX5.0.0. | |
| NXString | TlLibref () |
| Returns the Cutter Libref Created in NX5.0.0. | |
| bool | TlManualToolChange () |
| Returns the Manual Tool Change Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlNumberBuilder () |
| Returns the Tool Number Created in NX5.0.0. | |
| NXString | TlText () |
| Returns the tool text Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder | |
| NXString | Description () |
| Returns the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | EndUdeSet () |
| Returns the end ude set Created in NX7.5.0. | |
| void | SetDescription (const NXString &description) |
| Sets the description Created in NX9.0.0. | |
| void | SetDescription (const char *description) |
| Sets the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | StartUdeSet () |
| Returns the start ude set Created in NX7.5.0. | |
| Public Member Functions inherited from NXOpen::CAM::ParamBuilder | |
| NXOpen::CAM::Ude * | CycleEvent () |
| Returns the cycle event Created in NX7.5.0. | |
| NXOpen::CAM::Cycle * | CycleTable () |
| Returns the cycle Created in NX9.0.0. | |
| NXOpen::CAM::ParamBuilder::OptimizationTypes | OptimizationMethod () |
| Returns the optim method Created in NX5.0.0. | |
| void | SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod) |
| Sets the optim method Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::CAM::ParamBuilder | |
| enum | OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand } |
| Available types for Optimization Method in operation. More... | |
Detailed Description
Represents a Laser Tool
To create a new instance of this class, use CAM::NCGroupCollection::CreateLaserTool
Created in NX9.0.0.
Member Function Documentation
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::LaserTool::Diameter | ( | ) |
Returns the Nozzle Diameter
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::LaserTool::FocalDiameter | ( | ) |
Returns the Focal Diameter
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::LaserTool::FocalDistance | ( | ) |
Returns the Focal Distance
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::LaserTool::Length | ( | ) |
Returns the Nozzle Length
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::LaserTool::MaxPower | ( | ) |
Returns the Maximum Power
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::LaserTool::MinPower | ( | ) |
Returns the Minimum Power
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::LaserTool::TaperLength | ( | ) |
Returns the Nozzle Taper Length
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::LaserTool::TipDiameter | ( | ) |
Returns the Nozzle Tip Diameter
Created in NX9.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- CAM_LaserTool.hxx
