Represents a CAM::IpwAnalysisBuilder
This is an abstract class, and cannot be instantiated. More...

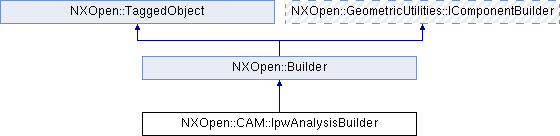

Inheritance diagram for NXOpen::CAM::IpwAnalysisBuilder:

Public Types
enum	ColorControl { ColorControlSharp, ColorControlBlend }
	the color control type options More...

Public Member Functions
NXOpen::CAM::IpwAnalysisBuilder::ColorControl	ColorControlType ()
	Returns the control color Created in NX6.0.0.

NXOpen::CAM::IpwContainmentCurvesBuilder *	CreateIpwContainmentCurvesBuilder (int position)
	Creates a list item.

void	SetColorControlType (NXOpen::CAM::IpwAnalysisBuilder::ColorControl type)
	Sets the control color Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAM::IpwAnalysisBuilder
This is an abstract class, and cannot be instantiated.

Created in NX6.0.0.

Member Enumeration Documentation

the color control type options

Enumerator:

ColorControlSharp	use blend color control
ColorControlBlend	use sharp color control

NXOpen::CAM::IpwAnalysisBuilder::ColorControl NXOpen::CAM::IpwAnalysisBuilder::ColorControlType ( )

Returns the control color
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::IpwContainmentCurvesBuilder* NXOpen::CAM::IpwAnalysisBuilder::CreateIpwContainmentCurvesBuilder ( int position )

Creates a list item.

Returns: ipw containment curves builder
Created in NX6.0.0.

License requirements : None

Parameters

position position

void NXOpen::CAM::IpwAnalysisBuilder::SetColorControlType ( NXOpen::CAM::IpwAnalysisBuilder::ColorControl type )

Sets the control color
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

type type
