this class creates the tolerance operation
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionToleranceOperationBuilder

Created in NX7.0.0. More...

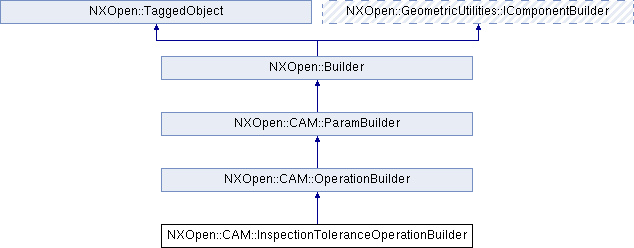

Inheritance diagram for NXOpen::CAM::InspectionToleranceOperationBuilder:

Public Types
enum	AngleFormat { AngleFormatDecimalDegree, AngleFormatDegMinSec }
	Angle format. More...

enum	ParamExtent { ParamExtentTotal, ParamExtentUnitAreaLength }
	Extent. More...

enum	ParamPriDatum { ParamPriDatumA, ParamPriDatumB, ParamPriDatumC }
	Default datum symbols. More...

enum	ParamPriDatumModifier { ParamPriDatumModifierNone, ParamPriDatumModifierMmc, ParamPriDatumModifierLmc, ParamPriDatumModifierRfs }
	Primary datum material modifiers. More...

enum	ParamSecDatum { ParamSecDatumA, ParamSecDatumB, ParamSecDatumC }
	Default datum symbols. More...

enum	ParamSecDatumModifier { ParamSecDatumModifierNone, ParamSecDatumModifierMmc, ParamSecDatumModifierLmc, ParamSecDatumModifierRfs }
	Secondary datum material modifiers. More...

enum	ParamSubType { ParamSubTypeSurface, ParamSubTypeAxis }
	Subtypes. More...

enum	ParamTerDatum { ParamTerDatumA, ParamTerDatumB, ParamTerDatumC }
	Default datum symbols. More...

enum	ParamTerDatumModifier { ParamTerDatumModifierNone, ParamTerDatumModifierMmc, ParamTerDatumModifierLmc, ParamTerDatumModifierRfs }
	Tertiary datum material modifiers. More...

enum	ParamTolMatModifier { ParamTolMatModifierNone, ParamTolMatModifierMmc, ParamTolMatModifierLmc, ParamTolMatModifierRfs }
	Material Condition modifiers. More...

enum	ParamTolMatModifierDup { ParamTolMatModifierDupNone, ParamTolMatModifierDupMmc, ParamTolMatModifierDupLmc, ParamTolMatModifierDupRfs }
	Material Condition modifiers. More...

enum	ParamTolZoneShape { ParamTolZoneShapeNone, ParamTolZoneShapeCylindrical, ParamTolZoneShapeCircular, ParamTolZoneShapeSpherical, ParamTolZoneShapeRadial, ParamTolZoneShapeAngular }
	Tolerance zone shape. More...

enum	ParamXYZAxis { ParamXYZAxisXAxis, ParamXYZAxisYAxis, ParamXYZAxisZAxis, ParamXYZAxisMajorAxis, ParamXYZAxisMinorAxis }
	X/Y/Z axis. More...

enum	SirVecPCSABS { SirVecPCSABSRelativetoPCS, SirVecPCSABSAbsolute }
	PCS or absolute coordinate sysytem. More...

enum	TolType { TolTypeDistanceBetween, TolTypeAngleBetween, TolTypeCoordinateTolerance, TolTypeDiameter, TolTypeRadius, TolTypeWidth, TolTypeConeAngle, TolTypeDatumDefinition, TolTypeFlatness, TolTypeStraightness, TolTypeCircularity, TolTypeCylindricity, TolTypeLineProfile, TolTypeSurfaceProfile, TolTypeAngularity, TolTypeParallelism, TolTypePerpendicularity, TolTypePosition, TolTypeConcentricity, TolTypeSymmetry, TolTypeCircularRunout, TolTypeTotalRunout, TolTypeDatumTarget }
	Tolerance types. More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
NXOpen::CAM::InspectionDatumPlaneFittingModeBuilder *	DatumPlaneFittingModeBuilder ()
	Returns the Datum Plane Fitting Mode Builder Created in NX9.0.0.

double	DoubleDirVecI ()
	Returns the double dir vec i Created in NX7.0.0.

double	DoubleDirVecJ ()
	Returns the double dir vec j Created in NX7.0.0.

double	DoubleDirVecK ()
	Returns the double dir vec k Created in NX7.0.0.

double	DoubleLower ()
	Returns the lower tolerance Created in NX7.0.0.

double	DoubleLowerParamOuterProfile ()
	Returns the double lower parameter outer profile Created in NX7.0.0.

double	DoubleNominal ()
	Returns the nominal tolerance Created in NX7.0.0.

double	DoubleParamExtArea ()
	Returns the double parameter extent area Created in NX7.0.0.

double	DoubleParamExtLength ()
	Returns the double parameter extent length Created in NX7.0.0.

double	DoubleParamOuterProfile ()
	Returns the double parameter outer profile Created in NX7.0.0.

double	DoubleParamTolValue ()
	Returns the double parameter tolerance value Created in NX7.0.0.

double	DoubleParamTolValue1 ()
	Returns the double parameter tolerance value1 Created in NX7.0.0.

double	DoubleUpper ()
	Returns the upper tolerance Created in NX7.0.0.

double	DoubleViewVecI ()
	Returns the double view vec i Created in NX7.0.0.

double	DoubleViewVecJ ()
	Returns the double view vec j Created in NX7.0.0.

double	DoubleViewVecK ()
	Returns the double view vec k Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamExtent	EnumParameterExtent ()
	Returns the enum parameter extent Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamPriDatumModifier	EnumParamPriMatModifier ()
	Returns the enum parameter primary material modifier Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamPriDatumModifier	EnumParamPriMatModifier1 ()
	Returns the enum parameter primary material modifier1 Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSecDatumModifier	EnumParamSecMatModifier ()
	Returns the enum parameter secondary material modifier Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSecDatumModifier	EnumParamSecMatModifier1 ()
	Returns the enum parameter secondary material modifier1 Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSubType	EnumParamSubType ()
	Returns the enum parameter sub type Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTerDatumModifier	EnumParamTerMatModifier ()
	Returns the enum parameter tertiary material modifier Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTerDatumModifier	EnumParamTerMatModifier1 ()
	Returns the enum parameter tertiary material modifier1 Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifier	EnumParamTolMatModifier ()
	Returns the enum parameter tolerance material modifier Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifier	EnumParamTolMatModifier1 ()
	Returns the enum parameter tolerance material modifier1 Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifierDup	EnumParamTolMatModifierDup ()
	Returns the enum parameter tolerance material modifier dup Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolZoneShape	EnumParamTolZoneShape ()
	Returns the enum parameter tolerance zone shape Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolZoneShape	EnumParamTolZoneShape1 ()
	Returns the enum parameter tolerance zone shape1 Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamXYZAxis	EnumParamXYZAxis ()
	Returns the enum parameter xyzaxis Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::SirVecPCSABS	EnumPCSABS ()
	Returns the enum pcsabs Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamXYZAxis	EnumTorusCharacteristic ()
	Returns the enum torus characteristic Created in NX7.0.0.

bool	IsComposite ()
	Returns the is composite flag Created in NX7.0.0.

NXOpen::CAM::InspectionLimitsOfSizeModeBuilder *	LimitsOfSizeModeBuilder ()
	Returns the Limits of Size Mode Builder Created in NX9.0.0.

NXString	LowerDMS ()
	Returns the string for anglb upper DMS Created in NX7.0.0.

NXString	NominalDMS ()
	Returns the string for anglb nominal DMS Created in NX7.0.0.

NXOpen::CAM::InspectionProfileDispositionModeBuilder *	ProfileDispositionModeBuilder ()
	Returns the Profile Disposition Mode Builder Created in NX9.0.0.

NXOpen::SelectNXObject *	SelectionFeature ()
	Returns the selection feature Created in NX7.0.0.

NXOpen::SelectNXObject *	SelectionOriginFeature ()
	Returns the selection origin feature Created in NX7.0.0.

NXOpen::SelectNXObject *	SelectionPMI ()
	Returns the PMI selection Created in NX7.0.0.

NXOpen::SelectNXObject *	SelectionTolerancedFeature ()
	Returns the selection toleranced feature Created in NX7.0.0.

void	SetComposite (bool isComposite)
	Sets the is composite flag Created in NX7.0.0.

void	SetDoubleDirVecI (double doubleDirVecI)
	Sets the double dir vec i Created in NX7.0.0.

void	SetDoubleDirVecJ (double doubleDirVecJ)
	Sets the double dir vec j Created in NX7.0.0.

void	SetDoubleDirVecK (double doubleDirVecK)
	Sets the double dir vec k Created in NX7.0.0.

void	SetDoubleLower (double doubleLower)
	Sets the lower tolerance Created in NX7.0.0.

void	SetDoubleLowerParamOuterProfile (double doubleLowerParamOuterProfile)
	Sets the double lower parameter outer profile Created in NX7.0.0.

void	SetDoubleNominal (double doubleNominal)
	Sets the nominal tolerance Created in NX7.0.0.

void	SetDoubleParamExtArea (double doubleParamExtArea)
	Sets the double parameter extent area Created in NX7.0.0.

void	SetDoubleParamExtLength (double doubleParamExtLength)
	Sets the double parameter extent length Created in NX7.0.0.

void	SetDoubleParamOuterProfile (double doubleParamOuterProfile)
	Sets the double parameter outer profile Created in NX7.0.0.

void	SetDoubleParamTolValue (double doubleParamTolValue)
	Sets the double parameter tolerance value Created in NX7.0.0.

void	SetDoubleParamTolValue1 (double doubleParamTolValue1)
	Sets the double parameter tolerance value1 Created in NX7.0.0.

void	SetDoubleUpper (double doubleUpper)
	Sets the upper tolerance Created in NX7.0.0.

void	SetDoubleViewVecI (double doubleViewVecI)
	Sets the double view vec i Created in NX7.0.0.

void	SetDoubleViewVecJ (double doubleViewVecJ)
	Sets the double view vec j Created in NX7.0.0.

void	SetDoubleViewVecK (double doubleViewVecK)
	Sets the double view vec k Created in NX7.0.0.

void	SetEnumParameterExtent (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamExtent enumParameterExtent)
	Sets the enum parameter extent Created in NX7.0.0.

void	SetEnumParamPriMatModifier (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamPriDatumModifier enumParamPriMatModifier)
	Sets the enum parameter primary material modifier Created in NX7.0.0.

void	SetEnumParamPriMatModifier1 (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamPriDatumModifier enumParamPriMatModifier1)
	Sets the enum parameter primary material modifier1 Created in NX7.0.0.

void	SetEnumParamSecMatModifier (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSecDatumModifier enumParamSecMatModifier)
	Sets the enum parameter secondary material modifier Created in NX7.0.0.

void	SetEnumParamSecMatModifier1 (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSecDatumModifier enumParamSecMatModifier1)
	Sets the enum parameter secondary material modifier1 Created in NX7.0.0.

void	SetEnumParamSubType (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSubType enumParamSubType)
	Sets the enum parameter sub type Created in NX7.0.0.

void	SetEnumParamTerMatModifier (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTerDatumModifier enumParamTerMatModifier)
	Sets the enum parameter tertiary material modifier Created in NX7.0.0.

void	SetEnumParamTerMatModifier1 (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTerDatumModifier enumParamTerMatModifier1)
	Sets the enum parameter tertiary material modifier1 Created in NX7.0.0.

void	SetEnumParamTolMatModifier (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifier enumParamTolMatModifier)
	Sets the enum parameter tolerance material modifier Created in NX7.0.0.

void	SetEnumParamTolMatModifier1 (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifier enumParamTolMatModifier1)
	Sets the enum parameter tolerance material modifier1 Created in NX7.0.0.

void	SetEnumParamTolMatModifierDup (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifierDup enumParamTolMatModifierDup)
	Sets the enum parameter tolerance material modifier dup Created in NX7.0.0.

void	SetEnumParamTolZoneShape (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolZoneShape enumParamTolZoneShape)
	Sets the enum parameter tolerance zone shape Created in NX7.0.0.

void	SetEnumParamTolZoneShape1 (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolZoneShape enumParamTolZoneShape1)
	Sets the enum parameter tolerance zone shape1 Created in NX7.0.0.

void	SetEnumParamXYZAxis (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamXYZAxis enumParamXYZAxis)
	Sets the enum parameter xyzaxis Created in NX7.0.0.

void	SetEnumPCSABS (NXOpen::CAM::InspectionToleranceOperationBuilder::SirVecPCSABS enumPCSABS)
	Sets the enum pcsabs Created in NX7.0.0.

void	SetEnumTorusCharacteristic (NXOpen::CAM::InspectionToleranceOperationBuilder::ParamXYZAxis enumTorusCharacteristic)
	Sets the enum torus characteristic Created in NX7.0.0.

void	SetLowerDMS (const NXString &stringLowerDMS)
	Sets the string for anglb upper DMS Created in NX7.0.0.

void	SetLowerDMS (const char *stringLowerDMS)
	Sets the string for anglb upper DMS Created in NX7.0.0.

void	SetNominalDMS (const NXString &stringNominalDMS)
	Sets the string for anglb nominal DMS Created in NX7.0.0.

void	SetNominalDMS (const char *stringNominalDMS)
	Sets the string for anglb nominal DMS Created in NX7.0.0.

void	SetStringDatumFeatName (const NXString &stringDatumFeatName)
	Sets the string datum feat name Created in NX7.0.0.

void	SetStringDatumFeatName (const char *stringDatumFeatName)
	Sets the string datum feat name Created in NX7.0.0.

void	SetStringDatumLetter (const NXString &stringDatumLetter)
	Sets the string datum letter Created in NX7.0.0.

void	SetStringDatumLetter (const char *stringDatumLetter)
	Sets the string datum letter Created in NX7.0.0.

void	SetStringOriginFeatName (const NXString &stringOriginFeatName)
	Sets the string origin feat name Created in NX7.0.0.

void	SetStringOriginFeatName (const char *stringOriginFeatName)
	Sets the string origin feat name Created in NX7.0.0.

void	SetStringPriDatum (const NXString &stringPriDatum)
	Sets the string primary datum Created in NX7.0.0.

void	SetStringPriDatum (const char *stringPriDatum)
	Sets the string primary datum Created in NX7.0.0.

void	SetStringPriDatum1 (const NXString &stringPriDatum1)
	Sets the string primary datum1 Created in NX7.0.0.

void	SetStringPriDatum1 (const char *stringPriDatum1)
	Sets the string primary datum1 Created in NX7.0.0.

void	SetStringSecDatum (const NXString &stringSecDatum)
	Sets the string secondary datum Created in NX7.0.0.

void	SetStringSecDatum (const char *stringSecDatum)
	Sets the string secondary datum Created in NX7.0.0.

void	SetStringSecDatum1 (const NXString &stringSecDatum1)
	Sets the string secondary datum1 Created in NX7.0.0.

void	SetStringSecDatum1 (const char *stringSecDatum1)
	Sets the string secondary datum1 Created in NX7.0.0.

void	SetStringTerDatum (const NXString &stringTerDatum)
	Sets the string tertiary datum Created in NX7.0.0.

void	SetStringTerDatum (const char *stringTerDatum)
	Sets the string tertiary datum Created in NX7.0.0.

void	SetStringTerDatum1 (const NXString &stringTerDatum1)
	Sets the string tertiary datum1 Created in NX7.0.0.

void	SetStringTerDatum1 (const char *stringTerDatum1)
	Sets the string tertiary datum1 Created in NX7.0.0.

void	SetStringTolerancedFeat (const NXString &stringTolerancedFeat)
	Sets the string toleranced feat Created in NX7.0.0.

void	SetStringTolerancedFeat (const char *stringTolerancedFeat)
	Sets the string toleranced feat Created in NX7.0.0.

void	SetStringTolName (const NXString &stringTolName)
	Sets the string tolerance name Created in NX7.0.0.

void	SetStringTolName (const char *stringTolName)
	Sets the string tolerance name Created in NX7.0.0.

void	SetTolOpType (NXOpen::CAM::InspectionToleranceOperationBuilder::TolType tolOpType)
	Sets the tolerance type Created in NX7.0.0.

void	SetUpperDMS (const NXString &stringUpperDMS)
	Sets the string for anglb upper DMS Created in NX7.0.0.

void	SetUpperDMS (const char *stringUpperDMS)
	Sets the string for anglb upper DMS Created in NX7.0.0.

void	SetUseDegMin (NXOpen::CAM::InspectionToleranceOperationBuilder::AngleFormat useDegMinSec)
	Sets the deg/min flag for angle between Created in NX7.0.0.

void	SetVectorDirection (NXOpen::Direction *vectorDirection)
	Sets the vector direction Created in NX7.0.0.

void	SetVectorViewVec (NXOpen::Direction *vectorViewVec)
	Sets the vector view vec Created in NX7.0.0.

void	SetXRotationDOFMode (NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode xRotationDOFMode)
	Sets the x rotation dofmode Created in NX8.5.1.

void	SetXRotationLowerLimit (double xRotationLowerLimit)
	Sets the x rotation lower limit Created in NX8.5.1.

void	SetXRotationUpperLimit (double xRotationUpperLimit)
	Sets the x rotation upper limit Created in NX8.5.1.

void	SetXTranslationDOFMode (NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode xTranslationDOFMode)
	Sets the x translation dofmode Created in NX8.5.1.

void	SetXTranslationLowerLimit (double xTranslationLowerLimit)
	Sets the x translation lower limit Created in NX8.5.1.

void	SetXTranslationUpperLimit (double xTranslationUpperLimit)
	Sets the x translation upper limit Created in NX8.5.1.

void	SetYRotationDOFMode (NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode yRotationDOFMode)
	Sets the y rotation dofmode Created in NX8.5.1.

void	SetYRotationLowerLimit (double yRotationLowerLimit)
	Sets the y rotation lower limit Created in NX8.5.1.

void	SetYRotationUpperLimit (double yRotationUpperLimit)
	Sets the y rotation upper limit Created in NX8.5.1.

void	SetYTranslationDOFMode (NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode yTranslationDOFMode)
	Sets the y translation dofmode Created in NX8.5.1.

void	SetYTranslationLowerLimit (double yTranslationLowerLimit)
	Sets the y translation lower limit Created in NX8.5.1.

void	SetYTranslationUpperLimit (double yTranslationUpperLimit)
	Sets the y translation upper limit Created in NX8.5.1.

void	SetZRotationDOFMode (NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode zRotationDOFMode)
	Sets the z rotation dofmode Created in NX8.5.1.

void	SetZRotationLowerLimit (double zRotationLowerLimit)
	Sets the z rotation lower limit Created in NX8.5.1.

void	SetZRotationUpperLimit (double zRotationUpperLimit)
	Sets the z rotation upper limit Created in NX8.5.1.

void	SetZTranslationDOFMode (NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode zTranslationDOFMode)
	Sets the z translation dofmode Created in NX8.5.1.

void	SetZTranslationLowerLimit (double zTranslationLowerLimit)
	Sets the z translation lower limit Created in NX8.5.1.

void	SetZTranslationUpperLimit (double zTranslationUpperLimit)
	Sets the z translation upper limit Created in NX8.5.1.

NXString	StringDatumFeatName ()
	Returns the string datum feat name Created in NX7.0.0.

NXString	StringDatumLetter ()
	Returns the string datum letter Created in NX7.0.0.

NXString	StringOriginFeatName ()
	Returns the string origin feat name Created in NX7.0.0.

NXString	StringPriDatum ()
	Returns the string primary datum Created in NX7.0.0.

NXString	StringPriDatum1 ()
	Returns the string primary datum1 Created in NX7.0.0.

NXString	StringSecDatum ()
	Returns the string secondary datum Created in NX7.0.0.

NXString	StringSecDatum1 ()
	Returns the string secondary datum1 Created in NX7.0.0.

NXString	StringTerDatum ()
	Returns the string tertiary datum Created in NX7.0.0.

NXString	StringTerDatum1 ()
	Returns the string tertiary datum1 Created in NX7.0.0.

NXString	StringTolerancedFeat ()
	Returns the string toleranced feat Created in NX7.0.0.

NXString	StringTolName ()
	Returns the string tolerance name Created in NX7.0.0.

NXOpen::CAM::InspectionSurfaceProfileModeBuilder *	SurfaceProfileModeBuilder ()
	Returns the Surface Profile Mode Builder Created in NX9.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::TolType	TolOpType ()
	Returns the tolerance type Created in NX7.0.0.

void	UpdateParameters ()
	Updates Inspection tolerance parameters based on selected annotation.

NXString	UpperDMS ()
	Returns the string for anglb upper DMS Created in NX7.0.0.

NXOpen::CAM::InspectionToleranceOperationBuilder::AngleFormat	UseDegMin ()
	Returns the deg/min flag for angle between Created in NX7.0.0.

NXOpen::Direction *	VectorDirection ()
	Returns the vector direction Created in NX7.0.0.

NXOpen::Direction *	VectorViewVec ()
	Returns the vector view vec Created in NX7.0.0.

NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode	XRotationDOFMode ()
	Returns the x rotation dofmode Created in NX8.5.1.

double	XRotationLowerLimit ()
	Returns the x rotation lower limit Created in NX8.5.1.

double	XRotationUpperLimit ()
	Returns the x rotation upper limit Created in NX8.5.1.

NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode	XTranslationDOFMode ()
	Returns the x translation dofmode Created in NX8.5.1.

double	XTranslationLowerLimit ()
	Returns the x translation lower limit Created in NX8.5.1.

double	XTranslationUpperLimit ()
	Returns the x translation upper limit Created in NX8.5.1.

NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode	YRotationDOFMode ()
	Returns the y rotation dofmode Created in NX8.5.1.

double	YRotationLowerLimit ()
	Returns the y rotation lower limit Created in NX8.5.1.

double	YRotationUpperLimit ()
	Returns the y rotation upper limit Created in NX8.5.1.

NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode	YTranslationDOFMode ()
	Returns the y translation dofmode Created in NX8.5.1.

double	YTranslationLowerLimit ()
	Returns the y translation lower limit Created in NX8.5.1.

double	YTranslationUpperLimit ()
	Returns the y translation upper limit Created in NX8.5.1.

NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode	ZRotationDOFMode ()
	Returns the z rotation dofmode Created in NX8.5.1.

double	ZRotationLowerLimit ()
	Returns the z rotation lower limit Created in NX8.5.1.

double	ZRotationUpperLimit ()
	Returns the z rotation upper limit Created in NX8.5.1.

NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode	ZTranslationDOFMode ()
	Returns the z translation dofmode Created in NX8.5.1.

double	ZTranslationLowerLimit ()
	Returns the z translation lower limit Created in NX8.5.1.

double	ZTranslationUpperLimit ()
	Returns the z translation upper limit Created in NX8.5.1.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

this class creates the tolerance operation
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionToleranceOperationBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionToleranceOperationBuilder::AngleFormat

Angle format.

Enumerator:

AngleFormatDecimalDegree	Decimal Degrees.
AngleFormatDegMinSec	Degrees/Minutes/Seconds.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamExtent

Extent.

Enumerator:

ParamExtentTotal	Total.
ParamExtentUnitAreaLength	Unit Area Length.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamPriDatum

Default datum symbols.

Enumerator:

ParamPriDatumA	A.
ParamPriDatumB	B.
ParamPriDatumC	C.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamPriDatumModifier

Primary datum material modifiers.

Enumerator:

ParamPriDatumModifierNone	None.
ParamPriDatumModifierMmc	Maximum Material Condition.
ParamPriDatumModifierLmc	Least Material Condition.
ParamPriDatumModifierRfs	Regardless of Feature Size.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSecDatum

Default datum symbols.

Enumerator:

ParamSecDatumA	A.
ParamSecDatumB	B.
ParamSecDatumC	C.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSecDatumModifier

Secondary datum material modifiers.

Enumerator:

ParamSecDatumModifierNone	None.
ParamSecDatumModifierMmc	Maximum Material Condition.
ParamSecDatumModifierLmc	Least Material Condition.
ParamSecDatumModifierRfs	Regardless of Feature Size.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSubType

Subtypes.

Enumerator:

ParamSubTypeSurface	Surface.
ParamSubTypeAxis	Axis.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTerDatum

Default datum symbols.

Enumerator:

ParamTerDatumA	A.
ParamTerDatumB	B.
ParamTerDatumC	C.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTerDatumModifier

Tertiary datum material modifiers.

Enumerator:

ParamTerDatumModifierNone	None.
ParamTerDatumModifierMmc	Maximum Material Condition.
ParamTerDatumModifierLmc	Least Material Condition.
ParamTerDatumModifierRfs	Regardless of Feature Size.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifier

Material Condition modifiers.

Enumerator:

ParamTolMatModifierNone	None.
ParamTolMatModifierMmc	Maximum Material Condition.
ParamTolMatModifierLmc	Least Material Condition.
ParamTolMatModifierRfs	Regardless of Feature Size.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifierDup

Material Condition modifiers.

Enumerator:

ParamTolMatModifierDupNone	None.
ParamTolMatModifierDupMmc	Maximum Material Condition.
ParamTolMatModifierDupLmc	Least Material Condition.
ParamTolMatModifierDupRfs	Regardless of Feature Size.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolZoneShape

Tolerance zone shape.

Enumerator:

ParamTolZoneShapeNone	None.
ParamTolZoneShapeCylindrical	Cylindrical.
ParamTolZoneShapeCircular	Circular.
ParamTolZoneShapeSpherical	Spherical.
ParamTolZoneShapeRadial	Radial.
ParamTolZoneShapeAngular	Angular.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::ParamXYZAxis

X/Y/Z axis.

Enumerator:

ParamXYZAxisXAxis	X Axis.
ParamXYZAxisYAxis	Y Axis.
ParamXYZAxisZAxis	Z Axis.
ParamXYZAxisMajorAxis	Major Axis.
ParamXYZAxisMinorAxis	Minor Axis.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::SirVecPCSABS

PCS or absolute coordinate sysytem.

Enumerator:

SirVecPCSABSRelativetoPCS	Relative to PCS.
SirVecPCSABSAbsolute	Absolute.

enum NXOpen::CAM::InspectionToleranceOperationBuilder::TolType

Tolerance types.

Enumerator:

TolTypeDistanceBetween	Distance Between.
TolTypeAngleBetween	Angle Between.
TolTypeCoordinateTolerance	Coordinate.
TolTypeDiameter	Diameter.
TolTypeRadius	Radius.
TolTypeWidth	Width.
TolTypeConeAngle	Angle of Cone.
TolTypeDatumDefinition	Datum Definition.
TolTypeFlatness	Flatness.
TolTypeStraightness	Straightness.
TolTypeCircularity	Circularity.
TolTypeCylindricity	Cylindricity.
TolTypeLineProfile	Profile of Line.
TolTypeSurfaceProfile	Profile of Surface.
TolTypeAngularity	Angularity.
TolTypeParallelism	Parallelism.
TolTypePerpendicularity	Perpendicularity.
TolTypePosition	Position.
TolTypeConcentricity	Concentricity.
TolTypeSymmetry	Symmetry.
TolTypeCircularRunout	Circular Runout.
TolTypeTotalRunout	Total Runout.
TolTypeDatumTarget	datum target

Member Function Documentation

NXOpen::CAM::InspectionDatumPlaneFittingModeBuilder* NXOpen::CAM::InspectionToleranceOperationBuilder::DatumPlaneFittingModeBuilder ( )

Returns the Datum Plane Fitting Mode Builder
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleDirVecI ( )

Returns the double dir vec i
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleDirVecJ ( )

Returns the double dir vec j
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleDirVecK ( )

Returns the double dir vec k
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleLower ( )

Returns the lower tolerance
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleLowerParamOuterProfile ( )

Returns the double lower parameter outer profile
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleNominal ( )

Returns the nominal tolerance
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleParamExtArea ( )

Returns the double parameter extent area
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleParamExtLength ( )

Returns the double parameter extent length
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleParamOuterProfile ( )

Returns the double parameter outer profile
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleParamTolValue ( )

Returns the double parameter tolerance value
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleParamTolValue1 ( )

Returns the double parameter tolerance value1
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleUpper ( )

Returns the upper tolerance
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleViewVecI ( )

Returns the double view vec i
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleViewVecJ ( )

Returns the double view vec j
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionToleranceOperationBuilder::DoubleViewVecK ( )

Returns the double view vec k
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamExtent NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParameterExtent ( )

Returns the enum parameter extent
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamPriDatumModifier NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamPriMatModifier ( )

Returns the enum parameter primary material modifier
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamPriDatumModifier NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamPriMatModifier1 ( )

Returns the enum parameter primary material modifier1
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSecDatumModifier NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamSecMatModifier ( )

Returns the enum parameter secondary material modifier
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSecDatumModifier NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamSecMatModifier1 ( )

Returns the enum parameter secondary material modifier1
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamSubType NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamSubType ( )

Returns the enum parameter sub type
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTerDatumModifier NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamTerMatModifier ( )

Returns the enum parameter tertiary material modifier
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTerDatumModifier NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamTerMatModifier1 ( )

Returns the enum parameter tertiary material modifier1
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifier NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamTolMatModifier ( )

Returns the enum parameter tolerance material modifier
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifier NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamTolMatModifier1 ( )

Returns the enum parameter tolerance material modifier1
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolMatModifierDup NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamTolMatModifierDup ( )

Returns the enum parameter tolerance material modifier dup
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolZoneShape NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamTolZoneShape ( )

Returns the enum parameter tolerance zone shape
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamTolZoneShape NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamTolZoneShape1 ( )

Returns the enum parameter tolerance zone shape1
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamXYZAxis NXOpen::CAM::InspectionToleranceOperationBuilder::EnumParamXYZAxis ( )

Returns the enum parameter xyzaxis
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::SirVecPCSABS NXOpen::CAM::InspectionToleranceOperationBuilder::EnumPCSABS ( )

Returns the enum pcsabs
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionToleranceOperationBuilder::ParamXYZAxis NXOpen::CAM::InspectionToleranceOperationBuilder::EnumTorusCharacteristic ( )

Returns the enum torus characteristic
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionToleranceOperationBuilder::IsComposite ( )

Returns the is composite flag
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionLimitsOfSizeModeBuilder* NXOpen::CAM::InspectionToleranceOperationBuilder::LimitsOfSizeModeBuilder ( )

Returns the Limits of Size Mode Builder
Created in NX9.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionToleranceOperationBuilder::LowerDMS ( )

Returns the string for anglb upper DMS
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionToleranceOperationBuilder::NominalDMS ( )

Returns the string for anglb nominal DMS
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionProfileDispositionModeBuilder* NXOpen::CAM::InspectionToleranceOperationBuilder::ProfileDispositionModeBuilder ( )

Returns the Profile Disposition Mode Builder
Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionToleranceOperationBuilder::SelectionFeature ( )

Returns the selection feature
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionToleranceOperationBuilder::SelectionOriginFeature ( )

Returns the selection origin feature
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionToleranceOperationBuilder::SelectionPMI ( )

Returns the PMI selection
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionToleranceOperationBuilder::SelectionTolerancedFeature ( )

Returns the selection toleranced feature
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionToleranceOperationBuilder::SetComposite ( bool isComposite )

Sets the is composite flag
Created in NX7.0.0.
