Represents a InspectionProbeTracking builder
To create a new instance of this class, use CAM::InspectionTool::CreateInspectionProbeTrackingBuilder

Created in NX9.0.0. More...

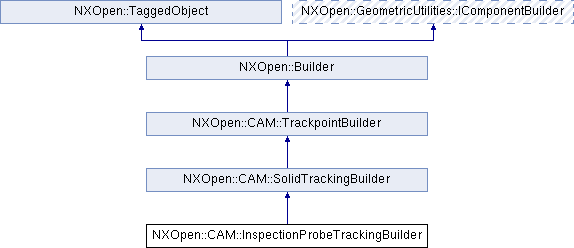

Inheritance diagram for NXOpen::CAM::InspectionProbeTrackingBuilder:

Public Types
enum	TipTypes { TipTypesSphere, TipTypesCylinder, TipTypesDisk }
	the tip type More...

Public Member Functions
double	AxialPercent ()
	Returns the axial percentage Created in NX9.0.0.

NXOpen::NXObject *	Axis ()
	Returns the stem axis Created in NX9.0.0.

void	SetAxialPercent (double pct)
	Sets the axial percentage Created in NX9.0.0.

void	SetAxis (NXOpen::NXObject *axis)
	Sets the stem axis Created in NX9.0.0.

void	SetLocationParameters (NXOpen::NXObject *tpLocation)
	Set the trackpoint location and default parameters Created in NX9.0.0.

void	SetStemTop (NXOpen::NXObject *stemTop)
	Sets the stem top Created in NX9.0.0.

void	SetTipType (NXOpen::CAM::InspectionProbeTrackingBuilder::TipTypes type)
	Sets the tip type Created in NX9.0.0.

NXOpen::NXObject *	StemTop ()
	Returns the stem top Created in NX9.0.0.

NXOpen::CAM::InspectionProbeTrackingBuilder::TipTypes	TipType ()
	Returns the tip type Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::SolidTrackingBuilder
NXOpen::NXObject *	Location ()
	Returns the location Created in NX5.0.0.

void	SetLocation (NXOpen::NXObject *tpLocation)
	Sets the location Created in NX5.0.0.

void	SetTrackingXOff (double xoffValue)
	Sets the XOff value Created in NX5.0.0.

void	SetTrackingYOff (double yoffValue)
	Sets the YOff value Created in NX5.0.0.

void	SetTrackingZOff (double zoffValue)
	Sets the ZOff value Created in NX5.0.0.

double	TrackingXOff ()
	Returns the XOff value Created in NX5.0.0.

double	TrackingYOff ()
	Returns the YOff value Created in NX5.0.0.

double	TrackingZOff ()
	Returns the ZOff value Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::TrackpointBuilder
void	SetTlAdjReg (int tlAdjReg)
	Sets the adjust register Created in NX5.0.0.

void	SetTlCutcomReg (int tlCutcomReg)
	Sets the cutcom register Created in NX5.0.0.

void	SetTrackingName (const NXString &nameValue)
	Sets the Tracking Point name value Created in NX5.0.0.

void	SetTrackingName (const char *nameValue)
	Sets the Tracking Point name value Created in NX5.0.0.

int	TlAdjReg ()
	Returns the adjust register Created in NX5.0.0.

int	TlCutcomReg ()
	Returns the cutcom register Created in NX5.0.0.

NXString	TrackingName ()
	Returns the Tracking Point name value Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a InspectionProbeTracking builder
To create a new instance of this class, use CAM::InspectionTool::CreateInspectionProbeTrackingBuilder

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionProbeTrackingBuilder::TipTypes

the tip type

Enumerator:

TipTypesSphere	Sphere.
TipTypesCylinder	Cylinder.
TipTypesDisk	Disk.

Member Function Documentation

double NXOpen::CAM::InspectionProbeTrackingBuilder::AxialPercent ( )

Returns the axial percentage
Created in NX9.0.0.

License requirements : None

NXOpen::NXObject* NXOpen::CAM::InspectionProbeTrackingBuilder::Axis ( )

Returns the stem axis
Created in NX9.0.0.

License requirements : None

void NXOpen::CAM::InspectionProbeTrackingBuilder::SetAxialPercent ( double pct )

Sets the axial percentage
Created in NX9.0.0.
