Represents a CMM Inspection Parpln Feature Builder. More...

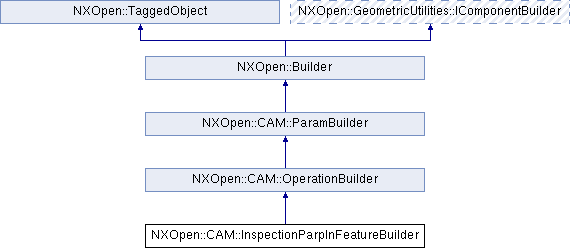

Inheritance diagram for NXOpen::CAM::InspectionParplnFeatureBuilder:

Public Member Functions
NXOpen::CAM::CamInspectionOperationCsysreferencetypes	CsysReferenceType ()
	Returns the coordinate system reference type Created in NX7.0.0.

NXOpen::CAM::CamInspectionOperationExtenttypes	ExtentType ()
	Returns the extent type of the slot/tab (bounded or unbounded) Created in NX7.0.0.

NXOpen::CAM::CamInspectionOperationInneroutertypes	InnerOuterType ()
	Returns the inspection feature inner outer type (slot/tab) Created in NX7.0.0.

NXString	Name ()
	Returns the name of the parpln feature Created in NX7.0.0.

NXOpen::SelectNXObjectList *	SelectedSide1 ()
	Returns the first selected side of the parpln slot/tab Created in NX7.0.0.

NXOpen::SelectNXObjectList *	SelectedSide2 ()
	Returns the second selected side of the parpln slot/tab Created in NX7.0.0.

void	SetCsysReferenceType (NXOpen::CAM::CamInspectionOperationCsysreferencetypes csysReferenceType)
	Sets the coordinate system reference type Created in NX7.0.0.

void	SetExtentType (NXOpen::CAM::CamInspectionOperationExtenttypes extentType)
	Sets the extent type of the slot/tab (bounded or unbounded) Created in NX7.0.0.

void	SetInnerOuterType (NXOpen::CAM::CamInspectionOperationInneroutertypes innerOuterType)
	Sets the inspection feature inner outer type (slot/tab) Created in NX7.0.0.

void	SetName (const NXString &name)
	Sets the name of the parpln feature Created in NX7.0.0.

void	SetName (const char *name)
	Sets the name of the parpln feature Created in NX7.0.0.

void	SetSide1NormalVectorI (double side1NormalVectorI)
	Sets the I component of the normal vector of the plane on the first side of the parpln Created in NX7.0.0.

void	SetSide1NormalVectorJ (double side1NormalVectorJ)
	Sets the J component of the normal vector of the plane on the first side of the parpln Created in NX7.0.0.

void	SetSide1NormalVectorK (double side1NormalVectorK)
	Sets the K component of the normal vector of the plane on the first side of the parpln Created in NX7.0.0.

void	SetSide1PointX (double side1PointX)
	Sets the X coordinate of the center of the plane on the first side of the parpln Created in NX7.0.0.

void	SetSide1PointY (double side1PointY)
	Sets the Y coordinate of the center of the plane on the first side of the parpln Created in NX7.0.0.

void	SetSide1PointZ (double side1PointZ)
	Sets the Z coordinate of the center of the plane on the first side of the parpln Created in NX7.0.0.

void	SetSide2NormalVectorI (double side2NormalVectorI)
	Sets the I component of the normal vector of the plane on the second side of the parpln Created in NX7.0.0.

void	SetSide2NormalVectorJ (double side2NormalVectorJ)
	Sets the J component of the normal vector of the plane on the second side of the parpln Created in NX7.0.0.

void	SetSide2NormalVectorK (double side2NormalVectorK)
	Sets the K component of the normal vector of the plane on the second side of the parpln Created in NX7.0.0.

void	SetSide2PointX (double side2PointX)
	Sets the X coordinate of the center of the plane on the second side of the parpln Created in NX7.0.0.

void	SetSide2PointY (double side2PointY)
	Sets the Y coordinate of the center of the plane on the second side of the parpln Created in NX7.0.0.

void	SetSide2PointZ (double side2PointZ)
	Sets the Z coordinate of the center of the plane on the second side of the parpln Created in NX7.0.0.

void	SetWidth (double width)
	Sets the width of the parpln slot/tab Created in NX7.0.0.

double	Side1NormalVectorI ()
	Returns the I component of the normal vector of the plane on the first side of the parpln Created in NX7.0.0.

double	Side1NormalVectorJ ()
	Returns the J component of the normal vector of the plane on the first side of the parpln Created in NX7.0.0.

double	Side1NormalVectorK ()
	Returns the K component of the normal vector of the plane on the first side of the parpln Created in NX7.0.0.

double	Side1PointX ()
	Returns the X coordinate of the center of the plane on the first side of the parpln Created in NX7.0.0.

double	Side1PointY ()
	Returns the Y coordinate of the center of the plane on the first side of the parpln Created in NX7.0.0.

double	Side1PointZ ()
	Returns the Z coordinate of the center of the plane on the first side of the parpln Created in NX7.0.0.

double	Side2NormalVectorI ()
	Returns the I component of the normal vector of the plane on the second side of the parpln Created in NX7.0.0.

double	Side2NormalVectorJ ()
	Returns the J component of the normal vector of the plane on the second side of the parpln Created in NX7.0.0.

double	Side2NormalVectorK ()
	Returns the K component of the normal vector of the plane on the second side of the parpln Created in NX7.0.0.

double	Side2PointX ()
	Returns the X coordinate of the center of the plane on the second side of the parpln Created in NX7.0.0.

double	Side2PointY ()
	Returns the Y coordinate of the center of the plane on the second side of the parpln Created in NX7.0.0.

double	Side2PointZ ()
	Returns the Z coordinate of the center of the plane on the second side of the parpln Created in NX7.0.0.

void	UpdateParams ()
	Updates parpln inspection feature characteristic parameters based on selected geometry Created in NX7.0.0.

double	Width ()
	Returns the width of the parpln slot/tab Created in NX7.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Detailed Description

Represents a CMM Inspection Parpln Feature Builder.

   A Parpln is an unbounded slot or tab defined by two parallel planes.  <br> To create a new instance of this class, use @link CAM::InspectionOperationCollection::CreateInspectionParplnFeatureBuilder  CAM::InspectionOperationCollection::CreateInspectionParplnFeatureBuilder @endlink  <br>

Created in NX7.0.0.

Member Function Documentation

NXOpen::CAM::CamInspectionOperationCsysreferencetypes NXOpen::CAM::InspectionParplnFeatureBuilder::CsysReferenceType ( )

Returns the coordinate system reference type
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::CamInspectionOperationExtenttypes NXOpen::CAM::InspectionParplnFeatureBuilder::ExtentType ( )

Returns the extent type of the slot/tab (bounded or unbounded)
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::CamInspectionOperationInneroutertypes NXOpen::CAM::InspectionParplnFeatureBuilder::InnerOuterType ( )

Returns the inspection feature inner outer type (slot/tab)
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionParplnFeatureBuilder::Name ( )

Returns the name of the parpln feature
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionParplnFeatureBuilder::SelectedSide1 ( )

Returns the first selected side of the parpln slot/tab
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionParplnFeatureBuilder::SelectedSide2 ( )

Returns the second selected side of the parpln slot/tab
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetCsysReferenceType ( NXOpen::CAM::CamInspectionOperationCsysreferencetypes csysReferenceType )

Sets the coordinate system reference type
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

csysReferenceType csysreferencetype

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetExtentType ( NXOpen::CAM::CamInspectionOperationExtenttypes extentType )

Sets the extent type of the slot/tab (bounded or unbounded)
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

extentType extenttype

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetInnerOuterType ( NXOpen::CAM::CamInspectionOperationInneroutertypes innerOuterType )

Sets the inspection feature inner outer type (slot/tab)
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

innerOuterType inneroutertype

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetName ( const NXString & name )

Sets the name of the parpln feature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetName ( const char * name )

Sets the name of the parpln feature
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide1NormalVectorI ( double side1NormalVectorI )

Sets the I component of the normal vector of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side1NormalVectorI side1normalvectori

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide1NormalVectorJ ( double side1NormalVectorJ )

Sets the J component of the normal vector of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side1NormalVectorJ side1normalvectorj

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide1NormalVectorK ( double side1NormalVectorK )

Sets the K component of the normal vector of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side1NormalVectorK side1normalvectork

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide1PointX ( double side1PointX )

Sets the X coordinate of the center of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side1PointX side1pointx

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide1PointY ( double side1PointY )

Sets the Y coordinate of the center of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side1PointY side1pointy

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide1PointZ ( double side1PointZ )

Sets the Z coordinate of the center of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side1PointZ side1pointz

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide2NormalVectorI ( double side2NormalVectorI )

Sets the I component of the normal vector of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side2NormalVectorI side2normalvectori

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide2NormalVectorJ ( double side2NormalVectorJ )

Sets the J component of the normal vector of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side2NormalVectorJ side2normalvectorj

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide2NormalVectorK ( double side2NormalVectorK )

Sets the K component of the normal vector of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side2NormalVectorK side2normalvectork

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide2PointX ( double side2PointX )

Sets the X coordinate of the center of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side2PointX side2pointx

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide2PointY ( double side2PointY )

Sets the Y coordinate of the center of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side2PointY side2pointy

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetSide2PointZ ( double side2PointZ )

Sets the Z coordinate of the center of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

side2PointZ side2pointz

void NXOpen::CAM::InspectionParplnFeatureBuilder::SetWidth ( double width )

Sets the width of the parpln slot/tab
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

width width

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side1NormalVectorI ( )

Returns the I component of the normal vector of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side1NormalVectorJ ( )

Returns the J component of the normal vector of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side1NormalVectorK ( )

Returns the K component of the normal vector of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side1PointX ( )

Returns the X coordinate of the center of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side1PointY ( )

Returns the Y coordinate of the center of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side1PointZ ( )

Returns the Z coordinate of the center of the plane on the first side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side2NormalVectorI ( )

Returns the I component of the normal vector of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side2NormalVectorJ ( )

Returns the J component of the normal vector of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side2NormalVectorK ( )

Returns the K component of the normal vector of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side2PointX ( )

Returns the X coordinate of the center of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side2PointY ( )

Returns the Y coordinate of the center of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionParplnFeatureBuilder::Side2PointZ ( )

Returns the Z coordinate of the center of the plane on the second side of the parpln
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionParplnFeatureBuilder::UpdateParams ( )

Updates parpln inspection feature characteristic parameters based on selected geometry
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

double NXOpen::CAM::InspectionParplnFeatureBuilder::Width ( )

Returns the width of the parpln slot/tab
Created in NX7.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_InspectionParplnFeatureBuilder.hxx
