Represents CMM Inspection Move Builder
This cannot be instantiated

Created in NX7.0.0. More...

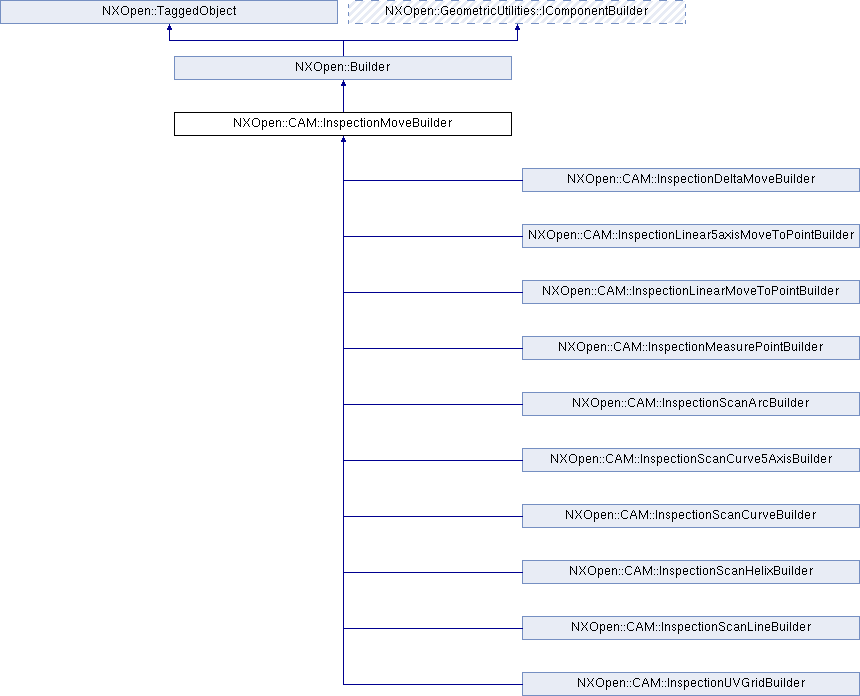

Inheritance diagram for NXOpen::CAM::InspectionMoveBuilder:

Public Types
enum	DepthMethodTypes { DepthMethodTypesAuto = -1, DepthMethodTypesDistance, DepthMethodTypesFromFeatureNominal, DepthMethodTypesFromFeatureActual, DepthMethodTypesFromDatum }
	the depth method More...

enum	SensorStrategyTypes { SensorStrategyTypesCreateAsNeeded, SensorStrategyTypesUseExisting }
	the sensor selection strategy More...

enum	TipAngleTypes { TipAngleTypesAuto, TipAngleTypesSpecify, TipAngleTypesExisting }
	the tip angle selection mode More...

enum	TipModeTypes { TipModeTypesAuto, TipModeTypesSpecify, TipModeTypesExisting }
	the tip selection mode More...

Public Member Functions
double	AngleA ()
	Returns the A angle for an indexable head Created in NX7.0.0.

double	AngleB ()
	Returns the B angle for an indexable head Created in NX7.0.0.

double	ApproachDistance ()
	Returns the approach distance Created in NX7.0.0.

NXOpen::CAM::MoveBuilder::Motion	MotionType ()
	Returns the motion type Created in NX7.0.0.

double	RetractDistance ()
	Returns the retract distance Created in NX7.0.0.

NXString	SensorOpName ()
	Returns the inspection sensor operation name Created in NX7.5.1.

NXOpen::CAM::InspectionMoveBuilder::SensorStrategyTypes	SensorStrategy ()
	Returns the sensor selection strategy Created in NX7.5.1.

NXOpen::CAM::InspectionSensorStrategyBuilder *	SensorStrategyBuilder ()
	Returns the Sensor Strategy Enum Builder Created in NX9.0.0.

void	SetAngleA (double angle)
	Sets the A angle for an indexable head Created in NX7.0.0.

void	SetAngleB (double angle)
	Sets the B angle for an indexable head Created in NX7.0.0.

void	SetApproachDistance (double distance)
	Sets the approach distance Created in NX7.0.0.

void	SetMotionType (NXOpen::CAM::MoveBuilder::Motion motionType)
	Sets the motion type Created in NX7.0.0.

void	SetParent (NXOpen::CAM::CAMObject *parent)
	Set parent Created in NX7.0.0.

void	SetProbeAngles ()
	Set default values for probe angles based on feature type.

void	SetRetractDistance (double distance)
	Sets the retract distance Created in NX7.0.0.

void	SetSensorOpName (const NXString &sensorOpName)
	Sets the inspection sensor operation name Created in NX7.5.1.

void	SetSensorOpName (const char *sensorOpName)
	Sets the inspection sensor operation name Created in NX7.5.1.

void	SetSensorStrategy (NXOpen::CAM::InspectionMoveBuilder::SensorStrategyTypes sensorStrategy)
	Sets the sensor selection strategy Created in NX7.5.1.

void	SetSibling (NXOpen::CAM::CAMObject *sibling)
	Set sibling Created in NX7.0.0.

void	SetTipAngleMode (NXOpen::CAM::InspectionMoveBuilder::TipAngleTypes tipAngleMode)
	Sets the tip angle selection mode Created in NX7.0.0.

void	SetTipMode (NXOpen::CAM::InspectionMoveBuilder::TipModeTypes tipMode)
	Sets the probe tip selection mode Created in NX7.0.0.

void	SetTipNumber (int tipNumber)
	Sets the probe tip number Created in NX7.0.0.

NXOpen::CAM::InspectionMoveBuilder::TipAngleTypes	TipAngleMode ()
	Returns the tip angle selection mode Created in NX7.0.0.

NXOpen::CAM::InspectionMoveBuilder::TipModeTypes	TipMode ()
	Returns the probe tip selection mode Created in NX7.0.0.

int	TipNumber ()
	Returns the probe tip number Created in NX7.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents CMM Inspection Move Builder
This cannot be instantiated

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionMoveBuilder::DepthMethodTypes

the depth method

Enumerator:

DepthMethodTypesDistance	Distance only.
DepthMethodTypesFromFeatureNominal	Distance from feature nominal.
DepthMethodTypesFromFeatureActual	Distance from feature actual.
DepthMethodTypesFromDatum	Distance from datum.

enum NXOpen::CAM::InspectionMoveBuilder::SensorStrategyTypes

the sensor selection strategy

Enumerator:

SensorStrategyTypesCreateAsNeeded	Create as needed.
SensorStrategyTypesUseExisting	Use existing only.

enum NXOpen::CAM::InspectionMoveBuilder::TipAngleTypes

the tip angle selection mode

Enumerator:

TipAngleTypesAuto	Auto specify.
TipAngleTypesSpecify	Manual specify.
TipAngleTypesExisting	From existing sensor.

enum NXOpen::CAM::InspectionMoveBuilder::TipModeTypes

the tip selection mode

Enumerator:

TipModeTypesAuto	Auto specify.
TipModeTypesSpecify	Manual specify.
TipModeTypesExisting	From existing sensor.

Member Function Documentation

double NXOpen::CAM::InspectionMoveBuilder::AngleA ( )

Returns the A angle for an indexable head
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMoveBuilder::AngleB ( )

Returns the B angle for an indexable head
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMoveBuilder::ApproachDistance ( )

Returns the approach distance
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::MoveBuilder::Motion NXOpen::CAM::InspectionMoveBuilder::MotionType ( )

Returns the motion type
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMoveBuilder::RetractDistance ( )

Returns the retract distance
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionMoveBuilder::SensorOpName ( )

Returns the inspection sensor operation name
Created in NX7.5.1.

License requirements : None

NXOpen::CAM::InspectionMoveBuilder::SensorStrategyTypes NXOpen::CAM::InspectionMoveBuilder::SensorStrategy ( )

Returns the sensor selection strategy
Created in NX7.5.1.

License requirements : None

NXOpen::CAM::InspectionSensorStrategyBuilder* NXOpen::CAM::InspectionMoveBuilder::SensorStrategyBuilder ( )

Returns the Sensor Strategy Enum Builder
Created in NX9.0.0.

License requirements : None

void NXOpen::CAM::InspectionMoveBuilder::SetAngleA ( double angle )

Sets the A angle for an indexable head
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

angle angle

void NXOpen::CAM::InspectionMoveBuilder::SetAngleB ( double angle )

Sets the B angle for an indexable head
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

angle angle

void NXOpen::CAM::InspectionMoveBuilder::SetApproachDistance ( double distance )

Sets the approach distance
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

distance distance

void NXOpen::CAM::InspectionMoveBuilder::SetMotionType ( NXOpen::CAM::MoveBuilder::Motion motionType )

Sets the motion type
Created in NX7.0.0.

License requirements : None

Parameters

motionType motion type

void NXOpen::CAM::InspectionMoveBuilder::SetParent ( NXOpen::CAM::CAMObject * parent )

Set parent
Created in NX7.0.0.

License requirements : None

Parameters

parent the parent object

void NXOpen::CAM::InspectionMoveBuilder::SetProbeAngles ( )

Set default values for probe angles based on feature type.

Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionMoveBuilder::SetRetractDistance ( double distance )

Sets the retract distance
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

distance distance

void NXOpen::CAM::InspectionMoveBuilder::SetSensorOpName ( const NXString & sensorOpName )

Sets the inspection sensor operation name
Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

sensorOpName sensoropname

void NXOpen::CAM::InspectionMoveBuilder::SetSensorOpName ( const char * sensorOpName )

Sets the inspection sensor operation name
Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

sensorOpName sensoropname

void NXOpen::CAM::InspectionMoveBuilder::SetSensorStrategy ( NXOpen::CAM::InspectionMoveBuilder::SensorStrategyTypes sensorStrategy )

Sets the sensor selection strategy
Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

sensorStrategy sensorstrategy

void NXOpen::CAM::InspectionMoveBuilder::SetSibling ( NXOpen::CAM::CAMObject * sibling )

Set sibling
Created in NX7.0.0.

License requirements : None

Parameters

sibling the sibling object

void NXOpen::CAM::InspectionMoveBuilder::SetTipAngleMode ( NXOpen::CAM::InspectionMoveBuilder::TipAngleTypes tipAngleMode )

Sets the tip angle selection mode
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

tipAngleMode tipanglemode

void NXOpen::CAM::InspectionMoveBuilder::SetTipMode ( NXOpen::CAM::InspectionMoveBuilder::TipModeTypes tipMode )

Sets the probe tip selection mode
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

tipMode tipmode

void NXOpen::CAM::InspectionMoveBuilder::SetTipNumber ( int tipNumber )

Sets the probe tip number
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

tipNumber tipnumber

NXOpen::CAM::InspectionMoveBuilder::TipAngleTypes NXOpen::CAM::InspectionMoveBuilder::TipAngleMode ( )

Returns the tip angle selection mode
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionMoveBuilder::TipModeTypes NXOpen::CAM::InspectionMoveBuilder::TipMode ( )

Returns the probe tip selection mode
Created in NX7.0.0.

License requirements : None

int NXOpen::CAM::InspectionMoveBuilder::TipNumber ( )

Returns the probe tip number
Created in NX7.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_InspectionMoveBuilder.hxx
