Represents a CMM Inspection Edge Point Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionEdgePointFeatureBuilder

Created in NX9.0.0. More...

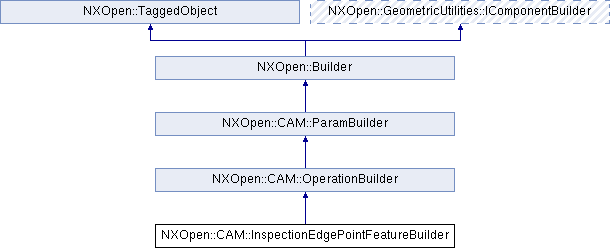

Inheritance diagram for NXOpen::CAM::InspectionEdgePointFeatureBuilder:

Public Member Functions
NXOpen::CAM::CamInspectionOperationCsysreferencetypes	CsysReferenceType ()
	Returns the coordinate system reference type Created in NX9.0.0.

void	FlipNormal ()
	Flips the edge point inspection feature normal vector Created in NX9.0.0.

void	FlipSurfaceNormal ()
	Flips the edge point inspection feature adjacent surface normal vector Created in NX9.0.0.

NXString	Name ()
	Returns the name of the inspection edge point feature Created in NX9.0.0.

double	NormalVectorI ()
	Returns the point normal vector I component Created in NX9.0.0.

double	NormalVectorJ ()
	Returns the point normal vector J component Created in NX9.0.0.

double	NormalVectorK ()
	Returns the point normal vector K component Created in NX9.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	OffsetValue ()
	Returns the point offset value Created in NX9.0.0.

double	PointX ()
	Returns the point X coordinate Created in NX9.0.0.

double	PointY ()
	Returns the point Y coordinate Created in NX9.0.0.

double	PointZ ()
	Returns the point Z coordinate Created in NX9.0.0.

bool	ReverseEdgeDirection ()
	Returns the reverse point normal direction Created in NX9.0.0.

bool	ReverseSurfaceDirection ()
	Returns the reverse surface normal direction Created in NX9.0.0.

NXOpen::SelectNXObjectList *	SelectAdjacentSurface ()
	Returns the select adjacent surface Created in NX9.0.0.

NXOpen::Point *	SelectPoint ()
	Returns the selected edge point Created in NX9.0.0.

void	SetAdjacentSurface (NXOpen::Face *adjacentSurface)
	Sets the edge point inspection feature adjacent surface tag Created in NX9.0.0.

void	SetCsysReferenceType (NXOpen::CAM::CamInspectionOperationCsysreferencetypes csysReferenceType)
	Sets the coordinate system reference type Created in NX9.0.0.

void	SetName (const NXString &name)
	Sets the name of the inspection edge point feature Created in NX9.0.0.

void	SetName (const char *name)
	Sets the name of the inspection edge point feature Created in NX9.0.0.

void	SetNormalVectorI (double normalVectorI)
	Sets the point normal vector I component Created in NX9.0.0.

void	SetNormalVectorJ (double normalVectorJ)
	Sets the point normal vector J component Created in NX9.0.0.

void	SetNormalVectorK (double normalVectorK)
	Sets the point normal vector K component Created in NX9.0.0.

void	SetPointX (double pointX)
	Sets the point X coordinate Created in NX9.0.0.

void	SetPointY (double pointY)
	Sets the point Y coordinate Created in NX9.0.0.

void	SetPointZ (double pointZ)
	Sets the point Z coordinate Created in NX9.0.0.

void	SetReverseEdgeDirection (bool reverseEdgeDirection)
	Sets the reverse point normal direction Created in NX9.0.0.

void	SetReverseSurfaceDirection (bool reverseSurfaceDirection)
	Sets the reverse surface normal direction Created in NX9.0.0.

void	SetSelectPoint (NXOpen::Point *selectPoint)
	Sets the selected edge point Created in NX9.0.0.

void	SetSurfaceNormalVectorI (double surfaceNormalVectorI)
	Sets the surface normal vector I component Created in NX9.0.0.

void	SetSurfaceNormalVectorJ (double surfaceNormalVectorJ)
	Sets the surface normal vector J component Created in NX9.0.0.

void	SetSurfaceNormalVectorK (double surfaceNormalVectorK)
	Sets the surface normal vector K component Created in NX9.0.0.

double	SurfaceNormalVectorI ()
	Returns the surface normal vector I component Created in NX9.0.0.

double	SurfaceNormalVectorJ ()
	Returns the surface normal vector J component Created in NX9.0.0.

double	SurfaceNormalVectorK ()
	Returns the surface normal vector K component Created in NX9.0.0.

void	UpdateOffset ()
	Updates the edge point inspection feature when the offset value is changed Created in NX9.0.0.

void	UpdateParams ()
	Updates edge point inspection feature characteristic parameters based on selected geometry Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Detailed Description

Represents a CMM Inspection Edge Point Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionEdgePointFeatureBuilder

Created in NX9.0.0.

Member Function Documentation

NXOpen::CAM::CamInspectionOperationCsysreferencetypes NXOpen::CAM::InspectionEdgePointFeatureBuilder::CsysReferenceType ( )

Returns the coordinate system reference type
Created in NX9.0.0.

License requirements : None

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::FlipNormal ( )

Flips the edge point inspection feature normal vector
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::FlipSurfaceNormal ( )

Flips the edge point inspection feature adjacent surface normal vector
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

NXString NXOpen::CAM::InspectionEdgePointFeatureBuilder::Name ( )

Returns the name of the inspection edge point feature
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::NormalVectorI ( )

Returns the point normal vector I component
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::NormalVectorJ ( )

Returns the point normal vector J component
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::NormalVectorK ( )

Returns the point normal vector K component
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::InspectionEdgePointFeatureBuilder::OffsetValue ( )

Returns the point offset value
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::PointX ( )

Returns the point X coordinate
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::PointY ( )

Returns the point Y coordinate
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::PointZ ( )

Returns the point Z coordinate
Created in NX9.0.0.

License requirements : None

bool NXOpen::CAM::InspectionEdgePointFeatureBuilder::ReverseEdgeDirection ( )

Returns the reverse point normal direction
Created in NX9.0.0.

License requirements : None

bool NXOpen::CAM::InspectionEdgePointFeatureBuilder::ReverseSurfaceDirection ( )

Returns the reverse surface normal direction
Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionEdgePointFeatureBuilder::SelectAdjacentSurface ( )

Returns the select adjacent surface
Created in NX9.0.0.

License requirements : None

NXOpen::Point* NXOpen::CAM::InspectionEdgePointFeatureBuilder::SelectPoint ( )

Returns the selected edge point
Created in NX9.0.0.

License requirements : None

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetAdjacentSurface ( NXOpen::Face * adjacentSurface )

Sets the edge point inspection feature adjacent surface tag
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

adjacentSurface adjacentsurface

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetCsysReferenceType ( NXOpen::CAM::CamInspectionOperationCsysreferencetypes csysReferenceType )

Sets the coordinate system reference type
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

csysReferenceType csysreferencetype

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetName ( const NXString & name )

Sets the name of the inspection edge point feature
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetName ( const char * name )

Sets the name of the inspection edge point feature
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetNormalVectorI ( double normalVectorI )

Sets the point normal vector I component
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

normalVectorI normalvectori

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetNormalVectorJ ( double normalVectorJ )

Sets the point normal vector J component
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

normalVectorJ normalvectorj

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetNormalVectorK ( double normalVectorK )

Sets the point normal vector K component
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

normalVectorK normalvectork

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetPointX ( double pointX )

Sets the point X coordinate
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pointX pointx

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetPointY ( double pointY )

Sets the point Y coordinate
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pointY pointy

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetPointZ ( double pointZ )

Sets the point Z coordinate
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pointZ pointz

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetReverseEdgeDirection ( bool reverseEdgeDirection )

Sets the reverse point normal direction
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

reverseEdgeDirection reverseedgedirection

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetReverseSurfaceDirection ( bool reverseSurfaceDirection )

Sets the reverse surface normal direction
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

reverseSurfaceDirection reversesurfacedirection

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetSelectPoint ( NXOpen::Point * selectPoint )

Sets the selected edge point
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

selectPoint selectpoint

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetSurfaceNormalVectorI ( double surfaceNormalVectorI )

Sets the surface normal vector I component
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

surfaceNormalVectorI surfacenormalvectori

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetSurfaceNormalVectorJ ( double surfaceNormalVectorJ )

Sets the surface normal vector J component
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

surfaceNormalVectorJ surfacenormalvectorj

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::SetSurfaceNormalVectorK ( double surfaceNormalVectorK )

Sets the surface normal vector K component
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

surfaceNormalVectorK surfacenormalvectork

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::SurfaceNormalVectorI ( )

Returns the surface normal vector I component
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::SurfaceNormalVectorJ ( )

Returns the surface normal vector J component
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionEdgePointFeatureBuilder::SurfaceNormalVectorK ( )

Returns the surface normal vector K component
Created in NX9.0.0.

License requirements : None

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::UpdateOffset ( )

Updates the edge point inspection feature when the offset value is changed
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionEdgePointFeatureBuilder::UpdateParams ( )

Updates edge point inspection feature characteristic parameters based on selected geometry
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

The documentation for this class was generated from the following file:

CAM_InspectionEdgePointFeatureBuilder.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
