Represents a CMM Inspection Curve Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionCurveFeatureBuilder

Created in NX7.0.0. More...

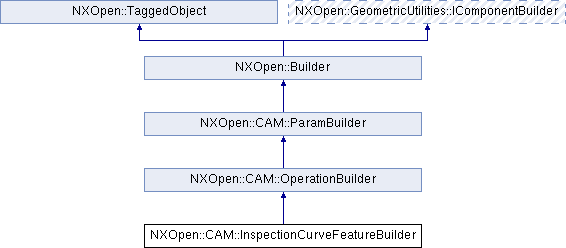

Inheritance diagram for NXOpen::CAM::InspectionCurveFeatureBuilder:

Public Types
enum	PointDataDefinitionType { PointDataDefinitionTypeNone, PointDataDefinitionTypePointSet, PointDataDefinitionTypeIndividualPoints }
	The method used to define point data. More...

enum	StartEndModeType { StartEndModeTypePercentage, StartEndModeTypeDistance }
	the method used to define the start and end points More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
NXOpen::Direction *	ApproachDirection ()
	Returns the approach direction Created in NX7.0.0.

double	CurvatureFactor ()
	Returns the curvature factor Created in NX8.5.1.

double	EndDistance ()
	Returns the end distance Created in NX8.5.1.

double	EndPercentage ()
	Returns the end percentage Created in NX8.5.1.

void	ErasePointDefinitionDisplay ()
	Erases display of point definition data Created in NX9.0.0.

bool	IsPointDefinitionChanged ()
	Returns the point data definition changed flag Created in NX9.0.0.

double	MaximumSpacing ()
	Returns the maximum spacing Created in NX8.5.1.

int	MinimumNumberOfPoints ()
	Returns the minimum number of points Created in NX8.5.1.

double	MinimumSpacing ()
	Returns the minimum spacing Created in NX8.5.1.

NXString	Name ()
	Returns the name Created in NX7.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	OffsetDistance ()
	Returns the offset distance Created in NX9.0.0.

NXOpen::CAM::InspectionCurveFeatureBuilder::PointDataDefinitionType	PointDataDefinition ()
	Returns the point data definition Created in NX8.5.1.

NXOpen::SelectPointList *	PointSelector ()
	Returns the user specified point selector Created in NX8.5.1.

void	PreviewPointData (bool showExisting)
	Creates preview of point definition data Created in NX9.0.0.

void	ReverseFeatureNormal ()
	Reverses the feature normal Created in NX9.0.0.

void	ReverseOffsetDirection ()
	Reverses the offset direction Created in NX9.0.0.

NXOpen::SelectNXObjectList *	SelectedCurves ()
	Returns the selected curves Created in NX7.0.0.

NXOpen::SelectNXObjectList *	SelectedSurfaces ()
	Returns the underlying surfaces selector.

void	SetApproachDirection (NXOpen::Direction *approachDirection)
	Sets the approach direction Created in NX7.0.0.

void	SetCurvatureFactor (double curvatureFactor)
	Sets the curvature factor Created in NX8.5.1.

void	SetEndDistance (double endDistance)
	Sets the end distance Created in NX8.5.1.

void	SetEndPercentage (double endPercentage)
	Sets the end percentage Created in NX8.5.1.

void	SetMaximumSpacing (double maximumSpacing)
	Sets the maximum spacing Created in NX8.5.1.

void	SetMinimumNumberOfPoints (int minimumNumberOfPoints)
	Sets the minimum number of points Created in NX8.5.1.

void	SetMinimumSpacing (double minimumSpacing)
	Sets the minimum spacing Created in NX8.5.1.

void	SetName (const NXString &name)
	Sets the name Created in NX7.0.0.

void	SetName (const char *name)
	Sets the name Created in NX7.0.0.

void	SetPointDataDefinition (NXOpen::CAM::InspectionCurveFeatureBuilder::PointDataDefinitionType pointDataDefinition)
	Sets the point data definition Created in NX8.5.1.

void	SetPointDefinitionChanged (bool isChanged)
	Sets the point data definition changed flag Created in NX9.0.0.

void	SetSelectedSurfaces (const std::vector< NXOpen::Face * > &selectedSurfaces)
	Sets the curve underlying selected surfaces Created in NX9.0.0.

void	SetStartDistance (double startDistance)
	Sets the start distance Created in NX8.5.1.

void	SetStartEndMode (NXOpen::CAM::InspectionCurveFeatureBuilder::StartEndModeType startEndMode)
	Sets the start end mode Created in NX8.5.1.

void	SetStartPercentage (double startPercentage)
	Sets the start percentage Created in NX8.5.1.

double	StartDistance ()
	Returns the start distance Created in NX8.5.1.

NXOpen::CAM::InspectionCurveFeatureBuilder::StartEndModeType	StartEndMode ()
	Returns the start end mode Created in NX8.5.1.

double	StartPercentage ()
	Returns the start percentage Created in NX8.5.1.

void	UpdateOffset ()
	Updates curve inspection feature characteristic parameters based on offset distance Created in NX9.0.0.

void	UpdateParams ()
	Updates the feature parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CMM Inspection Curve Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionCurveFeatureBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionCurveFeatureBuilder::PointDataDefinitionType

The method used to define point data.

Enumerator:

PointDataDefinitionTypeNone	No point data is defined.
PointDataDefinitionTypePointSet	A set of points are defined using parameters.
PointDataDefinitionTypeIndividualPoints	Individual points are defined.

enum NXOpen::CAM::InspectionCurveFeatureBuilder::StartEndModeType

the method used to define the start and end points

Enumerator:

StartEndModeTypePercentage	Percent.
StartEndModeTypeDistance	Distance.

Member Function Documentation

NXOpen::Direction* NXOpen::CAM::InspectionCurveFeatureBuilder::ApproachDirection ( )

Returns the approach direction
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionCurveFeatureBuilder::CurvatureFactor ( )

Returns the curvature factor
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionCurveFeatureBuilder::EndDistance ( )

Returns the end distance
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionCurveFeatureBuilder::EndPercentage ( )

Returns the end percentage
Created in NX8.5.1.

License requirements : None

void NXOpen::CAM::InspectionCurveFeatureBuilder::ErasePointDefinitionDisplay ( )

Erases display of point definition data
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

bool NXOpen::CAM::InspectionCurveFeatureBuilder::IsPointDefinitionChanged ( )

Returns the point data definition changed flag
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionCurveFeatureBuilder::MaximumSpacing ( )

Returns the maximum spacing
Created in NX8.5.1.

License requirements : None

int NXOpen::CAM::InspectionCurveFeatureBuilder::MinimumNumberOfPoints ( )

Returns the minimum number of points
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionCurveFeatureBuilder::MinimumSpacing ( )

Returns the minimum spacing
Created in NX8.5.1.

License requirements : None

NXString NXOpen::CAM::InspectionCurveFeatureBuilder::Name ( )

Returns the name
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::InspectionCurveFeatureBuilder::OffsetDistance ( )

Returns the offset distance
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::InspectionCurveFeatureBuilder::PointDataDefinitionType NXOpen::CAM::InspectionCurveFeatureBuilder::PointDataDefinition ( )

Returns the point data definition
Created in NX8.5.1.

License requirements : None

NXOpen::SelectPointList* NXOpen::CAM::InspectionCurveFeatureBuilder::PointSelector ( )

Returns the user specified point selector
Created in NX8.5.1.

License requirements : None

void NXOpen::CAM::InspectionCurveFeatureBuilder::PreviewPointData ( bool showExisting )

Creates preview of point definition data
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

showExisting showexisting

void NXOpen::CAM::InspectionCurveFeatureBuilder::ReverseFeatureNormal ( )

Reverses the feature normal
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionCurveFeatureBuilder::ReverseOffsetDirection ( )

Reverses the offset direction
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionCurveFeatureBuilder::SelectedCurves ( )

Returns the selected curves
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionCurveFeatureBuilder::SelectedSurfaces ( )

Returns the underlying surfaces selector.

Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetApproachDirection ( NXOpen::Direction * approachDirection )

Sets the approach direction
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

approachDirection approachdirection

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetCurvatureFactor ( double curvatureFactor )

Sets the curvature factor
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

curvatureFactor curvaturefactor

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetEndDistance ( double endDistance )

Sets the end distance
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

endDistance enddistance

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetEndPercentage ( double endPercentage )

Sets the end percentage
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

endPercentage endpercentage

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetMaximumSpacing ( double maximumSpacing )

Sets the maximum spacing
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

maximumSpacing maximumspacing

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetMinimumNumberOfPoints ( int minimumNumberOfPoints )

Sets the minimum number of points
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

minimumNumberOfPoints minimumnumberofpoints

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetMinimumSpacing ( double minimumSpacing )

Sets the minimum spacing
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

minimumSpacing minimumspacing

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetName ( const NXString & name )

Sets the name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetName ( const char * name )

Sets the name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetPointDataDefinition ( NXOpen::CAM::InspectionCurveFeatureBuilder::PointDataDefinitionType pointDataDefinition )

Sets the point data definition
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pointDataDefinition pointdatadefinition

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetPointDefinitionChanged ( bool isChanged )

Sets the point data definition changed flag
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

isChanged ischanged

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetSelectedSurfaces ( const std::vector< NXOpen::Face * > & selectedSurfaces )

Sets the curve underlying selected surfaces
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

selectedSurfaces Array of selected surfaces

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetStartDistance ( double startDistance )

Sets the start distance
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

startDistance startdistance

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetStartEndMode ( NXOpen::CAM::InspectionCurveFeatureBuilder::StartEndModeType startEndMode )

Sets the start end mode
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

startEndMode startendmode

void NXOpen::CAM::InspectionCurveFeatureBuilder::SetStartPercentage ( double startPercentage )

Sets the start percentage
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

startPercentage startpercentage

double NXOpen::CAM::InspectionCurveFeatureBuilder::StartDistance ( )

Returns the start distance
Created in NX8.5.1.

License requirements : None

NXOpen::CAM::InspectionCurveFeatureBuilder::StartEndModeType NXOpen::CAM::InspectionCurveFeatureBuilder::StartEndMode ( )

Returns the start end mode
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionCurveFeatureBuilder::StartPercentage ( )

Returns the start percentage
Created in NX8.5.1.

License requirements : None

void NXOpen::CAM::InspectionCurveFeatureBuilder::UpdateOffset ( )

Updates curve inspection feature characteristic parameters based on offset distance
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionCurveFeatureBuilder::UpdateParams ( )

Updates the feature parameters
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

The documentation for this class was generated from the following file:

CAM_InspectionCurveFeatureBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
