Represents a CMM Inspection miscellaneous command builder. More...

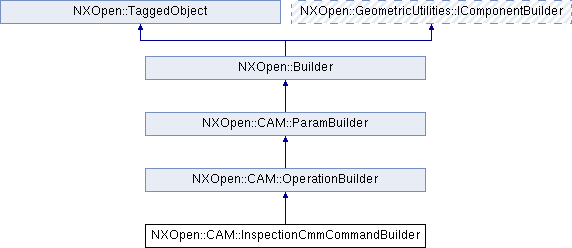

Inheritance diagram for NXOpen::CAM::InspectionCmmCommandBuilder:

Public Types
enum	AngularUnitsOptions { AngularUnitsOptionsDecimalDegrees, AngularUnitsOptionsRadians, AngularUnitsOptionsDegreesMinutesSeconds }
	Angular units specifications. More...

enum	CommandTypes { CommandTypesEnterStatement, CommandTypesMeasurementMode, CommandTypesDefineHomePoint, CommandTypesMoveMachine, CommandTypesOutputDecimalPlaces, CommandTypesDeclareVariable, CommandTypesQISVariable, CommandTypesPromptforInput, CommandTypesProgramLabel, CommandTypesJumptoLabel, CommandTypesProgramHeader, CommandTypesSensorSelect, CommandTypesDevice, CommandTypesSaveDml }
	The type of CMM command to be entered. More...

enum	DeviceTypeOptions { DeviceTypeOptionsStor, DeviceTypeOptionsTerm, DeviceTypeOptionsPrint, DeviceTypeOptionsComm, DeviceTypeOptionsIncr }
	Device Type specifications. More...

enum	HomePtMethods { HomePtMethodsMachineZero, HomePtMethodsUserSpecifiedPoint }
	The method used to specify the home point. More...

enum	IdnameMethods { IdnameMethodsCurrentPartName, IdnameMethodsUserSpecified }
	Naming method. More...

enum	LinearUnitsOptions { LinearUnitsOptionsPartUnits, LinearUnitsOptionsMillimeters, LinearUnitsOptionsCentimeters, LinearUnitsOptionsMeters, LinearUnitsOptionsInches, LinearUnitsOptionsFeet }
	Linear units specifications. More...

enum	MoveTypes { MoveTypesLinearMove, MoveTypesArcMove, MoveTypesHomeLocation, MoveTypesLinear5axis }
	The type of move. More...

enum	ProgramNameMethods { ProgramNameMethodsCurrentPartName, ProgramNameMethodsUserSpecified }
	Program name. More...

enum	PromptVars { PromptVarsNull }
	User prompt variable. More...

enum	QisvarTypes { QisvarTypesNull }
	QIS variable type. More...

enum	RevMethods { RevMethodsCurrentPartRevision, RevMethodsUserSpecified }
	Revision method. More...

enum	TemperatureUnitsOptions { TemperatureUnitsOptionsFahrenheit, TemperatureUnitsOptionsCentigrade }
	Temperature units specifications. More...

enum	VarScopes { VarScopesGlobal, VarScopesCommon, VarScopesLocal }
	Sets variable scope. More...

enum	VarTypes { VarTypesBoolean, VarTypesInteger, VarTypesLong, VarTypesReal, VarTypesDouble, VarTypesCharacter, VarTypesVector }
	Variable type. More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
int	AngularPlaces ()
	Returns the angular decimal places Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::AngularUnitsOptions	AngularUnits ()
	Returns the angular units Created in NX7.0.0.

bool	AutoToggle ()
	Returns the auto mode toggle Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::CommandTypes	CommandType ()
	Returns the command type Created in NX7.0.0.

NXString	DeviceName ()
	Returns the device name Created in NX9.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::DeviceTypeOptions	DeviceType ()
	Returns the device type Created in NX9.0.0.

int	DevTolPlaces ()
	Returns the deviation and tolerance decimal places Created in NX7.0.0.

std::vector< NXString >	GetProgStatements ()
	Returns the program statements.

double	GotoAangle ()
	Returns the goto A angle Created in NX8.5.0.

double	GotoBangle ()
	Returns the goto B angle Created in NX8.5.0.

NXOpen::CAM::InspectionCmmCommandBuilder::HomePtMethods	HomePtMethod ()
	Returns the home point method Created in NX7.0.0.

NXOpen::Point *	HomePtPoint ()
	Returns the home point location Created in NX7.0.0.

int	HumidityPlaces ()
	Returns the humidity decimal places Created in NX7.0.0.

NXString	IdName ()
	Returns the ID name Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::IdnameMethods	IdnameMethod ()
	Returns the ID name method Created in NX7.0.0.

int	IndexSize ()
	Returns the index size Created in NX7.0.0.

NXOpen::Point *	IntermediatePoint ()
	Returns the intermediate point Created in NX7.0.0.

NXString	JumpLabel ()
	Returns the program jump label Created in NX7.0.0.

int	LinearPlaces ()
	Returns the linear decimal places Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::LinearUnitsOptions	LinearUnits ()
	Returns the linear units Created in NX7.0.0.

bool	ManualToggle ()
	Returns the manual mode toggle Created in NX7.0.0.

bool	MaxToggle ()
	Returns the max toggle Created in NX7.0.0.

double	MaxValue ()
	Returns the max value Created in NX7.0.0.

bool	MinToggle ()
	Returns the min toggle Created in NX7.0.0.

double	MinValue ()
	Returns the min value Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::MoveTypes	MoveType ()
	Returns the move type Created in NX7.0.0.

int	NumChar ()
	Returns the number of characters Created in NX7.0.0.

NXString	OpName ()
	Returns the command operation name Created in NX7.0.0.

NXString	ProgramName ()
	Returns the program name Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::ProgramNameMethods	ProgramNameMethod ()
	Returns the program name method Created in NX7.0.0.

bool	ProgramToggle ()
	Returns the program mode toggle Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::PromptVars	PromptVar ()
	Returns the prompt variable Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::QisvarTypes	QisvarType ()
	Returns the qis variable type Created in NX7.0.0.

NXString	QisvarValue ()
	Returns the qis variable value Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::RevMethods	RevMethod ()
	Returns the revision method Created in NX7.0.0.

NXString	RevName ()
	Returns the revision name Created in NX7.0.0.

NXString	SaveDmlDidLabel ()
	Returns the save DML DID label Created in NX9.0.0.

NXString	SaveDmlPcsLabel ()
	Returns the save DML PCS label Created in NX9.0.0.

bool	SaveDmlPointData ()
	Returns the save DML point data Created in NX9.0.0.

NXString	SaveDmlVersion ()
	Returns the save DML version Created in NX9.0.0.

NXString	SensorName ()
	Returns the sensor name Created in NX8.5.0.

void	SetAngularPlaces (int angularPlaces)
	Sets the angular decimal places Created in NX7.0.0.

void	SetAngularUnits (NXOpen::CAM::InspectionCmmCommandBuilder::AngularUnitsOptions angularUnits)
	Sets the angular units Created in NX7.0.0.

void	SetAutoToggle (bool autoToggle)
	Sets the auto mode toggle Created in NX7.0.0.

void	SetCommandType (NXOpen::CAM::InspectionCmmCommandBuilder::CommandTypes commandType)
	Sets the command type Created in NX7.0.0.

void	SetDeviceName (const NXString &deviceName)
	Sets the device name Created in NX9.0.0.

void	SetDeviceName (const char *deviceName)
	Sets the device name Created in NX9.0.0.

void	SetDeviceType (NXOpen::CAM::InspectionCmmCommandBuilder::DeviceTypeOptions deviceType)
	Sets the device type Created in NX9.0.0.

void	SetDevTolPlaces (int devTolPlaces)
	Sets the deviation and tolerance decimal places Created in NX7.0.0.

void	SetGotoAangle (double gotoAangle)
	Sets the goto A angle Created in NX8.5.0.

void	SetGotoBangle (double gotoBangle)
	Sets the goto B angle Created in NX8.5.0.

void	SetHomePtMethod (NXOpen::CAM::InspectionCmmCommandBuilder::HomePtMethods homePtMethod)
	Sets the home point method Created in NX7.0.0.

void	SetHomePtPoint (NXOpen::Point *homePtPoint)
	Sets the home point location Created in NX7.0.0.

void	SetHumidityPlaces (int humidityPlaces)
	Sets the humidity decimal places Created in NX7.0.0.

void	SetIdName (const NXString &idName)
	Sets the ID name Created in NX7.0.0.

void	SetIdName (const char *idName)
	Sets the ID name Created in NX7.0.0.

void	SetIdnameMethod (NXOpen::CAM::InspectionCmmCommandBuilder::IdnameMethods idnameMethod)
	Sets the ID name method Created in NX7.0.0.

void	SetIndexSize (int indexSize)
	Sets the index size Created in NX7.0.0.

void	SetIntermediatePoint (NXOpen::Point *intermediatePoint)
	Sets the intermediate point Created in NX7.0.0.

void	SetJumpLabel (const NXString &jumpLabel)
	Sets the program jump label Created in NX7.0.0.

void	SetJumpLabel (const char *jumpLabel)
	Sets the program jump label Created in NX7.0.0.

void	SetLinearPlaces (int linearPlaces)
	Sets the linear decimal places Created in NX7.0.0.

void	SetLinearUnits (NXOpen::CAM::InspectionCmmCommandBuilder::LinearUnitsOptions linearUnits)
	Sets the linear units Created in NX7.0.0.

void	SetManualToggle (bool manualToggle)
	Sets the manual mode toggle Created in NX7.0.0.

void	SetMaxToggle (bool maxToggle)
	Sets the max toggle Created in NX7.0.0.

void	SetMaxValue (double maxValue)
	Sets the max value Created in NX7.0.0.

void	SetMinToggle (bool minToggle)
	Sets the min toggle Created in NX7.0.0.

void	SetMinValue (double minValue)
	Sets the min value Created in NX7.0.0.

void	SetMoveType (NXOpen::CAM::InspectionCmmCommandBuilder::MoveTypes moveType)
	Sets the move type Created in NX7.0.0.

void	SetNumChar (int numChar)
	Sets the number of characters Created in NX7.0.0.

void	SetOpName (const NXString &opName)
	Sets the command operation name Created in NX7.0.0.

void	SetOpName (const char *opName)
	Sets the command operation name Created in NX7.0.0.

void	SetProgramName (const NXString &programName)
	Sets the program name Created in NX7.0.0.

void	SetProgramName (const char *programName)
	Sets the program name Created in NX7.0.0.

void	SetProgramNameMethod (NXOpen::CAM::InspectionCmmCommandBuilder::ProgramNameMethods programNameMethod)
	Sets the program name method Created in NX7.0.0.

void	SetProgramToggle (bool programToggle)
	Sets the program mode toggle Created in NX7.0.0.

void	SetProgStatements (std::vector< NXString > &progStatements)
	Sets the program statements Created in NX7.0.0.

void	SetPromptVar (NXOpen::CAM::InspectionCmmCommandBuilder::PromptVars promptVar)
	Sets the prompt variable Created in NX7.0.0.

void	SetQisvarType (NXOpen::CAM::InspectionCmmCommandBuilder::QisvarTypes qisvarType)
	Sets the qis variable type Created in NX7.0.0.

void	SetQisvarValue (const NXString &qisvarValue)
	Sets the qis variable value Created in NX7.0.0.

void	SetQisvarValue (const char *qisvarValue)
	Sets the qis variable value Created in NX7.0.0.

void	SetRevMethod (NXOpen::CAM::InspectionCmmCommandBuilder::RevMethods revMethod)
	Sets the revision method Created in NX7.0.0.

void	SetRevName (const NXString &revName)
	Sets the revision name Created in NX7.0.0.

void	SetRevName (const char *revName)
	Sets the revision name Created in NX7.0.0.

void	SetSaveDmlDidLabel (const NXString &saveDmlDidLabel)
	Sets the save DML DID label Created in NX9.0.0.

void	SetSaveDmlDidLabel (const char *saveDmlDidLabel)
	Sets the save DML DID label Created in NX9.0.0.

void	SetSaveDmlPcsLabel (const NXString &savePcsDidLabel)
	Sets the save DML PCS label Created in NX9.0.0.

void	SetSaveDmlPcsLabel (const char *savePcsDidLabel)
	Sets the save DML PCS label Created in NX9.0.0.

void	SetSaveDmlPointData (bool saveDmlPointData)
	Sets the save DML point data Created in NX9.0.0.

void	SetSaveDmlVersion (const NXString &saveDmlVersion)
	Sets the save DML version Created in NX9.0.0.

void	SetSaveDmlVersion (const char *saveDmlVersion)
	Sets the save DML version Created in NX9.0.0.

void	SetSensorName (const NXString &sensorName)
	Sets the sensor name Created in NX8.5.0.

void	SetSensorName (const char *sensorName)
	Sets the sensor name Created in NX8.5.0.

void	SetTargetPoint (NXOpen::Point *targetPoint)
	Sets the target point Created in NX7.0.0.

void	SetTemperaturePlaces (int temperaturePlaces)
	Sets the temperature decimal places Created in NX7.0.0.

void	SetTemperatureUnits (NXOpen::CAM::InspectionCmmCommandBuilder::TemperatureUnitsOptions temperatureUnits)
	Sets the temperature units Created in NX7.0.0.

void	SetToolName (const NXString &toolName)
	Sets the tool name Created in NX8.5.0.

void	SetToolName (const char *toolName)
	Sets the tool name Created in NX8.5.0.

void	SetUserPrompt (const NXString &userPrompt)
	Sets the user prompt Created in NX7.0.0.

void	SetUserPrompt (const char *userPrompt)
	Sets the user prompt Created in NX7.0.0.

void	SetVarName (const NXString &varName)
	Sets the variable name Created in NX7.0.0.

void	SetVarName (const char *varName)
	Sets the variable name Created in NX7.0.0.

void	SetVarScope (NXOpen::CAM::InspectionCmmCommandBuilder::VarScopes varScope)
	Sets the variable scope Created in NX7.0.0.

void	SetVarType (NXOpen::CAM::InspectionCmmCommandBuilder::VarTypes varType)
	Sets the variable type Created in NX7.0.0.

void	SetVectorPlaces (int vectorPlaces)
	Sets the vector decimal places Created in NX7.0.0.

NXOpen::Point *	TargetPoint ()
	Returns the target point Created in NX7.0.0.

int	TemperaturePlaces ()
	Returns the temperature decimal places Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::TemperatureUnitsOptions	TemperatureUnits ()
	Returns the temperature units Created in NX7.0.0.

NXString	ToolName ()
	Returns the tool name Created in NX8.5.0.

NXString	UserPrompt ()
	Returns the user prompt Created in NX7.0.0.

NXString	VarName ()
	Returns the variable name Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::VarScopes	VarScope ()
	Returns the variable scope Created in NX7.0.0.

NXOpen::CAM::InspectionCmmCommandBuilder::VarTypes	VarType ()
	Returns the variable type Created in NX7.0.0.

int	VectorPlaces ()
	Returns the vector decimal places Created in NX7.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CMM Inspection miscellaneous command builder.

To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionCmmCommandBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionCmmCommandBuilder::AngularUnitsOptions

Angular units specifications.

Enumerator:

AngularUnitsOptionsDecimalDegrees	Use decimal degrees.
AngularUnitsOptionsRadians	Use radians.
AngularUnitsOptionsDegreesMinutesSeconds	Use Degrees:Minutes:Seconds.

enum NXOpen::CAM::InspectionCmmCommandBuilder::CommandTypes

The type of CMM command to be entered.

Enumerator:

CommandTypesEnterStatement	Enter any CMM statement.
CommandTypesMeasurementMode	Enter a statement to set the measurement mode.
CommandTypesDefineHomePoint	Enter a statement defining the home point.
CommandTypesMoveMachine	Enter a statement to move the machine.
CommandTypesOutputDecimalPlaces	Enter a statement defining the number of decimal places for output.
CommandTypesDeclareVariable	Enter a statement declaring a variable.
CommandTypesQISVariable	Enter a statement declaring a QIS variable.
CommandTypesPromptforInput	Enter a statement prompting the user for input.
CommandTypesProgramLabel	Enter a program label statement.
CommandTypesJumptoLabel	Enter a jump to label statement.
CommandTypesProgramHeader	Enter a program header statement.
CommandTypesSensorSelect	Enter a statement defining a sensor selection statement.
CommandTypesDevice	Enter a statement defining a device statement.
CommandTypesSaveDml	Enter a statement defining a Save DML statement.

enum NXOpen::CAM::InspectionCmmCommandBuilder::DeviceTypeOptions

Device Type specifications.

Enumerator:

DeviceTypeOptionsStor	Use STOR.
DeviceTypeOptionsTerm	Use TERM.
DeviceTypeOptionsPrint	Use Print.
DeviceTypeOptionsComm	Use Comm.
DeviceTypeOptionsIncr	Use Incr.

enum NXOpen::CAM::InspectionCmmCommandBuilder::HomePtMethods

The method used to specify the home point.

Enumerator:

HomePtMethodsMachineZero	Use the Machine zero point as the home point.
HomePtMethodsUserSpecifiedPoint	Use a user specified point as the home point.

enum NXOpen::CAM::InspectionCmmCommandBuilder::IdnameMethods

Naming method.

Enumerator:

IdnameMethodsCurrentPartName	Use current part name for ID.
IdnameMethodsUserSpecified	Use user specified name for ID.

enum NXOpen::CAM::InspectionCmmCommandBuilder::LinearUnitsOptions

Linear units specifications.

Enumerator:

LinearUnitsOptionsPartUnits	Use part units.
LinearUnitsOptionsMillimeters	Use millimeters.
LinearUnitsOptionsCentimeters	Use centimeters.
LinearUnitsOptionsMeters	Use meters.
LinearUnitsOptionsInches	Use inches.
LinearUnitsOptionsFeet	Use feat.

enum NXOpen::CAM::InspectionCmmCommandBuilder::MoveTypes

The type of move.

Enumerator:

MoveTypesLinearMove	Specifies a linear move.
MoveTypesArcMove	Specifies an arc move.
MoveTypesHomeLocation	Specifies a move to the home location.
MoveTypesLinear5axis	Specifies a linear 5 axis move.

enum NXOpen::CAM::InspectionCmmCommandBuilder::ProgramNameMethods

Program name.

Enumerator:

ProgramNameMethodsCurrentPartName	Use current part name for program name.
ProgramNameMethodsUserSpecified	Use user specified name for program name.

enum NXOpen::CAM::InspectionCmmCommandBuilder::PromptVars

User prompt variable.

Enumerator:

PromptVarsNull

Specifies a NULL prompt.

enum NXOpen::CAM::InspectionCmmCommandBuilder::QisvarTypes

QIS variable type.

Enumerator:

QisvarTypesNull

Specifies a NULL QIS variable.

enum NXOpen::CAM::InspectionCmmCommandBuilder::RevMethods

Revision method.

Enumerator:

RevMethodsCurrentPartRevision	Use current part revision.
RevMethodsUserSpecified	Use user specified revision.

enum NXOpen::CAM::InspectionCmmCommandBuilder::TemperatureUnitsOptions

Temperature units specifications.

Enumerator:

TemperatureUnitsOptionsFahrenheit	Use fahrenheit.
TemperatureUnitsOptionsCentigrade	Use Centigrade.

enum NXOpen::CAM::InspectionCmmCommandBuilder::VarScopes

Sets variable scope.

Enumerator:

VarScopesGlobal	Variable has global scope.
VarScopesCommon	Variable has common scope.
VarScopesLocal	Variable has local scope.

enum NXOpen::CAM::InspectionCmmCommandBuilder::VarTypes

Variable type.

Enumerator:

VarTypesBoolean	Specifies a boolean variable.
VarTypesInteger	Specifies an integer variable.
VarTypesLong	Specifies a long integer variable.
VarTypesReal	Specifies a real variable.
VarTypesDouble	Specifies a double variable.
VarTypesCharacter	Specifies a character variable.
VarTypesVector	Specifies a vector variable.

Member Function Documentation

int NXOpen::CAM::InspectionCmmCommandBuilder::AngularPlaces ( )

Returns the angular decimal places
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::AngularUnitsOptions NXOpen::CAM::InspectionCmmCommandBuilder::AngularUnits ( )

Returns the angular units
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionCmmCommandBuilder::AutoToggle ( )

Returns the auto mode toggle
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::CommandTypes NXOpen::CAM::InspectionCmmCommandBuilder::CommandType ( )

Returns the command type
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::DeviceName ( )

Returns the device name
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::DeviceTypeOptions NXOpen::CAM::InspectionCmmCommandBuilder::DeviceType ( )

Returns the device type
Created in NX9.0.0.

License requirements : None

int NXOpen::CAM::InspectionCmmCommandBuilder::DevTolPlaces ( )

Returns the deviation and tolerance decimal places
Created in NX7.0.0.

License requirements : None

std::vector<NXString> NXOpen::CAM::InspectionCmmCommandBuilder::GetProgStatements ( )

Returns the program statements.

Returns: Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionCmmCommandBuilder::GotoAangle ( )

Returns the goto A angle
Created in NX8.5.0.

License requirements : None

double NXOpen::CAM::InspectionCmmCommandBuilder::GotoBangle ( )

Returns the goto B angle
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::HomePtMethods NXOpen::CAM::InspectionCmmCommandBuilder::HomePtMethod ( )

Returns the home point method
Created in NX7.0.0.

License requirements : None

NXOpen::Point* NXOpen::CAM::InspectionCmmCommandBuilder::HomePtPoint ( )

Returns the home point location
Created in NX7.0.0.

License requirements : None

int NXOpen::CAM::InspectionCmmCommandBuilder::HumidityPlaces ( )

Returns the humidity decimal places
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::IdName ( )

Returns the ID name
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::IdnameMethods NXOpen::CAM::InspectionCmmCommandBuilder::IdnameMethod ( )

Returns the ID name method
Created in NX7.0.0.

License requirements : None

int NXOpen::CAM::InspectionCmmCommandBuilder::IndexSize ( )

Returns the index size
Created in NX7.0.0.

License requirements : None

NXOpen::Point* NXOpen::CAM::InspectionCmmCommandBuilder::IntermediatePoint ( )

Returns the intermediate point
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::JumpLabel ( )

Returns the program jump label
Created in NX7.0.0.

License requirements : None

int NXOpen::CAM::InspectionCmmCommandBuilder::LinearPlaces ( )

Returns the linear decimal places
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::LinearUnitsOptions NXOpen::CAM::InspectionCmmCommandBuilder::LinearUnits ( )

Returns the linear units
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionCmmCommandBuilder::ManualToggle ( )

Returns the manual mode toggle
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionCmmCommandBuilder::MaxToggle ( )

Returns the max toggle
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionCmmCommandBuilder::MaxValue ( )

Returns the max value
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionCmmCommandBuilder::MinToggle ( )

Returns the min toggle
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionCmmCommandBuilder::MinValue ( )

Returns the min value
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::MoveTypes NXOpen::CAM::InspectionCmmCommandBuilder::MoveType ( )

Returns the move type
Created in NX7.0.0.

License requirements : None

int NXOpen::CAM::InspectionCmmCommandBuilder::NumChar ( )

Returns the number of characters
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::OpName ( )

Returns the command operation name
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::ProgramName ( )

Returns the program name
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::ProgramNameMethods NXOpen::CAM::InspectionCmmCommandBuilder::ProgramNameMethod ( )

Returns the program name method
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionCmmCommandBuilder::ProgramToggle ( )

Returns the program mode toggle
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::PromptVars NXOpen::CAM::InspectionCmmCommandBuilder::PromptVar ( )

Returns the prompt variable
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::QisvarTypes NXOpen::CAM::InspectionCmmCommandBuilder::QisvarType ( )

Returns the qis variable type
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::QisvarValue ( )

Returns the qis variable value
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionCmmCommandBuilder::RevMethods NXOpen::CAM::InspectionCmmCommandBuilder::RevMethod ( )

Returns the revision method
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::RevName ( )

Returns the revision name
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::SaveDmlDidLabel ( )

Returns the save DML DID label
Created in NX9.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::SaveDmlPcsLabel ( )

Returns the save DML PCS label
Created in NX9.0.0.

License requirements : None

bool NXOpen::CAM::InspectionCmmCommandBuilder::SaveDmlPointData ( )

Returns the save DML point data
Created in NX9.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::SaveDmlVersion ( )

Returns the save DML version
Created in NX9.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionCmmCommandBuilder::SensorName ( )

Returns the sensor name
Created in NX8.5.0.

License requirements : None

void NXOpen::CAM::InspectionCmmCommandBuilder::SetAngularPlaces ( int angularPlaces )

Sets the angular decimal places
Created in NX7.0.0.
