Represents a CMM Inspection Alignment builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionAlignmentBuilder

Created in NX7.5.2. More...

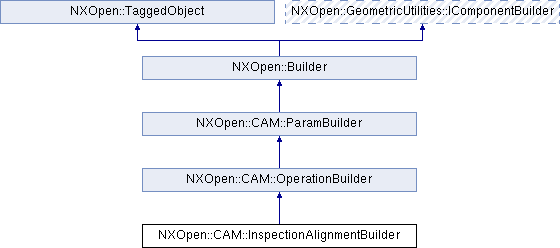

Inheritance diagram for NXOpen::CAM::InspectionAlignmentBuilder:

Public Types
enum	AlignmentDirections { AlignmentDirectionsNone, AlignmentDirectionsPxdir, AlignmentDirectionsPydir, AlignmentDirectionsPzdir, AlignmentDirectionsMxdir, AlignmentDirectionsMydir, AlignmentDirectionsMzdir }
	Alignment directions of datum features. More...

enum	AlignTypes { AlignTypesSetPCStoMCS, AlignTypesSetPCStoCSYS, AlignTypesTranslatePCSOrigin, AlignTypesRotatePCS, AlignTypesDefinePCSfromDatums, AlignTypesIterate, AlignTypesDefinePCSfromActualDeviations, AlignTypesSavePCS, AlignTypesRecallPCS, AlignTypesRotateTable, AlignTypesSetPCStoCADABS }
	Alignment Operation Type. More...

enum	IterDevTypes { IterDevTypesAbsolute, IterDevTypesIncremental }
	Iterate deviation type. More...

enum	RecallStates { RecallStatesInternal, RecallStatesExternal }
	PCS state to recall, either internal or external. More...

enum	RotateTableDirections { RotateTableDirectionsClockwise, RotateTableDirectionsCounterClockwise, RotateTableDirectionsShortest }
	Rotary table direction. More...

enum	RotateTableMethods { RotateTableMethodsAbsolute, RotateTableMethodsIncremental, RotateTableMethodsNominalFeature, RotateTableMethodsMeasuredFeature }
	Rotary Table methods. More...

enum	RotateTablePcsUpdateOptions { RotateTablePcsUpdateOptionsTotal, RotateTablePcsUpdateOptionsOrigin, RotateTablePcsUpdateOptionsNull }
	Rotary table PCS Update options. More...

enum	RotationAxisOptions { RotationAxisOptionsXaxis, RotationAxisOptionsYaxis, RotationAxisOptionsZaxis }
	PCS Axis to Rotate about. More...

enum	RotationDirections { RotationDirectionsPxdir, RotationDirectionsPydir, RotationDirectionsPzdir, RotationDirectionsMxdir, RotationDirectionsMydir, RotationDirectionsMzdir }
	Direction to rotate about. More...

enum	RotationMethods { RotationMethodsAngle, RotationMethodsDatum, RotationMethodsNominalFeature, RotationMethodsMeasuredFeature }
	PCS Rotation method. More...

enum	SaveStates { SaveStatesActual, SaveStatesNominal }
	PCS state to save, either Actual or nominal. More...

enum	XtMethods { XtMethodsDistance, XtMethodsDatum, XtMethodsNominalFeature, XtMethodsMeasuredFeature }
	PCS Translation method in X direction. More...

enum	YtMethods { YtMethodsDistance, YtMethodsDatum, YtMethodsNominalFeature, YtMethodsMeasuredFeature }
	PCS Translation method in Y direction. More...

enum	ZtMethods { ZtMethodsDistance, ZtMethodsDatum, ZtMethodsNominalFeature, ZtMethodsMeasuredFeature }
	PCS Translation method in Z direction. More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
NXString	AlignOpName ()
	Returns the align op name Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::AlignTypes	AlignType ()
	Returns the alignment type Created in NX7.0.0.

NXOpen::Assemblies::SelectComponent *	ComponentSelection ()
	Returns the component selection Created in NX9.0.0.

NXOpen::CoordinateSystem *	CsysPick ()
	Returns the csys pick Created in NX7.0.0.

NXString	FailGroupName ()
	Returns the fail group name Created in NX7.0.0.

NXOpen::SelectNXObject *	IterAvailSelect ()
	Returns the iter avail select Created in NX7.0.0.

NXString	IterConvergeVar ()
	Returns the iter converge variable Created in NX7.0.0.

double	IterDev ()
	Returns the iter deviation Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::IterDevTypes	IterDevType ()
	Returns the iter deviation type Created in NX7.0.0.

NXString	IterGroupName ()
	Returns the iter group name Created in NX7.0.0.

int	IterMax ()
	Returns the iter max iterations Created in NX7.0.0.

NXOpen::SelectNXObject *	LocateAvailSelect ()
	Returns the locate avail select Created in NX7.0.0.

bool	LocateXrot ()
	Returns the locate xrot Created in NX7.0.0.

bool	LocateXtrans ()
	Returns the locate xtrans Created in NX7.0.0.

bool	LocateYrot ()
	Returns the locate yrot Created in NX7.0.0.

bool	LocateYtrans ()
	Returns the locate ytrans Created in NX7.0.0.

bool	LocateZrot ()
	Returns the locate zrot Created in NX7.0.0.

bool	LocateZtrans ()
	Returns the locate ztrans Created in NX7.0.0.

NXString	PcsName ()
	Returns the pcs name Created in NX7.0.0.

NXString	PriDatLetter ()
	Returns the pri dat letter Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections	PriDirection ()
	Returns the pri direction Created in NX7.0.0.

bool	PriXorigin ()
	Returns the pri xorigin Created in NX7.0.0.

bool	PriYorigin ()
	Returns the pri yorigin Created in NX7.0.0.

bool	PriZorigin ()
	Returns the pri zorigin Created in NX7.0.0.

NXOpen::CoordinateSystem *	RecallCsys ()
	Returns the recall csys Created in NX7.0.0.

NXString	RecallDid ()
	Returns the recall device id Created in NX7.0.0.

NXString	RecallExtName ()
	Returns the recall external name Created in NX7.0.0.

NXString	RecallIntName ()
	Returns the recall internal name Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::RecallStates	RecallState ()
	Returns the recall state Created in NX7.0.0.

double	RotateTableAngle ()
	Returns the angle to rotate table Created in NX7.5.2.

double	RotateTableAngularDeviation ()
	Returns the rotate table angular deviation Created in NX7.5.2.

NXOpen::CAM::InspectionAlignmentBuilder::RotateTableDirections	RotateTableDirection ()
	Returns the rotate table direction Created in NX7.5.2.

NXString	RotateTableFeature ()
	Returns the feature used to position table Created in NX7.5.2.

NXOpen::SelectNXObject *	RotateTableFeatureSelect ()
	Returns the feature selected to position table Created in NX7.5.2.

NXOpen::CAM::InspectionAlignmentBuilder::RotateTableMethods	RotateTableMethod ()
	Returns the rotate table method Created in NX7.5.2.

NXString	RotateTableName ()
	Returns the name of rotary table to rotate Created in NX7.5.2.

NXOpen::CAM::InspectionAlignmentBuilder::RotateTablePcsUpdateOptions	RotateTablePcsUpdateOption ()
	Returns the rotate table pcs update Created in NX7.5.2.

double	RotationAngle ()
	Returns the rot angle Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::RotationAxisOptions	RotationAxis ()
	Returns the rot axis Created in NX7.0.0.

NXString	RotationDatumLetter ()
	Returns the rot datum letter Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::RotationDirections	RotationDirection ()
	Returns the rot dir Created in NX7.0.0.

NXString	RotationFeature ()
	Returns the rot feature Created in NX7.0.0.

NXOpen::SelectNXObject *	RotationFeatureSelect ()
	Returns the rot feature select Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::RotationMethods	RotationMethod ()
	Returns the rot method Created in NX7.0.0.

NXString	SaveDid ()
	Returns the save device id Created in NX7.0.0.

NXString	SavePcsLabel ()
	Returns the save pcs label Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::SaveStates	SaveState ()
	Returns the save state Created in NX7.0.0.

NXString	SecDatLetter ()
	Returns the sec dat letter Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections	SecDirection ()
	Returns the sec direction Created in NX7.0.0.

bool	SecXorigin ()
	Returns the sec xorigin Created in NX7.0.0.

bool	SecYorigin ()
	Returns the sec yorigin Created in NX7.0.0.

bool	SecZorigin ()
	Returns the sec zorigin Created in NX7.0.0.

void	SetAlignOpName (const NXString &alignOpName)
	Sets the align op name Created in NX7.0.0.

void	SetAlignOpName (const char *alignOpName)
	Sets the align op name Created in NX7.0.0.

void	SetAlignType (NXOpen::CAM::InspectionAlignmentBuilder::AlignTypes alignType)
	Sets the alignment type Created in NX7.0.0.

void	SetCsysPick (NXOpen::CoordinateSystem *csysPick)
	Sets the csys pick Created in NX7.0.0.

void	SetFailGroupName (const NXString &failGroupName)
	Sets the fail group name Created in NX7.0.0.

void	SetFailGroupName (const char *failGroupName)
	Sets the fail group name Created in NX7.0.0.

void	SetIterConvergeVar (const NXString &iterConvergeVar)
	Sets the iter converge variable Created in NX7.0.0.

void	SetIterConvergeVar (const char *iterConvergeVar)
	Sets the iter converge variable Created in NX7.0.0.

void	SetIterDev (double iterDev)
	Sets the iter deviation Created in NX7.0.0.

void	SetIterDevType (NXOpen::CAM::InspectionAlignmentBuilder::IterDevTypes iterDevType)
	Sets the iter deviation type Created in NX7.0.0.

void	SetIterGroupName (const NXString &iterGroupName)
	Sets the iter group name Created in NX7.0.0.

void	SetIterGroupName (const char *iterGroupName)
	Sets the iter group name Created in NX7.0.0.

void	SetIterMax (int iterMax)
	Sets the iter max iterations Created in NX7.0.0.

void	SetLocateXrot (bool locateXrot)
	Sets the locate xrot Created in NX7.0.0.

void	SetLocateXtrans (bool locateXtrans)
	Sets the locate xtrans Created in NX7.0.0.

void	SetLocateYrot (bool locateYrot)
	Sets the locate yrot Created in NX7.0.0.

void	SetLocateYtrans (bool locateYtrans)
	Sets the locate ytrans Created in NX7.0.0.

void	SetLocateZrot (bool locateZrot)
	Sets the locate zrot Created in NX7.0.0.

void	SetLocateZtrans (bool locateZtrans)
	Sets the locate ztrans Created in NX7.0.0.

void	SetPcsName (const NXString &pcsName)
	Sets the pcs name Created in NX7.0.0.

void	SetPcsName (const char *pcsName)
	Sets the pcs name Created in NX7.0.0.

void	SetPriDatLetter (const NXString &priDatLetter)
	Sets the pri dat letter Created in NX7.0.0.

void	SetPriDatLetter (const char *priDatLetter)
	Sets the pri dat letter Created in NX7.0.0.

void	SetPriDirection (NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections priDirection)
	Sets the pri direction Created in NX7.0.0.

void	SetPriXorigin (bool priXorigin)
	Sets the pri xorigin Created in NX7.0.0.

void	SetPriYorigin (bool priYorigin)
	Sets the pri yorigin Created in NX7.0.0.

void	SetPriZorigin (bool priZorigin)
	Sets the pri zorigin Created in NX7.0.0.

void	SetRecallCsys (NXOpen::CoordinateSystem *recallCsys)
	Sets the recall csys Created in NX7.0.0.

void	SetRecallDid (const NXString &recallDid)
	Sets the recall device id Created in NX7.0.0.

void	SetRecallDid (const char *recallDid)
	Sets the recall device id Created in NX7.0.0.

void	SetRecallExtName (const NXString &recallExtName)
	Sets the recall external name Created in NX7.0.0.

void	SetRecallExtName (const char *recallExtName)
	Sets the recall external name Created in NX7.0.0.

void	SetRecallIntName (const NXString &recallIntName)
	Sets the recall internal name Created in NX7.0.0.

void	SetRecallIntName (const char *recallIntName)
	Sets the recall internal name Created in NX7.0.0.

void	SetRecallState (NXOpen::CAM::InspectionAlignmentBuilder::RecallStates recallState)
	Sets the recall state Created in NX7.0.0.

void	SetRotateTableAngle (double angle)
	Sets the angle to rotate table Created in NX7.5.2.

void	SetRotateTableAngularDeviation (double fz)
	Sets the rotate table angular deviation Created in NX7.5.2.

void	SetRotateTableDirection (NXOpen::CAM::InspectionAlignmentBuilder::RotateTableDirections direction)
	Sets the rotate table direction Created in NX7.5.2.

void	SetRotateTableFeature (const NXString &rotateTableFeature)
	Sets the feature used to position table Created in NX7.5.2.

void	SetRotateTableFeature (const char *rotateTableFeature)
	Sets the feature used to position table Created in NX7.5.2.

void	SetRotateTableMethod (NXOpen::CAM::InspectionAlignmentBuilder::RotateTableMethods method)
	Sets the rotate table method Created in NX7.5.2.

void	SetRotateTableName (const NXString &tableName)
	Sets the name of rotary table to rotate Created in NX7.5.2.

void	SetRotateTableName (const char *tableName)
	Sets the name of rotary table to rotate Created in NX7.5.2.

void	SetRotateTablePcsUpdateOption (NXOpen::CAM::InspectionAlignmentBuilder::RotateTablePcsUpdateOptions pcsUpdate)
	Sets the rotate table pcs update Created in NX7.5.2.

void	SetRotationAngle (double rotationAngle)
	Sets the rot angle Created in NX7.0.0.

void	SetRotationAxis (NXOpen::CAM::InspectionAlignmentBuilder::RotationAxisOptions rotationAxis)
	Sets the rot axis Created in NX7.0.0.

void	SetRotationDatumLetter (const NXString &rotationDatumLetter)
	Sets the rot datum letter Created in NX7.0.0.

void	SetRotationDatumLetter (const char *rotationDatumLetter)
	Sets the rot datum letter Created in NX7.0.0.

void	SetRotationDirection (NXOpen::CAM::InspectionAlignmentBuilder::RotationDirections rotationDirection)
	Sets the rot dir Created in NX7.0.0.

void	SetRotationFeature (const NXString &rotationFeature)
	Sets the rot feature Created in NX7.0.0.

void	SetRotationFeature (const char *rotationFeature)
	Sets the rot feature Created in NX7.0.0.

void	SetRotationMethod (NXOpen::CAM::InspectionAlignmentBuilder::RotationMethods rotationMethod)
	Sets the rot method Created in NX7.0.0.

void	SetSaveDid (const NXString &saveDid)
	Sets the save device id Created in NX7.0.0.

void	SetSaveDid (const char *saveDid)
	Sets the save device id Created in NX7.0.0.

void	SetSavePcsLabel (const NXString &savePcsLabel)
	Sets the save pcs label Created in NX7.0.0.

void	SetSavePcsLabel (const char *savePcsLabel)
	Sets the save pcs label Created in NX7.0.0.

void	SetSaveState (NXOpen::CAM::InspectionAlignmentBuilder::SaveStates saveState)
	Sets the save state Created in NX7.0.0.

void	SetSecDatLetter (const NXString &secDatLetter)
	Sets the sec dat letter Created in NX7.0.0.

void	SetSecDatLetter (const char *secDatLetter)
	Sets the sec dat letter Created in NX7.0.0.

void	SetSecDirection (NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections secDirection)
	Sets the sec direction Created in NX7.0.0.

void	SetSecXorigin (bool secXorigin)
	Sets the sec xorigin Created in NX7.0.0.

void	SetSecYorigin (bool secYorigin)
	Sets the sec yorigin Created in NX7.0.0.

void	SetSecZorigin (bool secZorigin)
	Sets the sec zorigin Created in NX7.0.0.

void	SetTerDatLetter (const NXString &terDatLetter)
	Sets the ter dat letter Created in NX7.0.0.

void	SetTerDatLetter (const char *terDatLetter)
	Sets the ter dat letter Created in NX7.0.0.

void	SetTerDirection (NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections terDirection)
	Sets the ter xdirection Created in NX7.0.0.

void	SetTerXorigin (bool terXorigin)
	Sets the ter xorigin Created in NX7.0.0.

void	SetTerYorigin (bool terYorigin)
	Sets the ter yorigin Created in NX7.0.0.

void	SetTerZorigin (bool terZorigin)
	Sets the ter zorigin Created in NX7.0.0.

void	SetWcsOrientOption (bool wcsOrientOption)
	Sets the WCS Orient option Created in NX8.5.3.

void	SetXtDatumLetter (const NXString &xtDatumLetter)
	Sets the xt datum letter Created in NX7.0.0.

void	SetXtDatumLetter (const char *xtDatumLetter)
	Sets the xt datum letter Created in NX7.0.0.

void	SetXtDistance (double xtDistance)
	Sets the xt distance Created in NX7.0.0.

void	SetXtFeature (const NXString &xtFeature)
	Sets the xt feature Created in NX7.0.0.

void	SetXtFeature (const char *xtFeature)
	Sets the xt feature Created in NX7.0.0.

void	SetXtMethod (NXOpen::CAM::InspectionAlignmentBuilder::XtMethods xtMethod)
	Sets the xt method Created in NX7.0.0.

void	SetYtDatumLetter (const NXString &ytDatumLetter)
	Sets the yt datum letter Created in NX7.0.0.

void	SetYtDatumLetter (const char *ytDatumLetter)
	Sets the yt datum letter Created in NX7.0.0.

void	SetYtDistance (double ytDistance)
	Sets the yt distance Created in NX7.0.0.

void	SetYtFeature (const NXString &ytFeature)
	Sets the yt feature Created in NX7.0.0.

void	SetYtFeature (const char *ytFeature)
	Sets the yt feature Created in NX7.0.0.

void	SetYtMethod (NXOpen::CAM::InspectionAlignmentBuilder::YtMethods ytMethod)
	Sets the yt method Created in NX7.0.0.

void	SetZtDatumLetter (const NXString &ztDatumLetter)
	Sets the zt datum letter Created in NX7.0.0.

void	SetZtDatumLetter (const char *ztDatumLetter)
	Sets the zt datum letter Created in NX7.0.0.

void	SetZtDistance (double ztDistance)
	Sets the zt distance Created in NX7.0.0.

void	SetZtFeature (const NXString &ztFeature)
	Sets the zt feature Created in NX7.0.0.

void	SetZtFeature (const char *ztFeature)
	Sets the zt feature Created in NX7.0.0.

void	SetZtMethod (NXOpen::CAM::InspectionAlignmentBuilder::ZtMethods ztMethod)
	Sets the zt method Created in NX7.0.0.

NXString	TerDatLetter ()
	Returns the ter dat letter Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections	TerDirection ()
	Returns the ter xdirection Created in NX7.0.0.

bool	TerXorigin ()
	Returns the ter xorigin Created in NX7.0.0.

bool	TerYorigin ()
	Returns the ter yorigin Created in NX7.0.0.

bool	TerZorigin ()
	Returns the ter zorigin Created in NX7.0.0.

bool	WcsOrientOption ()
	Returns the WCS Orient option Created in NX8.5.3.

NXString	XtDatumLetter ()
	Returns the xt datum letter Created in NX7.0.0.

double	XtDistance ()
	Returns the xt distance Created in NX7.0.0.

NXString	XtFeature ()
	Returns the xt feature Created in NX7.0.0.

NXOpen::SelectNXObject *	XtFeatureSelect ()
	Returns the xt feature select Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::XtMethods	XtMethod ()
	Returns the xt method Created in NX7.0.0.

NXString	YtDatumLetter ()
	Returns the yt datum letter Created in NX7.0.0.

double	YtDistance ()
	Returns the yt distance Created in NX7.0.0.

NXString	YtFeature ()
	Returns the yt feature Created in NX7.0.0.

NXOpen::SelectNXObject *	YtFeatureSelect ()
	Returns the yt feature select Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::YtMethods	YtMethod ()
	Returns the yt method Created in NX7.0.0.

NXString	ZtDatumLetter ()
	Returns the zt datum letter Created in NX7.0.0.

double	ZtDistance ()
	Returns the zt distance Created in NX7.0.0.

NXString	ZtFeature ()
	Returns the zt feature Created in NX7.0.0.

NXOpen::SelectNXObject *	ZtFeatureSelect ()
	Returns the zt feature select Created in NX7.0.0.

NXOpen::CAM::InspectionAlignmentBuilder::ZtMethods	ZtMethod ()
	Returns the zt method Created in NX7.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CMM Inspection Alignment builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionAlignmentBuilder

Created in NX7.5.2.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections

Alignment directions of datum features.

Enumerator:

AlignmentDirectionsNone	No alignment direction specified.
AlignmentDirectionsPxdir	Align feature in the positive X direction.
AlignmentDirectionsPydir	Align feature in the positive Y direction.
AlignmentDirectionsPzdir	Align feature in the positive Z direction.
AlignmentDirectionsMxdir	Align feature in the negitive X direction.
AlignmentDirectionsMydir	Align feature in the negitive Y direction.
AlignmentDirectionsMzdir	Align feature in the negitive Z direction.

enum NXOpen::CAM::InspectionAlignmentBuilder::AlignTypes

Alignment Operation Type.

Enumerator:

AlignTypesSetPCStoMCS	Set the PCS to Machine CS.
AlignTypesSetPCStoCSYS	Set the PCS to a NX Csys.
AlignTypesTranslatePCSOrigin	Translate the PCS.
AlignTypesRotatePCS	Rotate the PCS.
AlignTypesDefinePCSfromDatums	Define the PCS from datums.
AlignTypesIterate	Iterate a set of features for convergence.
AlignTypesDefinePCSfromActualDeviations	Locate PCS from Features.
AlignTypesSavePCS	Save current PCS.
AlignTypesRecallPCS	Recall previously saved PCS.
AlignTypesRotateTable	Rotate table.
AlignTypesSetPCStoCADABS	Set the PCS to Cadabs.

enum NXOpen::CAM::InspectionAlignmentBuilder::IterDevTypes

Iterate deviation type.

Enumerator:

IterDevTypesAbsolute	Absolute deviation.
IterDevTypesIncremental	Incremental deviation.

enum NXOpen::CAM::InspectionAlignmentBuilder::RecallStates

PCS state to recall, either internal or external.

Enumerator:

RecallStatesInternal	Recall internal PCS.
RecallStatesExternal	Recall external PCS.

enum NXOpen::CAM::InspectionAlignmentBuilder::RotateTableDirections

Rotary table direction.

Enumerator:

RotateTableDirectionsClockwise	Rotate table in clockwise direction.
RotateTableDirectionsCounterClockwise	Rotate table in counter clockwise direction.
RotateTableDirectionsShortest	Rotate table in shortest direction.

enum NXOpen::CAM::InspectionAlignmentBuilder::RotateTableMethods

Rotary Table methods.

Enumerator:

RotateTableMethodsAbsolute	Rotate table to absolute value.
RotateTableMethodsIncremental	Rotate table by incremental value.
RotateTableMethodsNominalFeature	Rotate table by nominal feature.
RotateTableMethodsMeasuredFeature	Rotate table by measured feature.

enum NXOpen::CAM::InspectionAlignmentBuilder::RotateTablePcsUpdateOptions

Rotary table PCS Update options.

Enumerator:

RotateTablePcsUpdateOptionsTotal	Totally update the PCS.
RotateTablePcsUpdateOptionsOrigin	Only update the PCS origin.
RotateTablePcsUpdateOptionsNull	No update of the PCS.

enum NXOpen::CAM::InspectionAlignmentBuilder::RotationAxisOptions

PCS Axis to Rotate about.

Enumerator:

RotationAxisOptionsXaxis	Rotate about X axis.
RotationAxisOptionsYaxis	Rotate about Y axis.
RotationAxisOptionsZaxis	Rotate about Z axis.

enum NXOpen::CAM::InspectionAlignmentBuilder::RotationDirections

Direction to rotate about.

Enumerator:

RotationDirectionsPxdir	Rotate in the positive X direction.
RotationDirectionsPydir	Rotate in the positive Y direction.
RotationDirectionsPzdir	Rotate in the positive Z direction.
RotationDirectionsMxdir	Rotate in the negitive X direction.
RotationDirectionsMydir	Rotate in the negitive Y direction.
RotationDirectionsMzdir	Rotate in the negitive Z direction.

enum NXOpen::CAM::InspectionAlignmentBuilder::RotationMethods

PCS Rotation method.

Enumerator:

RotationMethodsAngle	Rotate by absolute angle.
RotationMethodsDatum	Rotate by Datum.
RotationMethodsNominalFeature	Rotate by Nominal Feature.
RotationMethodsMeasuredFeature	Rotate by Actual Feature.

enum NXOpen::CAM::InspectionAlignmentBuilder::SaveStates

PCS state to save, either Actual or nominal.

Enumerator:

SaveStatesActual	Save Actual PCS.
SaveStatesNominal	Save Nominal PCS.

enum NXOpen::CAM::InspectionAlignmentBuilder::XtMethods

PCS Translation method in X direction.

Enumerator:

XtMethodsDistance	Translate a distance.
XtMethodsDatum	Translate by Datum.
XtMethodsNominalFeature	Translate by Nominal Feature.
XtMethodsMeasuredFeature	Translate by Measured Feature.

enum NXOpen::CAM::InspectionAlignmentBuilder::YtMethods

PCS Translation method in Y direction.

Enumerator:

YtMethodsDistance	Translate a distance.
YtMethodsDatum	Translate by Datum.
YtMethodsNominalFeature	Translate by Nominal Feature.
YtMethodsMeasuredFeature	Translate by Measured Feature.

enum NXOpen::CAM::InspectionAlignmentBuilder::ZtMethods

PCS Translation method in Z direction.

Enumerator:

ZtMethodsDistance	Translate a distance.
ZtMethodsDatum	Translate by Datum.
ZtMethodsNominalFeature	Translate by Nominal Feature.
ZtMethodsMeasuredFeature	Translate by Measured Feature.

Member Function Documentation

NXString NXOpen::CAM::InspectionAlignmentBuilder::AlignOpName ( )

Returns the align op name
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::AlignTypes NXOpen::CAM::InspectionAlignmentBuilder::AlignType ( )

Returns the alignment type
Created in NX7.0.0.

License requirements : None

NXOpen::Assemblies::SelectComponent* NXOpen::CAM::InspectionAlignmentBuilder::ComponentSelection ( )

Returns the component selection
Created in NX9.0.0.

License requirements : None

NXOpen::CoordinateSystem* NXOpen::CAM::InspectionAlignmentBuilder::CsysPick ( )

Returns the csys pick
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::FailGroupName ( )

Returns the fail group name
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionAlignmentBuilder::IterAvailSelect ( )

Returns the iter avail select
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::IterConvergeVar ( )

Returns the iter converge variable
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionAlignmentBuilder::IterDev ( )

Returns the iter deviation
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::IterDevTypes NXOpen::CAM::InspectionAlignmentBuilder::IterDevType ( )

Returns the iter deviation type
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::IterGroupName ( )

Returns the iter group name
Created in NX7.0.0.

License requirements : None

int NXOpen::CAM::InspectionAlignmentBuilder::IterMax ( )

Returns the iter max iterations
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionAlignmentBuilder::LocateAvailSelect ( )

Returns the locate avail select
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::LocateXrot ( )

Returns the locate xrot
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::LocateXtrans ( )

Returns the locate xtrans
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::LocateYrot ( )

Returns the locate yrot
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::LocateYtrans ( )

Returns the locate ytrans
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::LocateZrot ( )

Returns the locate zrot
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::LocateZtrans ( )

Returns the locate ztrans
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::PcsName ( )

Returns the pcs name
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::PriDatLetter ( )

Returns the pri dat letter
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections NXOpen::CAM::InspectionAlignmentBuilder::PriDirection ( )

Returns the pri direction
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::PriXorigin ( )

Returns the pri xorigin
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::PriYorigin ( )

Returns the pri yorigin
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::PriZorigin ( )

Returns the pri zorigin
Created in NX7.0.0.

License requirements : None

NXOpen::CoordinateSystem* NXOpen::CAM::InspectionAlignmentBuilder::RecallCsys ( )

Returns the recall csys
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::RecallDid ( )

Returns the recall device id
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::RecallExtName ( )

Returns the recall external name
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::RecallIntName ( )

Returns the recall internal name
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::RecallStates NXOpen::CAM::InspectionAlignmentBuilder::RecallState ( )

Returns the recall state
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionAlignmentBuilder::RotateTableAngle ( )

Returns the angle to rotate table
Created in NX7.5.2.

License requirements : None

double NXOpen::CAM::InspectionAlignmentBuilder::RotateTableAngularDeviation ( )

Returns the rotate table angular deviation
Created in NX7.5.2.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::RotateTableDirections NXOpen::CAM::InspectionAlignmentBuilder::RotateTableDirection ( )

Returns the rotate table direction
Created in NX7.5.2.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::RotateTableFeature ( )

Returns the feature used to position table
Created in NX7.5.2.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionAlignmentBuilder::RotateTableFeatureSelect ( )

Returns the feature selected to position table
Created in NX7.5.2.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::RotateTableMethods NXOpen::CAM::InspectionAlignmentBuilder::RotateTableMethod ( )

Returns the rotate table method
Created in NX7.5.2.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::RotateTableName ( )

Returns the name of rotary table to rotate
Created in NX7.5.2.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::RotateTablePcsUpdateOptions NXOpen::CAM::InspectionAlignmentBuilder::RotateTablePcsUpdateOption ( )

Returns the rotate table pcs update
Created in NX7.5.2.

License requirements : None

double NXOpen::CAM::InspectionAlignmentBuilder::RotationAngle ( )

Returns the rot angle
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::RotationAxisOptions NXOpen::CAM::InspectionAlignmentBuilder::RotationAxis ( )

Returns the rot axis
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::RotationDatumLetter ( )

Returns the rot datum letter
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::RotationDirections NXOpen::CAM::InspectionAlignmentBuilder::RotationDirection ( )

Returns the rot dir
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::RotationFeature ( )

Returns the rot feature
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionAlignmentBuilder::RotationFeatureSelect ( )

Returns the rot feature select
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::RotationMethods NXOpen::CAM::InspectionAlignmentBuilder::RotationMethod ( )

Returns the rot method
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::SaveDid ( )

Returns the save device id
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::SavePcsLabel ( )

Returns the save pcs label
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::SaveStates NXOpen::CAM::InspectionAlignmentBuilder::SaveState ( )

Returns the save state
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionAlignmentBuilder::SecDatLetter ( )

Returns the sec dat letter
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionAlignmentBuilder::AlignmentDirections NXOpen::CAM::InspectionAlignmentBuilder::SecDirection ( )

Returns the sec direction
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::SecXorigin ( )

Returns the sec xorigin
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::SecYorigin ( )

Returns the sec yorigin
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionAlignmentBuilder::SecZorigin ( )

Returns the sec zorigin
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionAlignmentBuilder::SetAlignOpName ( const NXString & alignOpName )

Sets the align op name
Created in NX7.0.0.
