NXOpen::CAM::FormToolBuilder Class Reference

Represents a Form tool builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateFormToolBuilder

Created in NX5.0.0. More...

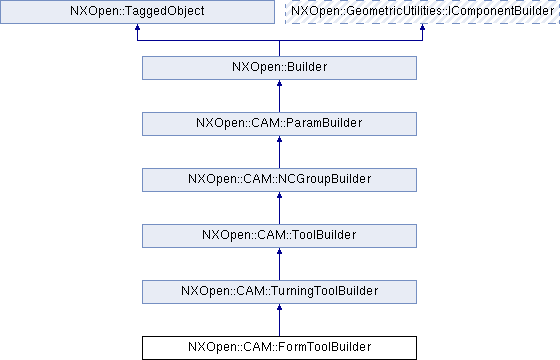

Inheritance diagram for NXOpen::CAM::FormToolBuilder:
NXOpen::CAM::TurningToolBuilder NXOpen::CAM::ToolBuilder NXOpen::CAM::NCGroupBuilder NXOpen::CAM::ParamBuilder NXOpen::Builder NXOpen::TaggedObject NXOpen::GeometricUtilities::IComponentBuilder

Public Member Functions

NXOpen::CAM::FormEdgesBuilder * FormEdges ()
 Returns the Form Edges Builder
Created in NX6.0.0.

- Public Member Functions inherited from NXOpen::CAM::TurningToolBuilder
NXOpen::CAM::InheritableDoubleBuilder * HolderAngleBuilder ()
 Returns the holder angle builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * HolderLengthBuilder ()
 Returns the turn holder length builder (inheritable double)
Created in NX5.0.0.

bool HolderLock ()
 Returns the lock turn holder toggle
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * HolderShankLineBuilder ()
 Returns the turn holder shank line builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::TurningToolBuilder::HolderShankTypes HolderShankType ()
 Returns the turn holder shank type
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * HolderShankWidthBuilder ()
 Returns the turn holder shank width builder (inheritable double)
Created in NX5.0.0.

bool HolderUse ()
 Returns the use turn holder toggle
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * HolderWidthBuilder ()
 Returns the turn holder width builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * InsertLengthBuilder ()
 Returns the insert length builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::TurningToolBuilder::InsertPositions InsertPosition ()
 Returns the insert position
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * InsertWidthBuilder ()
 Returns the insert width builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * LeftAngleBuilder ()
 Returns the left angle builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::ManageToolPartBuilder * ManageToolPartBuilder ()
 Returns the manage tool part builder
Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder * MaxDepthBuilder ()
 Returns the max.

bool MaxDepthToggle ()
 Returns the max.

NXOpen::CAM::InheritableDoubleBuilder * MaxFacingDiameterBuilder ()
 Returns the max.

bool MaxFacingDiameterToggle ()
 Returns the max.

NXOpen::CAM::InheritableDoubleBuilder * MaxToolReachBuilder ()
 Returns the max.

bool MaxToolReachToggle ()
 Returns the max.

NXOpen::CAM::NCGroup * McsSpindleGroup ()
 Returns the MCS spindle group
Created in NX7.5.0.

NXOpen::CAM::InheritableDoubleBuilder * MinBoringDiameterBuilder ()
 Returns the min.

bool MinBoringDiameterToggle ()
 Returns the min.

NXOpen::CAM::InheritableDoubleBuilder * MinFacingDiameterBuilder ()
 Returns the min.

bool MinFacingDiameterToggle ()
 Returns the min.

NXOpen::CAM::InheritableDoubleBuilder * NoseRadiusBuilder ()
 Returns the nose radius builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * NoseWidthBuilder ()
 Returns the nose width builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * OrientAngleBuilder ()
 Returns the orient angle builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * RightAngleBuilder ()
 Returns the right angle builder (inheritable double)
Created in NX5.0.0.

void SetHolderLock (bool holderLock)
 Sets the lock turn holder toggle
Created in NX5.0.0.

void SetHolderShankType (NXOpen::CAM::TurningToolBuilder::HolderShankTypes holderShankType)
 Sets the turn holder shank type
Created in NX5.0.0.

void SetHolderUse (bool holderUse)
 Sets the use turn holder toggle
Created in NX5.0.0.

void SetInsertPosition (NXOpen::CAM::TurningToolBuilder::InsertPositions insertPosition)
 Sets the insert position
Created in NX5.0.0.

void SetMaxDepthToggle (bool maxDepthToggle)
 Sets the max.

void SetMaxFacingDiameterToggle (bool maxFacingDiameterToggle)
 Sets the max.

void SetMaxToolReachToggle (bool maxToolReachToggle)
 Sets the max.

void SetMcsSpindleGroup (NXOpen::CAM::NCGroup *mcsSpindleGroup)
 Sets the MCS spindle group
Created in NX7.5.0.

void SetMinBoringDiameterToggle (bool minBoringDiameterToggle)
 Sets the min.

void SetMinFacingDiameterToggle (bool minFacingDiameterToggle)
 Sets the min.

NXOpen::CAM::InheritableDoubleBuilder * ThicknessBuilder ()
 Returns the thickness builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::TrackingBuilder * TrackingBuilder ()
 Returns the tracking point builder
Created in NX5.0.1.

NXOpen::CAM::InheritableDoubleBuilder * XMountBuilder ()
 Returns the x mount builder (inheritable double)
Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder * YMountBuilder ()
 Returns the y mount builder (inheritable double)
Created in NX5.0.0.

- Public Member Functions inherited from NXOpen::CAM::ToolBuilder
NXString ChannelName ()
 Returns the channel's name
Created in NX7.5.0.

NXString GetMaterial ()
 Get tool material.

void GetMaterialData (NXString *libRef, NXString *name, NXString *description, NXString *code)
 Get material data
Created in NX8.0.2.

NXString HolderDescription ()
 Returns the holder description
Created in NX7.5.1.

NXString HolderLibraryReference ()
 Returns the holder libref
Created in NX7.5.1.

NXOpen::CAM::Ude * LibraryParametersBuilder ()
 Returns the Library Data Object
Created in NX9.0.0.

void SetChannelName (const NXString &name)
 Sets the channel's name
Created in NX7.5.0.

void SetChannelName (const char *name)
 Sets the channel's name
Created in NX7.5.0.

void SetHolderDescription (const NXString &holderDescriptionValue)
 Sets the holder description
Created in NX7.5.1.

void SetHolderDescription (const char *holderDescriptionValue)
 Sets the holder description
Created in NX7.5.1.

void SetHolderLibraryReference (const NXString &holderLibrefValue)
 Sets the holder libref
Created in NX7.5.1.

void SetHolderLibraryReference (const char *holderLibrefValue)
 Sets the holder libref
Created in NX7.5.1.

void SetMaterial (const NXString &libRef)
 Set tool material
Created in NX8.0.1.

void SetMaterial (const char *libRef)
 Set tool material
Created in NX8.0.1.

void SetTlCtlgNum (const NXString &tlCtlgNumValue)
 Sets the Catalog Number
Created in NX5.0.0.

void SetTlCtlgNum (const char *tlCtlgNumValue)
 Sets the Catalog Number
Created in NX5.0.0.

void SetTlDescription (const NXString &tlDescriptionValue)
 Sets the Cutter Description
Created in NX5.0.0.

void SetTlDescription (const char *tlDescriptionValue)
 Sets the Cutter Description
Created in NX5.0.0.

void SetTlLibref (const NXString &tlLibRef)
 Sets the Cutter Libref
Created in NX5.0.0.

void SetTlLibref (const char *tlLibRef)
 Sets the Cutter Libref
Created in NX5.0.0.

void SetTlManualToolChange (bool tlManualToolChangeValue)
 Sets the Manual Tool Change
Created in NX5.0.0.

void SetTlText (const NXString &tlText)
 Sets the tool text
Created in NX5.0.0.

void SetTlText (const char *tlText)
 Sets the tool text
Created in NX5.0.0.

NXString TlCtlgNum ()
 Returns the Catalog Number
Created in NX5.0.0.

NXString TlDescription ()
 Returns the Cutter Description
Created in NX5.0.0.

NXOpen::CAM::InheritableIntBuilder * TlHolderNumberBuilder ()
 Returns the Holder Number
Created in NX5.0.0.

NXString TlLibref ()
 Returns the Cutter Libref
Created in NX5.0.0.

bool TlManualToolChange ()
 Returns the Manual Tool Change
Created in NX5.0.0.

NXOpen::CAM::InheritableIntBuilder * TlNumberBuilder ()
 Returns the Tool Number
Created in NX5.0.0.

NXString TlText ()
 Returns the tool text
Created in NX5.0.0.

- Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString Description ()
 Returns the description
Created in NX9.0.0.

NXOpen::CAM::UdeSet * EndUdeSet ()
 Returns the end ude set
Created in NX7.5.0.

void SetDescription (const NXString &description)
 Sets the description
Created in NX9.0.0.

void SetDescription (const char *description)
 Sets the description
Created in NX9.0.0.

NXOpen::CAM::UdeSet * StartUdeSet ()
 Returns the start ude set
Created in NX7.5.0.

- Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude * CycleEvent ()
 Returns the cycle event
Created in NX7.5.0.

NXOpen::CAM::Cycle * CycleTable ()
 Returns the cycle
Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes OptimizationMethod ()
 Returns the optim method
Created in NX5.0.0.

void SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
 Sets the optim method
Created in NX5.0.0.

- Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject * Commit ()
 Commits any edits that have been applied to the builder.

void Destroy ()
 Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * > GetCommittedObjects ()
 For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject * GetObject ()
 Returns the object currently being edited by this builder.

void ShowResults ()
 Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool Validate ()
 Validate whether the inputs to the component are sufficient for commit to be called.

- Public Member Functions inherited from NXOpen::TaggedObject
tag_t GetTag () const

<b>Deprecated</b>:<br>

   Use Tag instead.


tag_t Tag () const
 Returns the tag of this object.


Additional Inherited Members

- Public Types inherited from NXOpen::CAM::TurningToolBuilder
enum  HolderShankTypes { HolderShankTypesSquare, HolderShankTypesRound }
 the available turn holder shank types More...

enum  InsertPositions { InsertPositionsTopside, InsertPositionsUnderside }
 the available insert positions More...


Detailed Description

Represents a Form tool builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateFormToolBuilder

Created in NX5.0.0.


Member Function Documentation

NXOpen::CAM::FormEdgesBuilder* NXOpen::CAM::FormToolBuilder::FormEdges ( )

Returns the Form Edges Builder
Created in NX6.0.0.



License requirements : None

The documentation for this class was generated from the following file:
