Represents a drill thread mill Tool Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillThreadMillToolBuilder

Created in NX5.0.0. More...

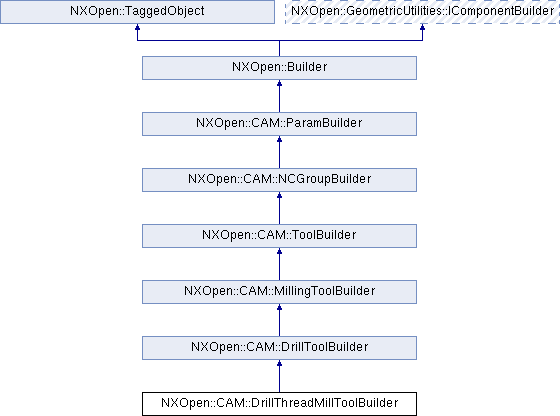

Inheritance diagram for NXOpen::CAM::DrillThreadMillToolBuilder:

Public Member Functions
NXString	FormName ()
	Returns the Form Name Created in NX7.5.0.

void	SetFormName (const NXString &formName)
	Sets the Form Name Created in NX7.5.0.

void	SetFormName (const char *formName)
	Sets the Form Name Created in NX7.5.0.

void	SetTlFormType (NXOpen::CAM::DrillThreadMillToolBuilder::ToolFormTypeTypes tlFormType)
	Sets the form type Created in NX5.0.0.

NXOpen::CAM::DrillThreadMillToolBuilder::ToolFormTypeTypes	TlFormType ()
	Returns the form type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::DrillToolBuilder
void	SetTlCoolantThro (bool tlCoolantThroValue)
	Sets the coolant through Created in NX5.0.0.

void	SetTlDesignation (const NXString &tlDesignation)
	Sets the Designation Created in NX5.0.0.

void	SetTlDesignation (const char *tlDesignation)
	Sets the Designation Created in NX5.0.0.

bool	TlCoolantThro ()
	Returns the coolant through Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlCor1RadBuilder ()
	Returns the Corner Radius builder (inheritable double) Created in NX5.0.0.

NXString	TlDesignation ()
	Returns the Designation Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlIncludedAngBuilder ()
	Returns the Included Angle builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlPilotDiaBuilder ()
	Returns the pilot diameter builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlPilotLengthBuilder ()
	Returns the pilot length builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlPitchBuilder ()
	Returns the Pitch builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlPointAngBuilder ()
	Returns the Point Angle builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlPointLengthBuilder ()
	Returns the Point Length builder (inheritable double) Created in NX9.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlTaperDiaDistBuilder ()
	Returns the Taper Diameter Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlTipDiameterBuilder ()
	Returns the Tip Diameter builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlTipLengthBuilder ()
	Returns the Tip Length builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlXOffsetBuilder ()
	Returns the X Offset builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlYzOffsetBuilder ()
	Returns the YZ Offset builder (inheritable double) Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::MillingToolBuilder
bool	CoolantThrough ()
	Returns the coolant through parameter Created in NX7.5.0.

NXOpen::CAM::InheritableToolDepBuilder *	HelicalDiameter ()
	Returns the helical diameter Created in NX8.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HelicalRampAngle ()
	Returns the ramp angle Created in NX8.0.0.

NXOpen::CAM::HolderSectionBuilder *	HolderSectionBuilder ()
	Returns the holder sections builder Created in NX5.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	MaxCutWidth ()
	Returns the max cut width Created in NX8.0.0.

NXOpen::CAM::MillingTrackpointBuilder *	MillingTrackpointBuilder ()
	Returns the mill trackpoint builder Created in NX6.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	MinRampLength ()
	Returns the min ramp length Created in NX8.0.0.

void	SetCoolantThrough (bool coolantThrough)
	Sets the coolant through parameter Created in NX7.5.0.

void	SetTlCutcomReg (int tlCutcomRegValue)
	Sets the Cutcom Register Created in NX5.0.0.

void	SetTlDirection (NXOpen::CAM::MillingToolBuilder::ToolDirectionTypes tlDirection)
	Sets the tool direction Created in NX5.0.0.

void	SetTlHolderDescription (const NXString &tlHolderDescriptionValue)
	Sets the Holder Description Created in NX5.0.0.

void	SetTlHolderDescription (const char *tlHolderDescriptionValue)
	Sets the Holder Description Created in NX5.0.0.

void	SetTlHolderLibref (const NXString &tlHolderLibrefValue)
	Sets the Holder Library Reference Created in NX5.0.0.

void	SetTlHolderLibref (const char *tlHolderLibrefValue)
	Sets the Holder Library Reference Created in NX5.0.0.

void	SetUseTaperedShank (bool useTaperedShank)
	Sets the use tapered shank Created in NX8.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TaperedShankDiameterBuilder ()
	Returns the tapered shank diameter Created in NX8.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TaperedShankLengthBuilder ()
	Returns the tapered shank length Created in NX8.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TaperedShankTaperLengthBuilder ()
	Returns the tapered shank taper length Created in NX8.0.0.

NXOpen::CAM::InheritableIntBuilder *	TlAdjRegBuilder ()
	Returns the Adjust Register Created in NX5.0.0.

int	TlCutcomReg ()
	Returns the Cutcom Register Created in NX5.0.0.

NXOpen::CAM::InheritableIntBuilder *	TlCutcomRegBuilder ()
	Returns the Cutcom Register Builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlDiameterBuilder ()
	Returns the Tool Diameter builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::MillingToolBuilder::ToolDirectionTypes	TlDirection ()
	Returns the tool direction Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlFluteLnBuilder ()
	Returns the flute length Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlHeightBuilder ()
	Returns the length Created in NX5.0.0.

NXString	TlHolderDescription ()
	Returns the Holder Description Created in NX5.0.0.

NXString	TlHolderLibref ()
	Returns the Holder Library Reference Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlLowCorRadBuilder ()
	Returns the low corner radius Created in NX5.0.0.

NXOpen::CAM::InheritableIntBuilder *	TlNumFlutesBuilder ()
	Returns the Number of Flutes builder (inheritable integer) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlShankDiaBuilder ()
	Returns the Shank Diameter builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlTaperAngBuilder ()
	Returns the Taper Angle builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlUpCorRadBuilder ()
	Returns the up corner radius Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlZMountBuilder ()
	Returns the Z Mount builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	TlZOffsetBuilder ()
	Returns the Z Offset builder (inheritable double) Created in NX5.0.0.

bool	UseTaperedShank ()
	Returns the use tapered shank Created in NX8.0.0.

Public Member Functions inherited from NXOpen::CAM::ToolBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	GetMaterial ()
	Get tool material.

void	GetMaterialData (NXString libRef, NXString name, NXString description, NXString code)
	Get material data Created in NX8.0.2.

NXString	HolderDescription ()
	Returns the holder description Created in NX7.5.1.

NXString	HolderLibraryReference ()
	Returns the holder libref Created in NX7.5.1.

NXOpen::CAM::Ude *	LibraryParametersBuilder ()
	Returns the Library Data Object Created in NX9.0.0.

void	SetChannelName (const NXString &name)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *name)
	Sets the channel's name Created in NX7.5.0.

void	SetHolderDescription (const NXString &holderDescriptionValue)
	Sets the holder description Created in NX7.5.1.

void	SetHolderDescription (const char *holderDescriptionValue)
	Sets the holder description Created in NX7.5.1.

void	SetHolderLibraryReference (const NXString &holderLibrefValue)
	Sets the holder libref Created in NX7.5.1.

void	SetHolderLibraryReference (const char *holderLibrefValue)
	Sets the holder libref Created in NX7.5.1.

void	SetMaterial (const NXString &libRef)
	Set tool material Created in NX8.0.1.

void	SetMaterial (const char *libRef)
	Set tool material Created in NX8.0.1.

void	SetTlCtlgNum (const NXString &tlCtlgNumValue)
	Sets the Catalog Number Created in NX5.0.0.

void	SetTlCtlgNum (const char *tlCtlgNumValue)
	Sets the Catalog Number Created in NX5.0.0.

void	SetTlDescription (const NXString &tlDescriptionValue)
	Sets the Cutter Description Created in NX5.0.0.

void	SetTlDescription (const char *tlDescriptionValue)
	Sets the Cutter Description Created in NX5.0.0.

void	SetTlLibref (const NXString &tlLibRef)
	Sets the Cutter Libref Created in NX5.0.0.

void	SetTlLibref (const char *tlLibRef)
	Sets the Cutter Libref Created in NX5.0.0.

void	SetTlManualToolChange (bool tlManualToolChangeValue)
	Sets the Manual Tool Change Created in NX5.0.0.

void	SetTlText (const NXString &tlText)
	Sets the tool text Created in NX5.0.0.

void	SetTlText (const char *tlText)
	Sets the tool text Created in NX5.0.0.

NXString	TlCtlgNum ()
	Returns the Catalog Number Created in NX5.0.0.

NXString	TlDescription ()
	Returns the Cutter Description Created in NX5.0.0.

NXOpen::CAM::InheritableIntBuilder *	TlHolderNumberBuilder ()
	Returns the Holder Number Created in NX5.0.0.

NXString	TlLibref ()
	Returns the Cutter Libref Created in NX5.0.0.

bool	TlManualToolChange ()
	Returns the Manual Tool Change Created in NX5.0.0.

NXOpen::CAM::InheritableIntBuilder *	TlNumberBuilder ()
	Returns the Tool Number Created in NX5.0.0.

NXString	TlText ()
	Returns the tool text Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a drill thread mill Tool Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillThreadMillToolBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::DrillThreadMillToolBuilder::ToolFormTypeTypes

form type

Enumerator:

ToolFormTypeTypesUnified	Unified.
ToolFormTypeTypesMetric	Metric.
ToolFormTypeTypesTrapezoidal	Trapezoidal.
ToolFormTypeTypesAcme	Acme.
ToolFormTypeTypesStubacme	Stub Acme.
ToolFormTypeTypesLowenherz	Lowenherz.
ToolFormTypeTypesButtress	Buttress.
ToolFormTypeTypesSparkplug	Spark Plug.
ToolFormTypeTypesNpt	NPT.
ToolFormTypeTypesHosecoupling	Hose Coupling.
ToolFormTypeTypesFirehose	Fire Hose.
ToolFormTypeTypesUnj	UNJ.
ToolFormTypeTypesNps	NPS.
ToolFormTypeTypesBsp	BSP.
ToolFormTypeTypesBstp	BSTP.
ToolFormTypeTypesHelicoil	Helicoil.
ToolFormTypeTypesNs	NS.
ToolFormTypeTypesUserDefined	User Defined.

Member Function Documentation

NXString NXOpen::CAM::DrillThreadMillToolBuilder::FormName ( )

Returns the Form Name
Created in NX7.5.0.

License requirements : None

void NXOpen::CAM::DrillThreadMillToolBuilder::SetFormName ( const NXString & formName )

Sets the Form Name
Created in NX7.5.0.

License requirements : None

Parameters

formName the form name

void NXOpen::CAM::DrillThreadMillToolBuilder::SetFormName ( const char * formName )

Sets the Form Name
Created in NX7.5.0.

License requirements : None

Parameters

formName the form name

void NXOpen::CAM::DrillThreadMillToolBuilder::SetTlFormType ( NXOpen::CAM::DrillThreadMillToolBuilder::ToolFormTypeTypes tlFormType )

Sets the form type
Created in NX5.0.0.

License requirements : None

Parameters

tlFormType tlformtype

NXOpen::CAM::DrillThreadMillToolBuilder::ToolFormTypeTypes NXOpen::CAM::DrillThreadMillToolBuilder::TlFormType ( )

Returns the form type
Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_DrillThreadMillToolBuilder.hxx

Public Types
enum	ToolFormTypeTypes { ToolFormTypeTypesUnified, ToolFormTypeTypesMetric, ToolFormTypeTypesTrapezoidal, ToolFormTypeTypesAcme, ToolFormTypeTypesStubacme, ToolFormTypeTypesLowenherz, ToolFormTypeTypesButtress, ToolFormTypeTypesSparkplug, ToolFormTypeTypesNpt, ToolFormTypeTypesHosecoupling, ToolFormTypeTypesFirehose, ToolFormTypeTypesUnj, ToolFormTypeTypesNps, ToolFormTypeTypesBsp, ToolFormTypeTypesBstp, ToolFormTypeTypesHelicoil, ToolFormTypeTypesNs, ToolFormTypeTypesUserDefined }
	form type More...

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
