Represents a Drill Method Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillMethodBuilder
Created in NX5.0.0.
More...

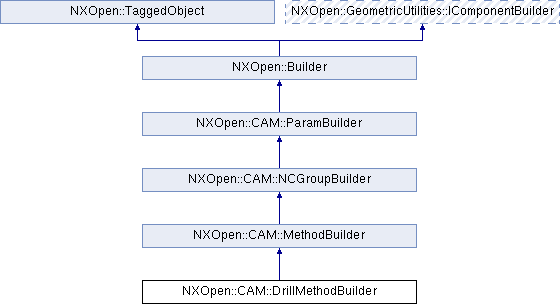

Inheritance diagram for NXOpen::CAM::DrillMethodBuilder:
Public Member Functions | |
| NXOpen::CAM::FeedsBuilder * | FeedsBuilder () |
| Returns the feeds builder Created in NX5.0.0. | |
 Public Member Functions inherited from NXOpen::CAM::MethodBuilder | |
| NXOpen::CAM::CutParameters * | CutParameters () |
| Returns the cut parameter object Created in NX6.0.0. | |
| NXString | GetCutMethod () |
| Get cut method. | |
| NXOpen::CAM::DisplayPaint * | PaintDisplay () |
| Returns the sub builder for paint display Created in NX7.5.0. | |
| NXOpen::CAM::DisplayPath * | PathDisplay () |
| Returns the sub builder for path display Created in NX7.5.0. | |
| NXOpen::CAM::PathDisplayColors * | PathDisplayColors () |
| Returns the sub builder for path display colors Created in NX7.5.0. | |
| void | SetCutMethod (const NXString &libRef) |
| Set cut method Created in NX8.0.1. | |
| void | SetCutMethod (const char *libRef) |
| Set cut method Created in NX8.0.1. | |
| NXOpen::CAM::DisplaySilhouette * | SilhouDisplay () |
| Returns the sub builder for silhou display Created in NX7.5.0. | |
| NXOpen::CAM::DisplayTool * | ToolDisplay () |
| Returns the sub builder for tool display Created in NX7.5.0. | |
| Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder | |
| NXString | Description () |
| Returns the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | EndUdeSet () |
| Returns the end ude set Created in NX7.5.0. | |
| void | SetDescription (const NXString &description) |
| Sets the description Created in NX9.0.0. | |
| void | SetDescription (const char *description) |
| Sets the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | StartUdeSet () |
| Returns the start ude set Created in NX7.5.0. | |
| Public Member Functions inherited from NXOpen::CAM::ParamBuilder | |
| NXOpen::CAM::Ude * | CycleEvent () |
| Returns the cycle event Created in NX7.5.0. | |
| NXOpen::CAM::Cycle * | CycleTable () |
| Returns the cycle Created in NX9.0.0. | |
| NXOpen::CAM::ParamBuilder::OptimizationTypes | OptimizationMethod () |
| Returns the optim method Created in NX5.0.0. | |
| void | SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod) |
| Sets the optim method Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::CAM::ParamBuilder | |
| enum | OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand } |
| Available types for Optimization Method in operation. More... | |
Detailed Description
Represents a Drill Method Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillMethodBuilder
Created in NX5.0.0.
Member Function Documentation
| NXOpen::CAM::FeedsBuilder* NXOpen::CAM::DrillMethodBuilder::FeedsBuilder | ( | ) |
Returns the feeds builder
Created in NX5.0.0.
License requirements : cam_base ("CAM BASE")
The documentation for this class was generated from the following file:
- CAM_DrillMethodBuilder.hxx
