Represents a CylinderMillingBuilder Builder
To create a new instance of this class, use CAM::OperationCollection::CreateCylinderMillingBuilder

Created in NX8.0.0. More...

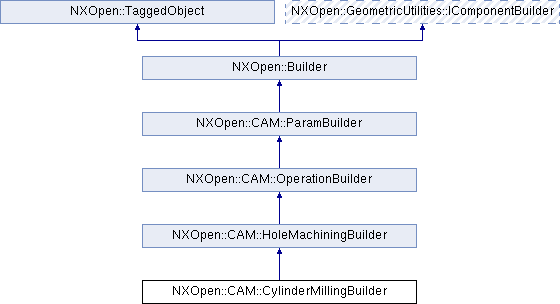

Inheritance diagram for NXOpen::CAM::CylinderMillingBuilder:

Public Types
enum	BlankDiameterTypes { BlankDiameterTypesDiameter, BlankDiameterTypesDistance }
	blank diamter options Created in NX8.0.0. More...

enum	CutPatternTypes { CutPatternTypesSpiral, CutPatternTypesHelical, CutPatternTypesHelicalAndSpiral }
	cut pattern options Created in NX8.0.0. More...

enum	DepthPerRevolutionTypes { DepthPerRevolutionTypesDistance, DepthPerRevolutionTypesRampAngle }
	Depth Per Revolution options Created in NX8.0.0. More...

enum	DiameterForHelixTypes { DiameterForHelixTypesDiameter, DiameterForHelixTypesSpiralThickness, DiameterForHelixTypesOffsetFromStartDiameter }
	Diameter for Helix Created in NX8.0.0. More...

Public Member Functions
NXOpen::CAM::InheritableToolDepBuilder *	AxialDistance ()
	Returns the distance builder for Depth per Revolution Created in NX8.0.0.

NXOpen::CAM::StepoverBuilder *	AxialStepover ()
	Returns the Axial Stepover builder Created in NX8.0.0.

NXOpen::CAM::CylinderMillingBuilder::BlankDiameterTypes	BlankDiameter ()
	Returns the start location Created in NX8.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	BlankDistance ()
	Returns the Wall Thickness Created in NX8.0.0.

bool	CleanupPasses ()
	Returns the Cleanup Passes Created in NX8.0.0.

NXOpen::CAM::CylinderMillingCutParameters *	CutParameters ()
	Returns the Cylinder Milling Cut Parameters Created in NX8.0.0.

NXOpen::CAM::CylinderMillingBuilder::CutPatternTypes	CutPattern ()
	Returns the cut pattern Created in NX8.0.0.

NXOpen::CAM::CylinderMillingBuilder::DepthPerRevolutionTypes	DepthPerRevolution ()
	Returns the Depth per Revolution Created in NX8.0.0.

NXOpen::CAM::CylinderMillingBuilder::DiameterForHelixTypes	DiameterForHelix ()
	Returns the Diameter for Helix Created in NX8.0.0.

NXOpen::CAM::FeedsBuilder *	FeedsBuilder ()
	Returns the feeds and speeds builder Created in NX8.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	HelixDiameter ()
	Returns the Helix Diamter Created in NX8.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	MinimumHelixDiameter ()
	Returns the Minimum Helix Diameter Created in NX8.0.0.

NXOpen::CAM::NcmHoleMachining *	NonCuttingBuilder ()
	Returns the non-cutting moves builder Created in NX8.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	OffsetFromStartDiameter ()
	Returns the Offset from Start Diameter Created in NX9.0.0.

bool	OppositeDirection ()
	Returns the opposite direction Created in NX8.0.0.

NXOpen::CAM::OppositeDirection *	OppositeDirectionBuilder ()
	Returns the opposite direction builder

NXOpen::CAM::StepoverBuilder *	RadialStepover ()
	Returns the Radial Stepover builder Created in NX8.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RampAngle ()
	Returns the Ramp Angle Created in NX8.0.0.

void	SetBlankDiameter (NXOpen::CAM::CylinderMillingBuilder::BlankDiameterTypes newValue)
	Sets the start location Created in NX8.0.0.

void	SetCleanupPasses (bool newValue)
	Sets the Cleanup Passes Created in NX8.0.0.

void	SetCutPattern (NXOpen::CAM::CylinderMillingBuilder::CutPatternTypes newValue)
	Sets the cut pattern Created in NX8.0.0.

void	SetDepthPerRevolution (NXOpen::CAM::CylinderMillingBuilder::DepthPerRevolutionTypes newValue)
	Sets the Depth per Revolution Created in NX8.0.0.

void	SetDiameterForHelix (NXOpen::CAM::CylinderMillingBuilder::DiameterForHelixTypes newValue)
	Sets the Diameter for Helix Created in NX8.0.0.

void	SetOppositeDirection (bool newValue)
	Sets the opposite direction Created in NX8.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	SpiralThickness ()
	Returns the Spiral Thickness Created in NX8.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	StartDiameter ()
	Returns the Start Diameter Created in NX8.0.0.

Public Member Functions inherited from NXOpen::CAM::HoleMachiningBuilder
bool	CollisionCheck ()
	Returns the collision check for cutting Created in NX9.0.0.

void	SetCollisionCheck (bool newValue)
	Sets the collision check for cutting Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CylinderMillingBuilder Builder
To create a new instance of this class, use CAM::OperationCollection::CreateCylinderMillingBuilder

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::CylinderMillingBuilder::BlankDiameterTypes

blank diamter options
Created in NX8.0.0.

Enumerator:

BlankDiameterTypesDiameter	Diameter.
BlankDiameterTypesDistance	distance

enum NXOpen::CAM::CylinderMillingBuilder::CutPatternTypes

cut pattern options
Created in NX8.0.0.

Enumerator:

CutPatternTypesSpiral	Spiral.
CutPatternTypesHelical	Helical.
CutPatternTypesHelicalAndSpiral	Helical/Spiral.

enum NXOpen::CAM::CylinderMillingBuilder::DepthPerRevolutionTypes

Depth Per Revolution options
Created in NX8.0.0.

Enumerator:

DepthPerRevolutionTypesDistance	Distance.
DepthPerRevolutionTypesRampAngle	Ramp Angle.

enum NXOpen::CAM::CylinderMillingBuilder::DiameterForHelixTypes

Diameter for Helix
Created in NX8.0.0.

Enumerator:

DiameterForHelixTypesDiameter	Helix Diameter.
DiameterForHelixTypesSpiralThickness	Spiral Thickness.
DiameterForHelixTypesOffsetFromStartDiameter	Offset from Start Diameter.

Member Function Documentation

NXOpen::CAM::InheritableToolDepBuilder* NXOpen::CAM::CylinderMillingBuilder::AxialDistance ( )

Returns the distance builder for Depth per Revolution
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::StepoverBuilder* NXOpen::CAM::CylinderMillingBuilder::AxialStepover ( )

Returns the Axial Stepover builder
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::CylinderMillingBuilder::BlankDiameterTypes NXOpen::CAM::CylinderMillingBuilder::BlankDiameter ( )

Returns the start location
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::InheritableToolDepBuilder* NXOpen::CAM::CylinderMillingBuilder::BlankDistance ( )

Returns the Wall Thickness
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAM::CylinderMillingBuilder::CleanupPasses ( )

Returns the Cleanup Passes
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::CylinderMillingCutParameters* NXOpen::CAM::CylinderMillingBuilder::CutParameters ( )

Returns the Cylinder Milling Cut Parameters
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::CylinderMillingBuilder::CutPatternTypes NXOpen::CAM::CylinderMillingBuilder::CutPattern ( )

Returns the cut pattern
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::CylinderMillingBuilder::DepthPerRevolutionTypes NXOpen::CAM::CylinderMillingBuilder::DepthPerRevolution ( )

Returns the Depth per Revolution
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::CylinderMillingBuilder::DiameterForHelixTypes NXOpen::CAM::CylinderMillingBuilder::DiameterForHelix ( )

Returns the Diameter for Helix
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::FeedsBuilder* NXOpen::CAM::CylinderMillingBuilder::FeedsBuilder ( )

Returns the feeds and speeds builder
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::InheritableToolDepBuilder* NXOpen::CAM::CylinderMillingBuilder::HelixDiameter ( )

Returns the Helix Diamter
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::InheritableToolDepBuilder* NXOpen::CAM::CylinderMillingBuilder::MinimumHelixDiameter ( )

Returns the Minimum Helix Diameter
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::NcmHoleMachining* NXOpen::CAM::CylinderMillingBuilder::NonCuttingBuilder ( )

Returns the non-cutting moves builder
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::InheritableToolDepBuilder* NXOpen::CAM::CylinderMillingBuilder::OffsetFromStartDiameter ( )

Returns the Offset from Start Diameter
Created in NX9.0.0.

License requirements : None

bool NXOpen::CAM::CylinderMillingBuilder::OppositeDirection ( )

Returns the opposite direction
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::OppositeDirection* NXOpen::CAM::CylinderMillingBuilder::OppositeDirectionBuilder ( )

Returns the opposite direction builder

Deprecated:: Deprecated in NX9.0.0.

Change the Z-axis of the in process feature instead.

Created in NX8.5.0.

License requirements : None

NXOpen::CAM::StepoverBuilder* NXOpen::CAM::CylinderMillingBuilder::RadialStepover ( )

Returns the Radial Stepover builder
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::CylinderMillingBuilder::RampAngle ( )

Returns the Ramp Angle
Created in NX8.0.0.

License requirements : None

void NXOpen::CAM::CylinderMillingBuilder::SetBlankDiameter ( NXOpen::CAM::CylinderMillingBuilder::BlankDiameterTypes newValue )

Sets the start location
Created in NX8.0.0.
