NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 > Class Template Reference

Template class for callbacks with four input arguments. More...

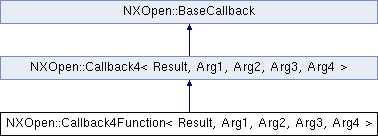

Inheritance diagram for NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 >:

Public Types
typedef Result(*	FunctionType )(Arg1, Arg2, Arg3, Arg4)
	Function signature for callback function attached to this template callback class.
typedef Callback4Function < Result, Arg1, Arg2, Arg3, Arg4 >	MyClass
	Template typedef of class signature.
Public Types inherited from NXOpen::Callback4< Result, Arg1, Arg2, Arg3, Arg4 >
typedef Arg1	Arg1Type
	Type of first input argument of callback function.
typedef Arg2	Arg2Type
	Type of second input argument of callback function.
typedef Arg3	Arg3Type
	Type of third input argument of callback function.
typedef Arg4	Arg4Type
	Type of fourth input argument of callback function.
typedef Result	ResultType
	Return type of callback function.

Public Member Functions
	Callback4Function (FunctionType fn)
	Constructor.
virtual BaseCallback *	Clone () const
	Function interface for clone operation.
virtual bool	Equals (const BaseCallback &other) const
	Function interface for equality operation.
virtual Result	operator() (Arg1 a1, Arg2 a2, Arg3 a3, Arg4 a4) const
	Function call operator function to invoke callback function attached to this Callback4Function instance.

Detailed Description

template<class Result, class Arg1, class Arg2, class Arg3, class Arg4>
class NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 >

Template class for callbacks with four input arguments.

The return type of the callback function is the template type Result.

Member Typedef Documentation

template<class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 >

typedef Result(* NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 >::FunctionType)(Arg1, Arg2, Arg3, Arg4)

Function signature for callback function attached to this template callback class.

template<class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 >

typedef Callback4Function<Result, Arg1, Arg2, Arg3, Arg4> NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 >::MyClass

Template typedef of class signature.

Used to simplify implementation of callback framework methods.

Constructor & Destructor Documentation

template<class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 >

NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 >::Callback4Function

(

FunctionType

fn

)

Constructor.

Member Function Documentation

template<class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 >

virtual BaseCallback* NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 >::Clone ( ) const

virtual

Function interface for clone operation.

Derived classes will define this function to implement a deep copy operation.

Implements NXOpen::BaseCallback.

template<class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 >

virtual bool NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 >::Equals ( const BaseCallback &  other ) const

virtual

Function interface for equality operation.

Implements NXOpen::BaseCallback.

template<class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 >

virtual Result NXOpen::Callback4Function< Result, Arg1, Arg2, Arg3, Arg4 >::operator() ( Arg1  a1, Arg2  a2, Arg3  a3, Arg4  a4  ) const

virtual

Function call operator function to invoke callback function attached to this Callback4Function instance.

Implements NXOpen::Callback4< Result, Arg1, Arg2, Arg3, Arg4 >.

---

The documentation for this class was generated from the following file:

• Callback.hxx
