Represents the base symbol display style. More...

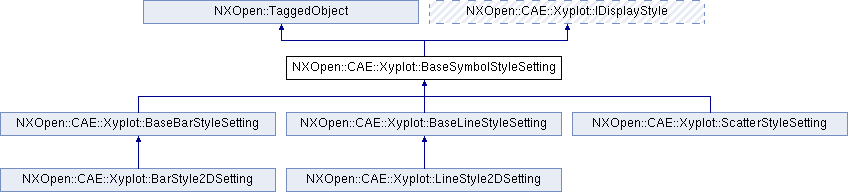

Inheritance diagram for NXOpen::CAE::Xyplot::BaseSymbolStyleSetting:

Public Member Functions
virtual void	CommitChange ()
	Commits any edits that have been applied to the display style.

NXOpen::CAE::Xyplot::PointMarker	PointMarker ()
	Returns the point marker Created in NX9.0.0.

void	SetPointMarker (NXOpen::CAE::Xyplot::PointMarker pointMarker)
	Sets the point marker Created in NX9.0.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the base symbol display style.

Call CAE::Xyplot::IDisplayStyle::CommitChange to apply style changes to corresponding plot after it's modified.
This is an abstract class.

Created in NX9.0.0.

Member Function Documentation

virtual void NXOpen::CAE::Xyplot::BaseSymbolStyleSetting::CommitChange ( )

virtual

Commits any edits that have been applied to the display style.

           Triggers the corresponding plot to update graph.

Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

NXOpen::CAE::Xyplot::PointMarker NXOpen::CAE::Xyplot::BaseSymbolStyleSetting::PointMarker ( )

Returns the point marker
Created in NX9.0.0.

License requirements : None

void NXOpen::CAE::Xyplot::BaseSymbolStyleSetting::SetPointMarker ( NXOpen::CAE::Xyplot::PointMarker pointMarker )

Sets the point marker
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

pointMarker pointmarker
